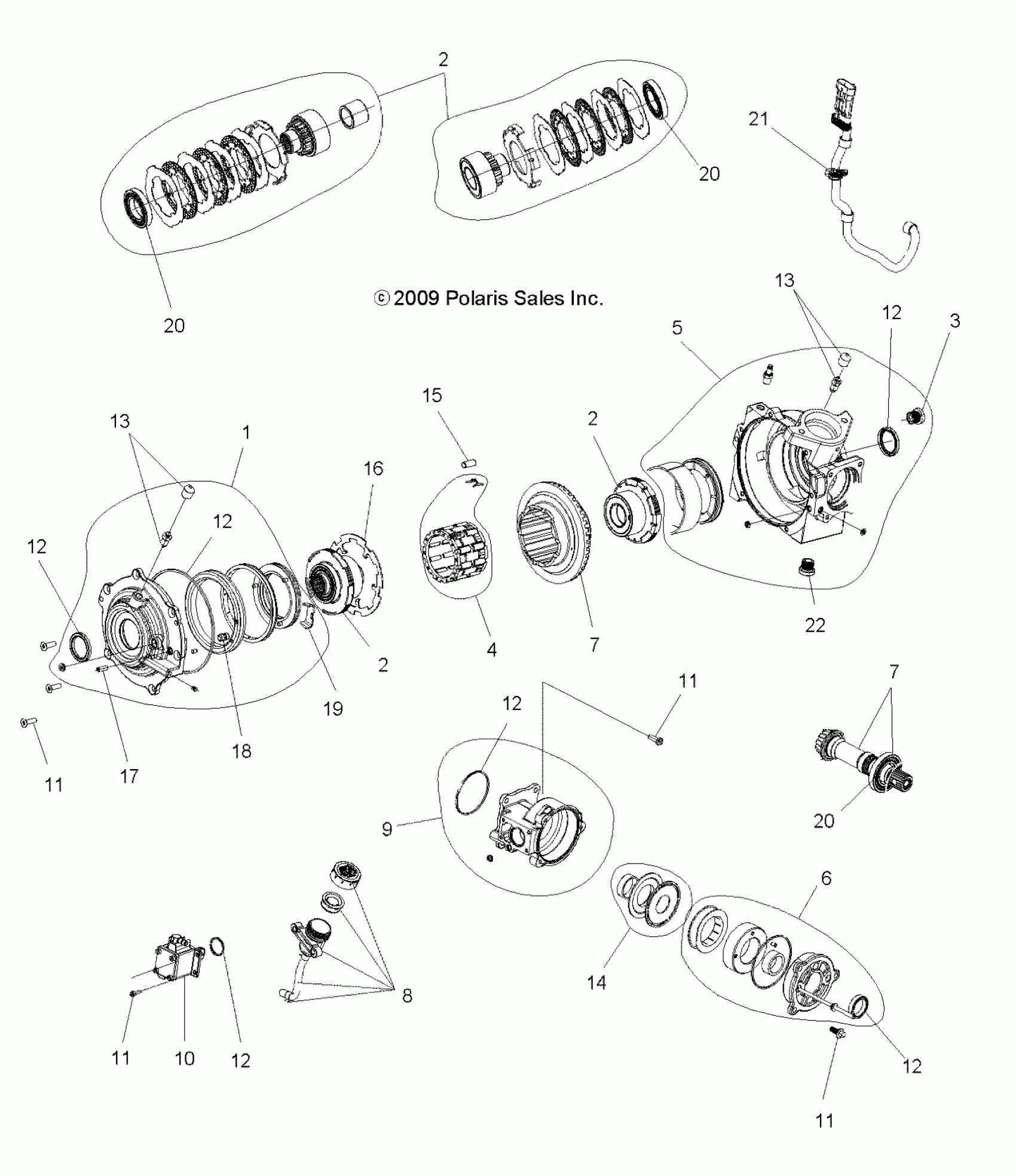

Polaris SPORTSMAN XP EPS 850 - A10ZX85AK/AL/AS/AT/AX DRIVE TRAIN, FRONT GEARCASE INTERNALS (Built 3/05/10 and Before) - A10ZX85AK/AL/AS/AT/AX (49ATVGEARCASE1332828) Diagram

#

Description
Price

-

Kit, Spring

3234908

$114.99

-

Asm., Gearcase, Pinless, ADC

1332828

$2,099.99

1

Asm., Output Cover [Incl. O-Ring, Dowel Pin, Set Screw, Seal, Cover, Bleeder, Thrust Button, Plates, 4WD Coil, Piston, Grommet, Coil Pocket Insert]

3234742

Unavailable

2

Kit, Hub, Output, Male and Female [Incl. Hubs, Disks, Bearings]

3235054

Unavailable

2

Kit, Hub, Output, Male and Female [Incl. Hubs, Disks, Bearings]

3235054

Unavailable

2

Kit, Hub, Output, Male and Female [Incl. Hubs, Disks, Bearings]

3235054

Unavailable

3

KIT-PLUG,FILL

2203739

$44.51

4

Asm., Roll Cage [Incl. Cage, H-Clip Set]

3234466

Unavailable

4

Asm., Roll Cage, Aluminum, NT [Opt]

3235263

$599.03

5

ASM., GEARCASE, ADC [INCL. CASE, PLUGS, VENT, BLEEDER, SEAL, PISTON, BUSHING]

3234747

Unavailable

6

ASM., COVER INPUT [INCL. COVER, BACKDRIVE COIL, SEALS, BEARING, COIL POCKET INSERT]

3234748

$232.74

7

Kit, Gear, Ring and Pinion [Incl. Pinion, Bearing, Ring Gear]

3235055

$582.84

7

Kit, Gear, Ring and Pinion [Incl. Pinion, Bearing, Ring Gear]

3235055

$582.84

8

ASM., RESERVOIR [INCL. BODY, CAP, DIAPHRAGM, HOSE, CLAMP]

3234751

$79.98

9

ASM., NECK [INCL. NECK, O-RING]

3234752

$675.54

10

ASM., PUMP [INCL. COMPLETE PUMP]

3234750

$469.99

11

KIT, FASTENER [INCL. ALL FASTENERS]

3234745

$63.49

11

KIT, FASTENER [INCL. ALL FASTENERS]

3234745

$63.49

11

KIT, FASTENER [INCL. ALL FASTENERS]

3234745

$63.49

11

KIT, FASTENER [INCL. ALL FASTENERS]

3234745

$63.49

12

KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]

3234746

$76.89

12

KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]

3234746

$76.89

12

KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]

3234746

$76.89

12

KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]

3234746

$76.89

12

KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]

3234746

$76.89

12

KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]

3234746

$76.89

13

Kit, Bleeder Valve [Incl. Valve, Cover]

3234431

$36.41

13

Kit, Bleeder Valve [Incl. Valve, Cover]

3234431

$36.41

14

KIT, CAM AND ARMATURE, FWBD [INCL. BUSHING, CAM, ARMATURE PLATE]

3234434

$179.99

15

KIT-ROLLER [INCL. FULL ROLLER SET]

3234393

$5.65

16

PLATE, ARMATURE

3234407

$113.32

17

Screw, Set

2203731

$28.32

18

Button, Thrust

2203732

$32.37

19

Button, Thrust, DC

2203733

$28.32

20

Bearing

3234390

$35.71

20

Bearing

3234390

$35.71

20

Bearing

3234390

$35.71

21

CLIP, STRAIN RELIEF

3234601

Unavailable

22

KIT-PLUG,DRAIN

2203738

$42.74
