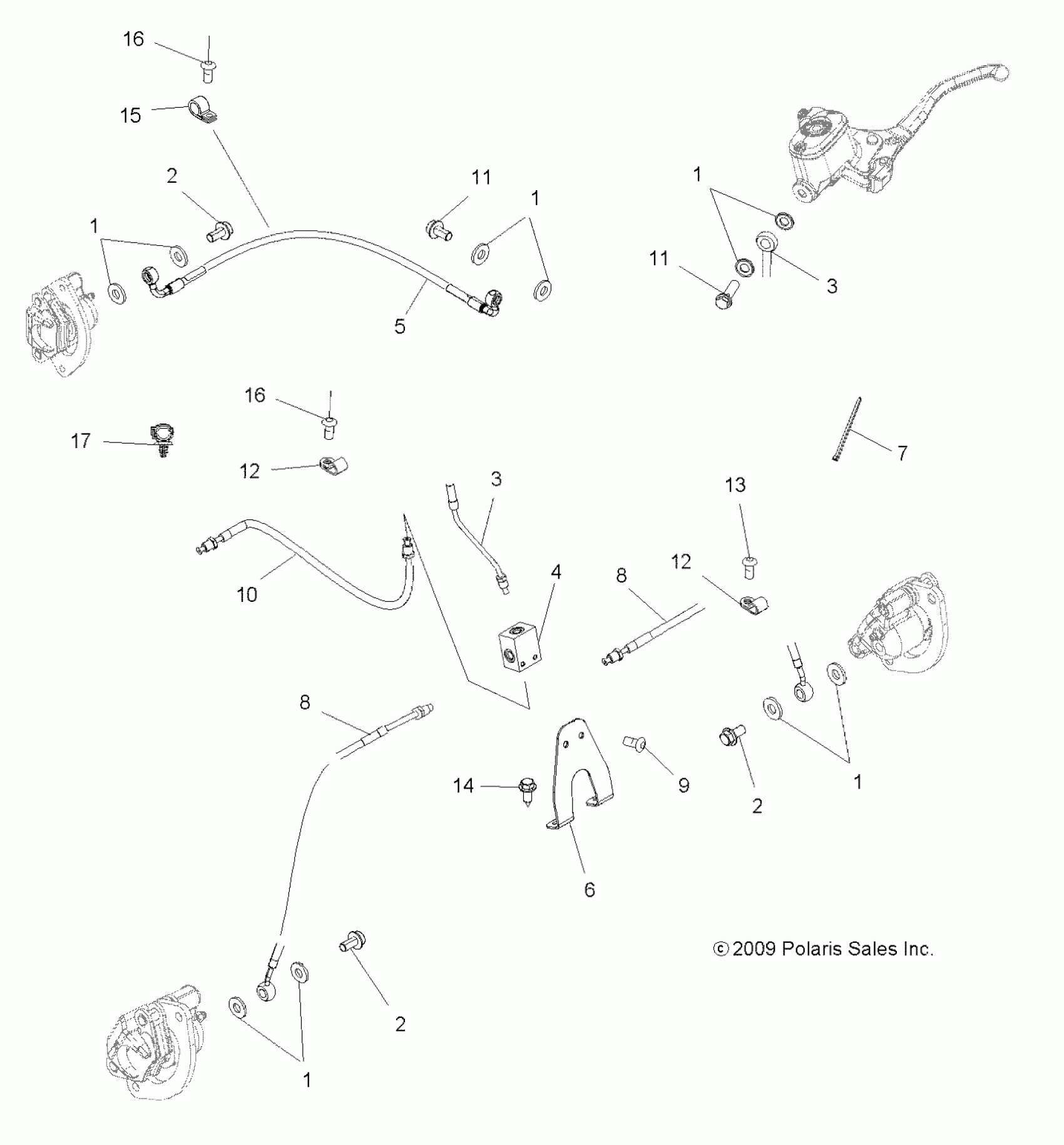

Polaris SPORTSMAN XP EPS 850 - A10ZX85AK/AL/AS/AT/AX BRAKES, BRAKE LINES - A10ZX85AK/AL/AS/AT/AX (49ATVBRAKELINE10SP550) Diagram

#

Description
Price

1

SEAL

5413212

$4.79

1

SEAL

5413212

$4.79

1

SEAL

5413212

$4.79

1

SEAL

5413212

$4.79

1

SEAL

5413212

$4.79

2

BOLT, BANJO

1910499

$5.59

2

BOLT, BANJO

1910499

$5.59

2

BOLT, BANJO

1910499

$5.59

3

LINE, BRAKE, POD TO JB

1911393

$79.99

3

LINE, BRAKE, POD TO JB

1911393

$79.99

4

FITTING, CROSS

7052372

$59.99

5

Line, Brake, Rear

1911561

$125.46

6

BRACKET, JUNCTION BLOCK

5252667

$39.99

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

LINE, BRAKE, FRONT

1911383

$75.99

8

LINE, BRAKE, FRONT

1911383

$75.99

9

SCREW

7512024

$4.79

10

Line, Brake, JB to FT MC

1911384

Unavailable

11

BOLT, BANJO

1910499

$5.59

11

BOLT, BANJO

1910499

$5.59

12

Clamp, Hose

7081472

$3.99

12

Clamp, Hose

7081472

$3.99

13

Screw

7512084

$1.49

14

BOLT

7518513

$4.79

15

CLAMP, HOSE

7080693

$5.59

16

RIVET

7621330

$1.49

16

RIVET

7621330

$1.49

17

CLIP, ROUTING

7670116

$5.59
