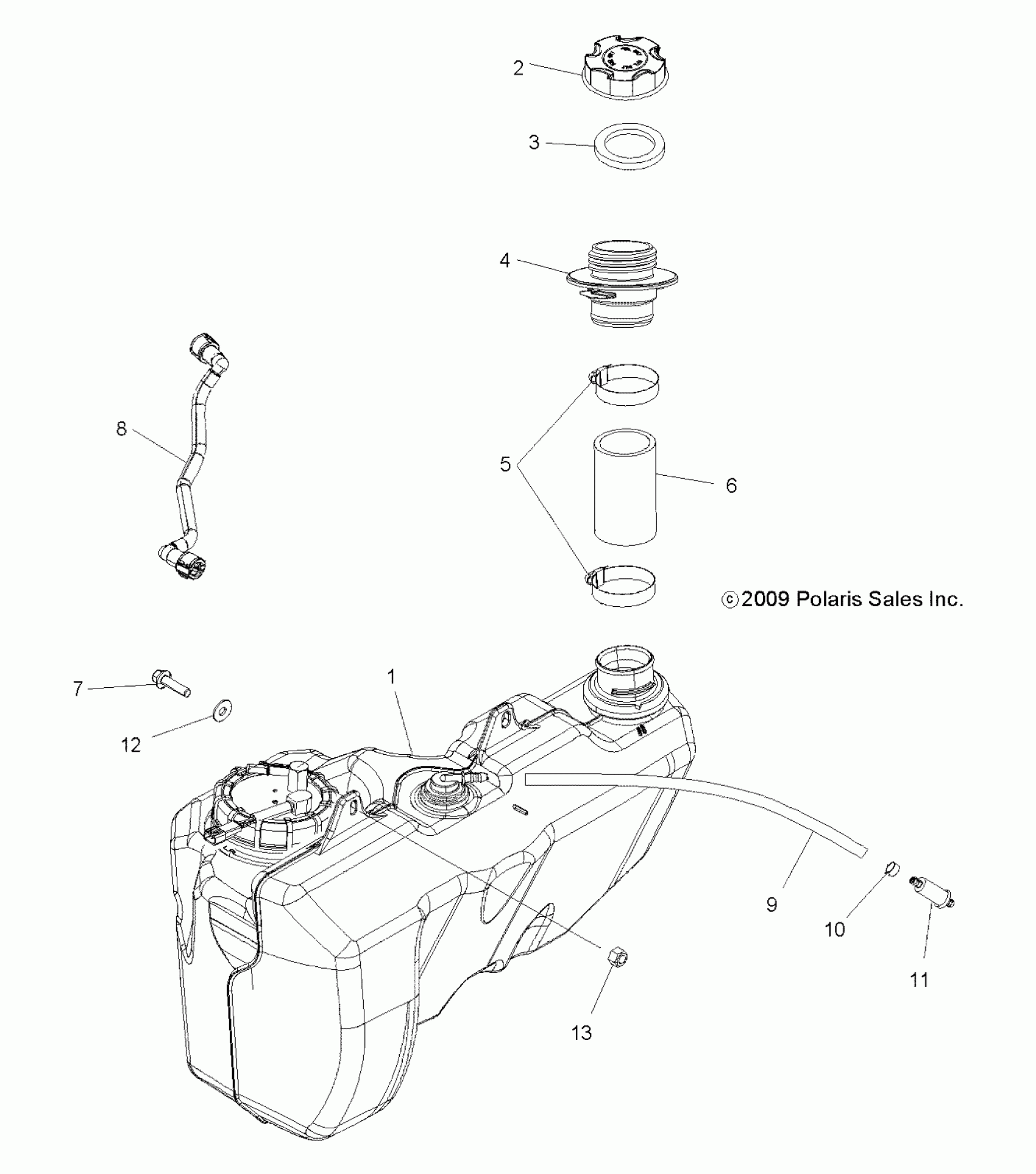

Polaris SPORTSMAN XP EPS 850 - A10ZX85AK/AL/AS/AT/AX BODY, FUEL TANK - A10ZX85AK/AL/AS/AT/AX (49ATVFUEL10SPXP550) Diagram

#

Description
Price

1

Asm., Fuel Tank w/Pump [Incl. Pump]

2520922

Unavailable

1

Kit, Fuel Pump [Incl. Fuel Pump Asm., Gasket, Nut, Cleaning Pad, Instructions]

2204307

$534.99

2

Cap, Gas Tank [Incl. Gasket]

5433687

$20.22

3

GASKET

5812123

$5.65

4

INLET, FUEL

5436898

$79.99

5

Clamp, Constant Tension

7081414

$8.79

6

HOSE, FUEL FILL

5413142

$31.99

7

SCREW, FLANGE

7519202

$3.99

8

Asm., Fuel Line

2521073

Unavailable

9

LINE, VENT

8450126-104

Unavailable

10

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

11

FILTER

2530009

$5.65

12

Washer, Flat

7555859

$1.49

13

NUT-6MM X 1 NYLOK-Z

7546703

$1.49
