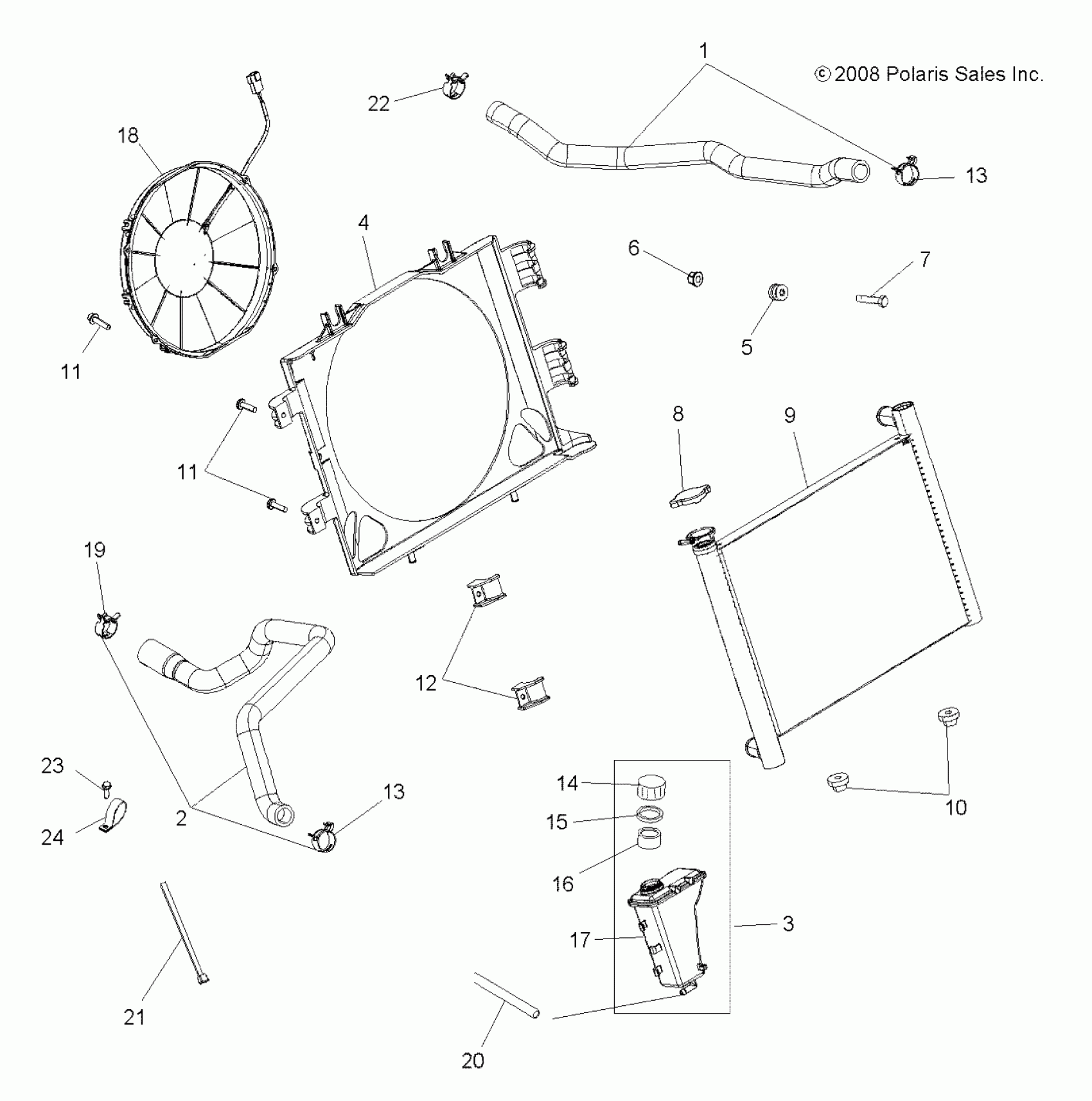

Polaris SPORTSMAN XP EPS 850 - A09ZX85/8X ALL OPTIONS ENGINE, COOLING SYSTEM - A09ZX85/8X ALL OPTIONS (49ATVCOOL09SPEPS850) Diagram

#

Description
Price

1

Asm., Hose, Engine Out [Incl. 13, Hose]

1240407

Unavailable

2

Asm., Hose, Engine In [Incl. 13,19, Hose]

1240449

Unavailable

3

ASM., BOTTLE, COOLANT RECOVERY [INCL. 14-17,20]

1240406

$71.99

4

Shroud

5437627

Unavailable

5

ASM., GROMMET AND INSERT

5413509

$15.99

6

NUT-M6 FLANGE,NYLOC

7547274

$1.49

7

BOLT, FLANGE

7518530

$3.99

8

CAP, PRESSURE

1240466

$55.99

9

RADIATOR

1240404

$428.99

10

GROMMET, RADIATOR MOUNT, LOWER

5413510

$15.99

11

Screw

7518918

$15.03

11

Screw

7518918

$15.03

12

Clip

5437628

$17.59

13

Clamp, Hose

7081520

Unavailable

13

Clamp, Hose

7081520

Unavailable

14

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

15

GASKET-OVERFLOW CAP

5810279

$2.41

16

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

17

BOTTLE, COLLANT RECOVERY

5437257

Unavailable

18

Fan

2411578

$300.14

19

Clamp, Hose

7081521

Unavailable

20

Line, Fuel

8450128-27

$31.99

21

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

22

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

23

BOLT, FLANGE

7518513

$4.79

24

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable
