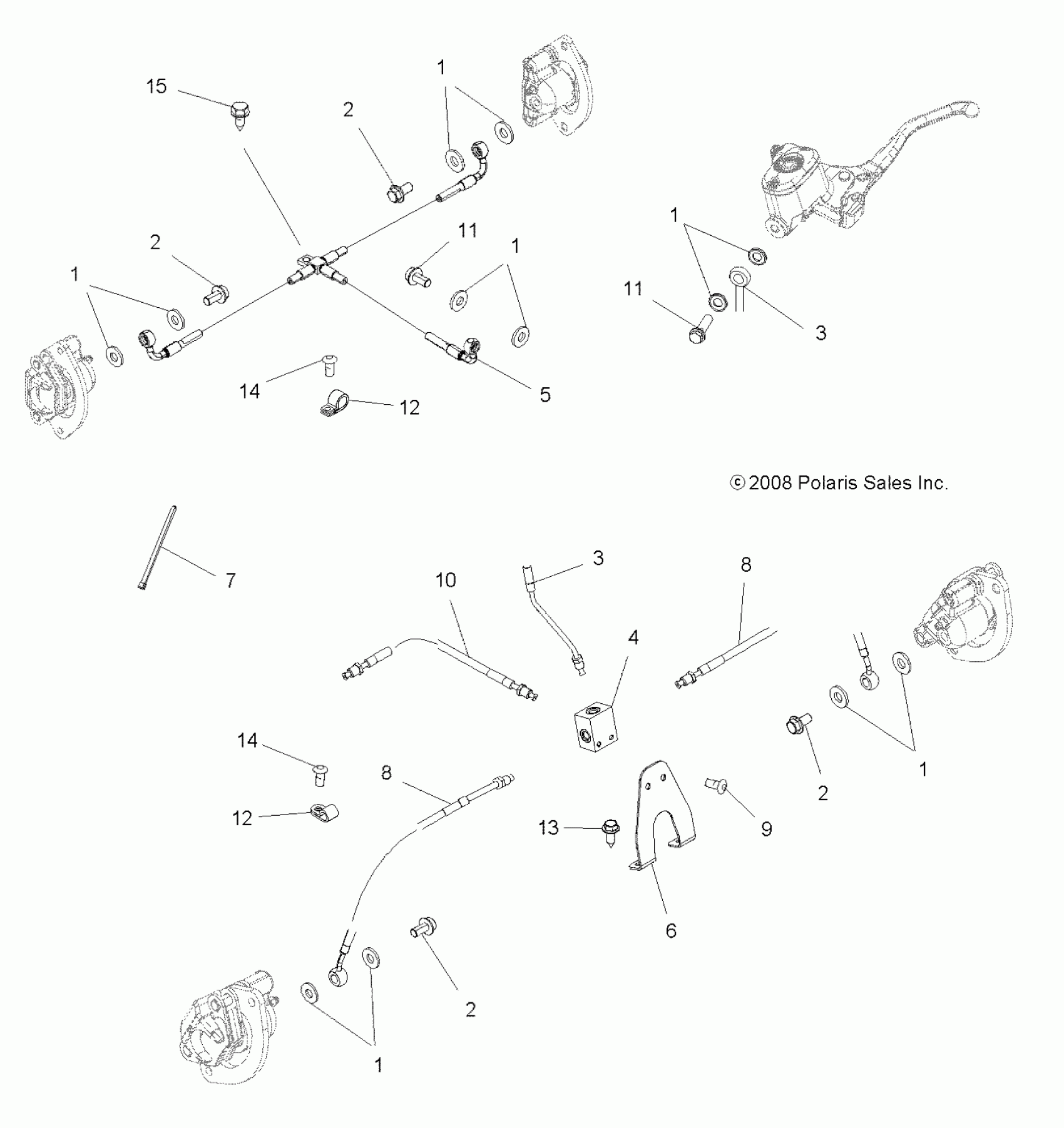

Polaris SPORTSMAN XP EPS 850 - A09ZX85/8X ALL OPTIONS BRAKES, BRAKE LINES - A09ZX85/8X ALL OPTIONS (49ATVBRAKELINE09SPXP850) Diagram

#

Description
Price

1

SEAL

5413212

$4.84

1

SEAL

5413212

$4.84

1

SEAL

5413212

$4.84

1

SEAL

5413212

$4.84

1

SEAL

5413212

$4.84

1

SEAL

5413212

$4.84

2

BOLT, BANJO

1910499

$5.56

2

BOLT, BANJO

1910499

$5.56

2

BOLT, BANJO

1910499

$5.56

2

BOLT, BANJO

1910499

$5.56

3

LINE, BRAKE, POD TO JB

1911393

$80.94

3

LINE, BRAKE, POD TO JB

1911393

$80.94

4

FITTING, CROSS

7052372

$59.52

5

Line, Brake, Rear, Diff

1911298

$139.99

6

BRACKET, JUNCTION BLOCK

5252667

$48.40

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

LINE, BRAKE, CALIPER, FRONT

1911383

$76.89

8

LINE, BRAKE, CALIPER, FRONT

1911383

$76.89

9

SCREW

7512024

$4.76

10

Line, Brake, JB to FT MC

1911384

Unavailable

11

BOLT, BANJO

1910499

$5.56

12

Clamp, Hose

7081472

$3.97

12

Clamp, Hose

7081472

$3.97

13

SCREW, FLANGE

7518513

$4.76

13

SCREW, FLANGE

7518513

$4.76

14

Screw

7512084

$1.19

14

Screw

7512084

$1.19

15

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19
