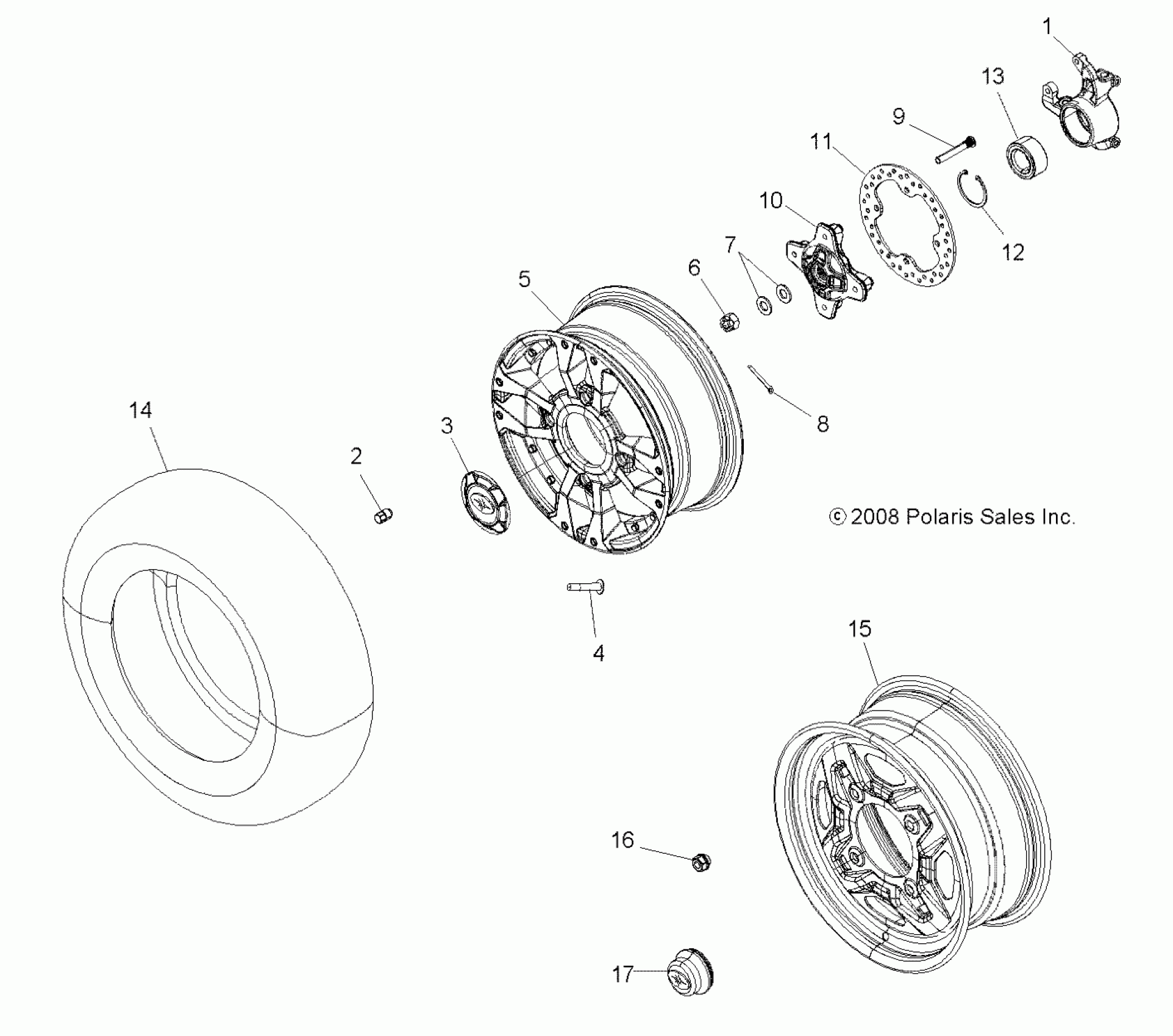

Polaris SPORTSMAN XP EPS 550 - A09ZX55AC/AL/AQ/AS/AX WHEELS, FRONT and HUB - A09ZX55AC/AL/AQ/AS/AX (49ATVWHEELFRT09SPXP550) Diagram

ASM., STEERING KNUCKLE, RH [INCL. 12,13]

1822946

Unavailable

ASM., STEERING KNUCKLE, LH [INCL. 12,13]

1822945

Unavailable

KNUCKLE, LH

5136733

Unavailable

KNUCKLE, RH

5136734

Unavailable

Nut, Wheel [AL][AS][AX]

7547361

$2.39

Cover, Hub [AL][AS][AX]

5438120

$43.99

VALVE-RIM

1525017

$5.59

Rim, Front, Cast Aluminum [AL][AS][AX][Incl. Cover]

1521266

Unavailable

NUT, CASTLE

7547406

$4.79

WASHER, CONE

7555796

$7.99

PIN, COTTER

7661402

$1.86

STUD, WHEEL

7518671

$1.59

HUB, WHEEL

5135499

Unavailable

DISC, BRAKE

5250205

$75.99

RING, RETAINING

7710440

$10.39

Bearing, Ball, Sealed

3514627

Unavailable

Tire, Front, 26x8-14

5413504

$206.65

Rim, Front, Black [AQ][AC]

1520961-067

Unavailable

Nut, Wheel [AQ][AC]

7547363

$4.79

Cap, Dust [AQ][AC][Built 3/23/09 and Before]

5413792

Unavailable

Cover, Dust [AQ][AC][Built 3/24/09 and After]

5413473

$27.99
