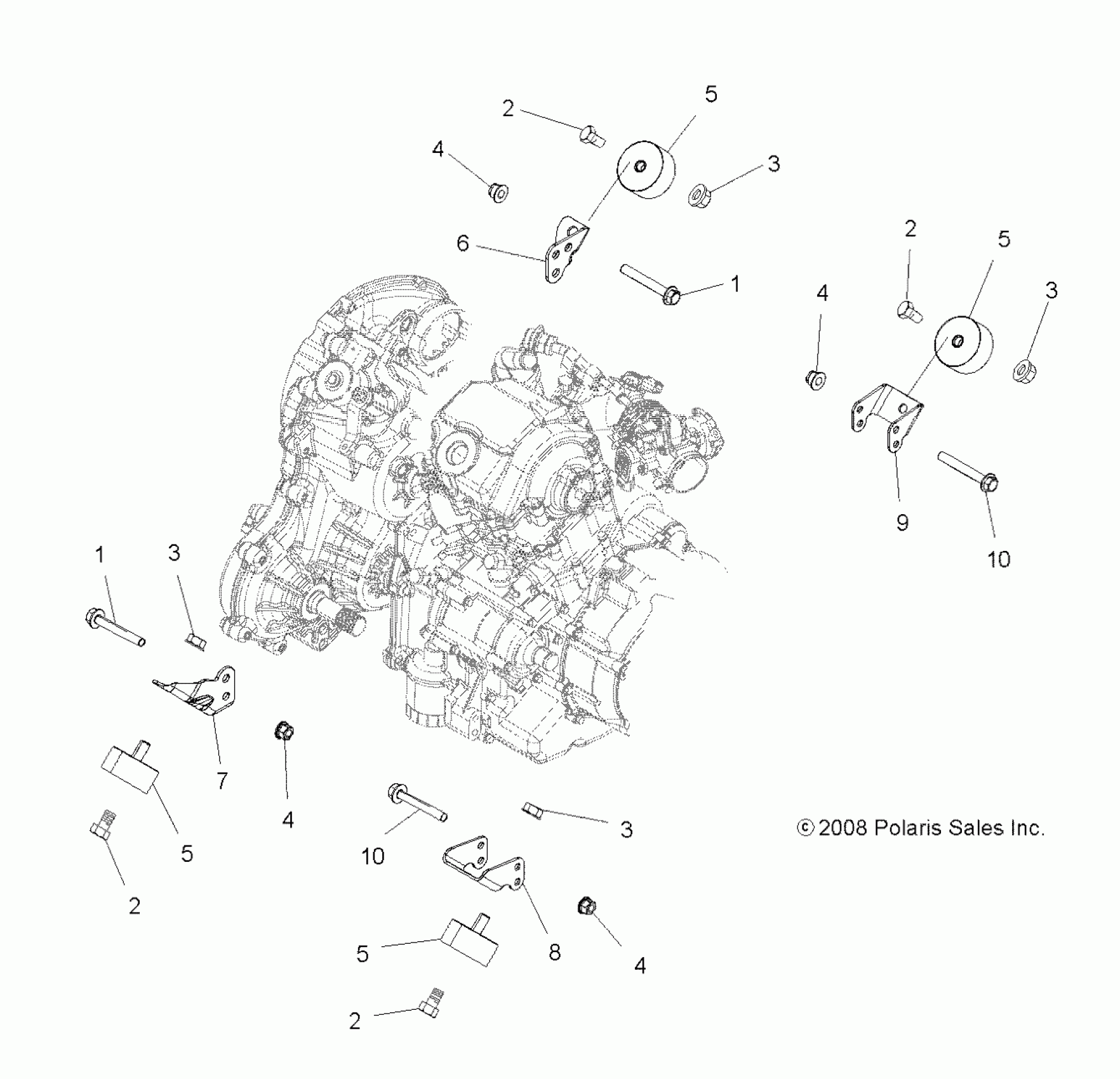

Polaris SPORTSMAN XP EPS 550 - A09ZX55AC/AL/AQ/AS/AX ENGINE, MOUNTING - A09ZX55AC/AL/AQ/AS/AX (49ATVENGINEMTG09SPXP550) Diagram

#

Description
Price

1

SCREW, FLANGE

7516732

$1.59

1

SCREW, FLANGE

7516732

$1.59

2

SCREW

7519032

$4.76

2

SCREW

7519032

$4.76

2

SCREW

7519032

$4.76

2

SCREW

7519032

$4.76

3

Nut, Flange

7547313

$1.19

3

Nut, Flange

7547313

$1.19

3

Nut, Flange

7547313

$1.19

3

Nut, Flange

7547313

$1.19

4

Nut, Flange

7547317

$2.38

4

Nut, Flange

7547317

$2.38

4

Nut, Flange

7547317

$2.38

4

Nut, Flange

7547317

$2.38

5

Isolator [Built 2/21/09 and After]

3022154

$42.74

5

Mount, Motor [Built 2/20/09 and Before]

3022000

$42.74

5

Isolator [Built 2/21/09 and After]

3022154

$42.74

5

Mount, Motor [Built 2/20/09 and Before]

3022000

$42.74

5

Isolator [Built 2/21/09 and After]

3022154

$42.74

5

Mount, Motor [Built 2/20/09 and Before]

3022000

$42.74

5

Isolator [Built 2/21/09 and After]

3022154

$42.74

5

Mount, Motor [Built 2/20/09 and Before]

3022000

$42.74

6

Bracket, Transmission, LH [Built 11/20/08 and After]

5253340

$13.99

6

Bracket, Transmission, LH [Built 11/19/08 and Before]

5252839

$13.99

7

BRACKET, TRANSMISSION, RH

5252091

$44.51

8

BRACKET, ENGINE, MOUNT, RH

5251715

$32.37

9

BRACKET, ENGINE MOUNT, LH

5251714

$114.99

10

SCREW, FLANGE

7518955

$3.17

10

SCREW, FLANGE

7518955

$3.17
