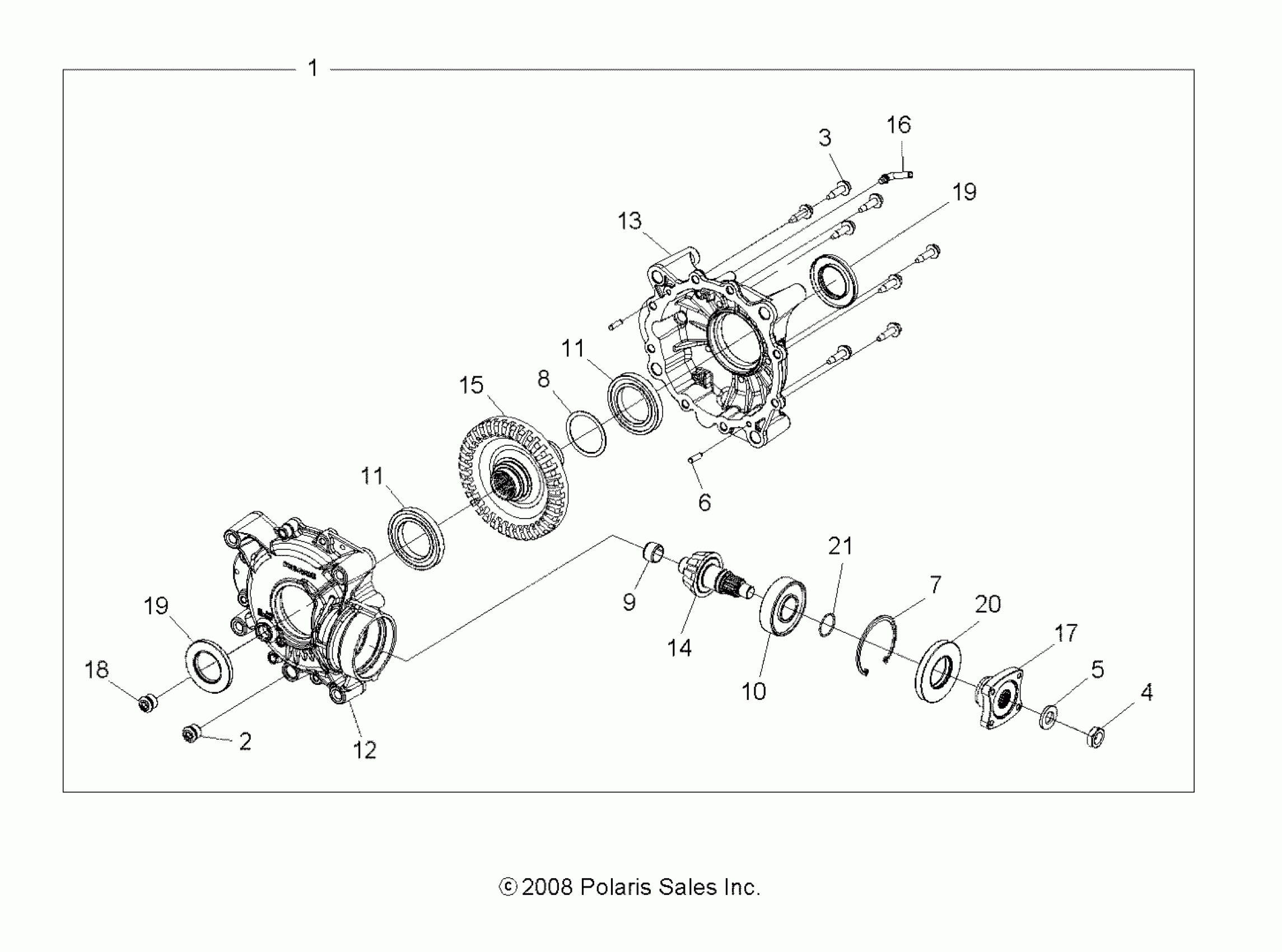

Polaris SPORTSMAN XP EPS 550 - A09ZX55AC/AL/AQ/AS/AX DRIVE TRAIN, REAR GEARCASE INTERNALS (Built 12/01/08 and Before) - A09ZX55AL/AQ/AS/AX (49ATVTRANSINTL09SPXP550) Diagram

#

Description
Price

1

Gearcase, Rear [Incl. All]

1332492

$1,599.99

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

SCREW

3234329

$9.52

4

NUT, HEX

3234776

$10.32

5

WASHER, LOCKING

3234777

$43.65

6

PIN, DOWEL 6 X 20

3234330

$7.14

7

RING, RETAINING

3234158

$23.81

8

SHIM

3233554

$39.99

9

Bearing

3233577

$19.84

10

BEARING, BALL

3233714

$31.75

11

BEARING, BALL

3234275

$33.24

11

BEARING, BALL

3234275

$33.24

12

Case, Main

3234779

$1,599.99

13

Subasm., Cover [Incl. 6]

3234682

$1,599.99

14

Shaft, Pinion, 10T

3234780

Unavailable

15

Gear, 37T

3234781

$1,599.99

16

TUBE, VENT

3234230

$10.51

17

COUPLER

3234782

$101.17

18

PLUG, M18 X 1.5

3234755

$27.78

19

Seal, Triple Lip

3234783

$32.37

19

Seal, Triple Lip

3234783

$32.37

20

Seal, Triple Lip

3234784

$32.37

21

O-RING

3234785

$9.70
