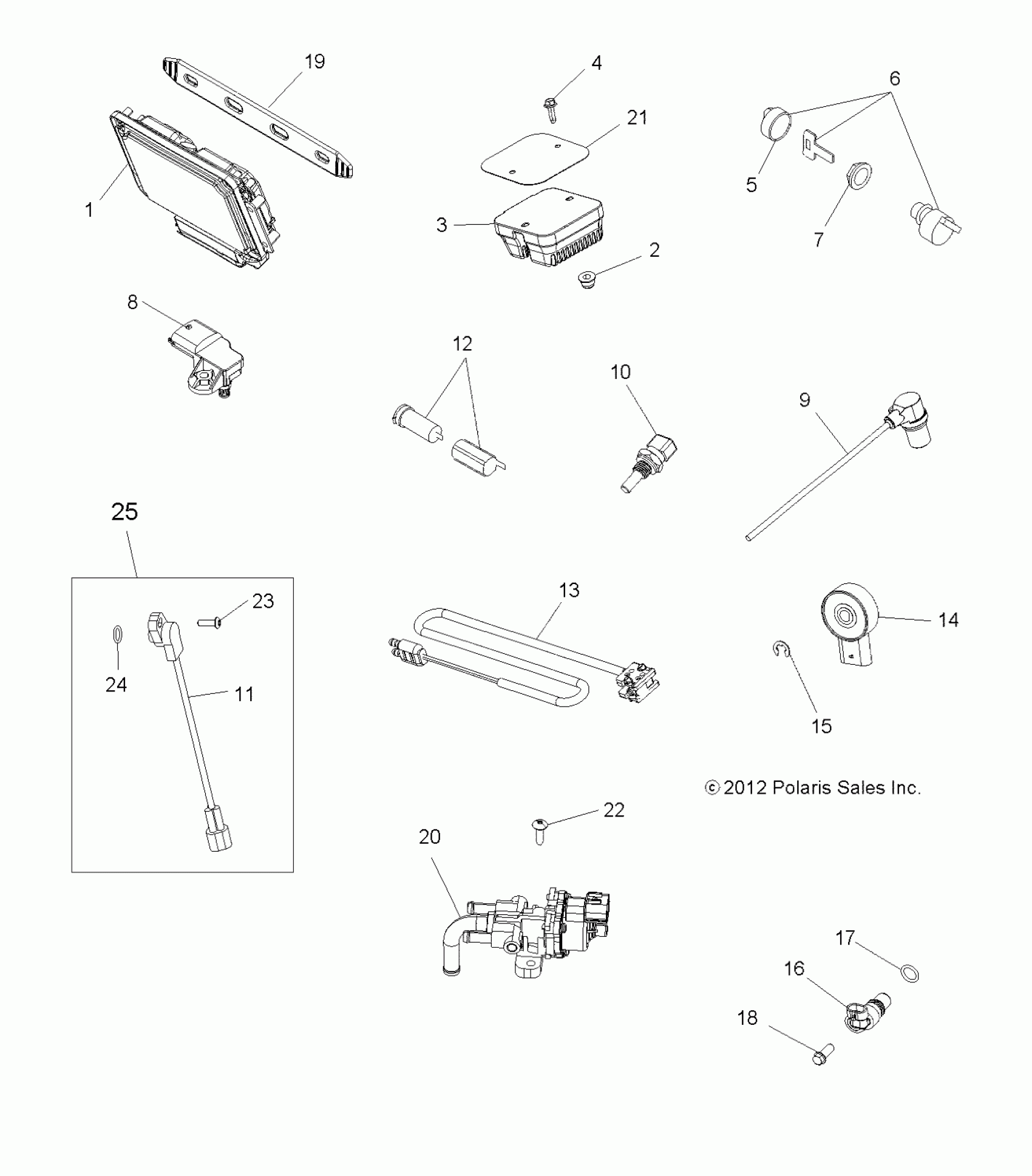

Polaris SPORTSMAN XP 850 - A13ZN85AA/AQ/AZ ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A13ZN85AA/AQ/AZ (49ATVSWITCHES13SPXP850) Diagram

Description

Price

ECM

4012616

$644.99

NUT-M6 FLANGE,NYLOC

7547274

$1.49

REGULATOR, VOLTAGE

4012678

$263.99

SCREW, FLANGE

7519202

$3.99

KEY SWITCH KEY COVER

5433534

$12.35

SWITCH, KEY, 3 POSITION [INCL. 5]

4012165

$104.24

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

SENSOR-TMAP DSS3-TF

2411528

$93.08

SCREW [USE W/2411528]

7518548

$1.59

SCREW

7518548

$1.59

Sensor, Crank Position

2411589

$79.99

SENSOR-THERMISTER

4010644

$87.13

SENSOR, THROTTLE POSITION

2410342

Unavailable

RECEPTACLE, POD, 12 V

4010638

$24.27

KIT, BRAKE LIGHT SWITCH

2202794

$72.84

SWITCH [GEAR POSITION]

3233835

Unavailable

RING, RETAINING

3233834

$10.39

SENSOR, SPEED

4012167

$100.38

O-RING

3234302

$7.19

SCREW

3234329

Unavailable

STRAP, ECU

5414193

$27.99

KIT, HARNESS, IAC

2878507

$135.99

VALVE, IAC

4013313

$175.99

COVER, VOLTAGE REGULATOR

5253294

$10.39

SCREW

7519045

$3.19

SCREW

3131580

$7.19

O-RING

5414574

$5.59

ASM., TPS 850

1204715

$239.99
