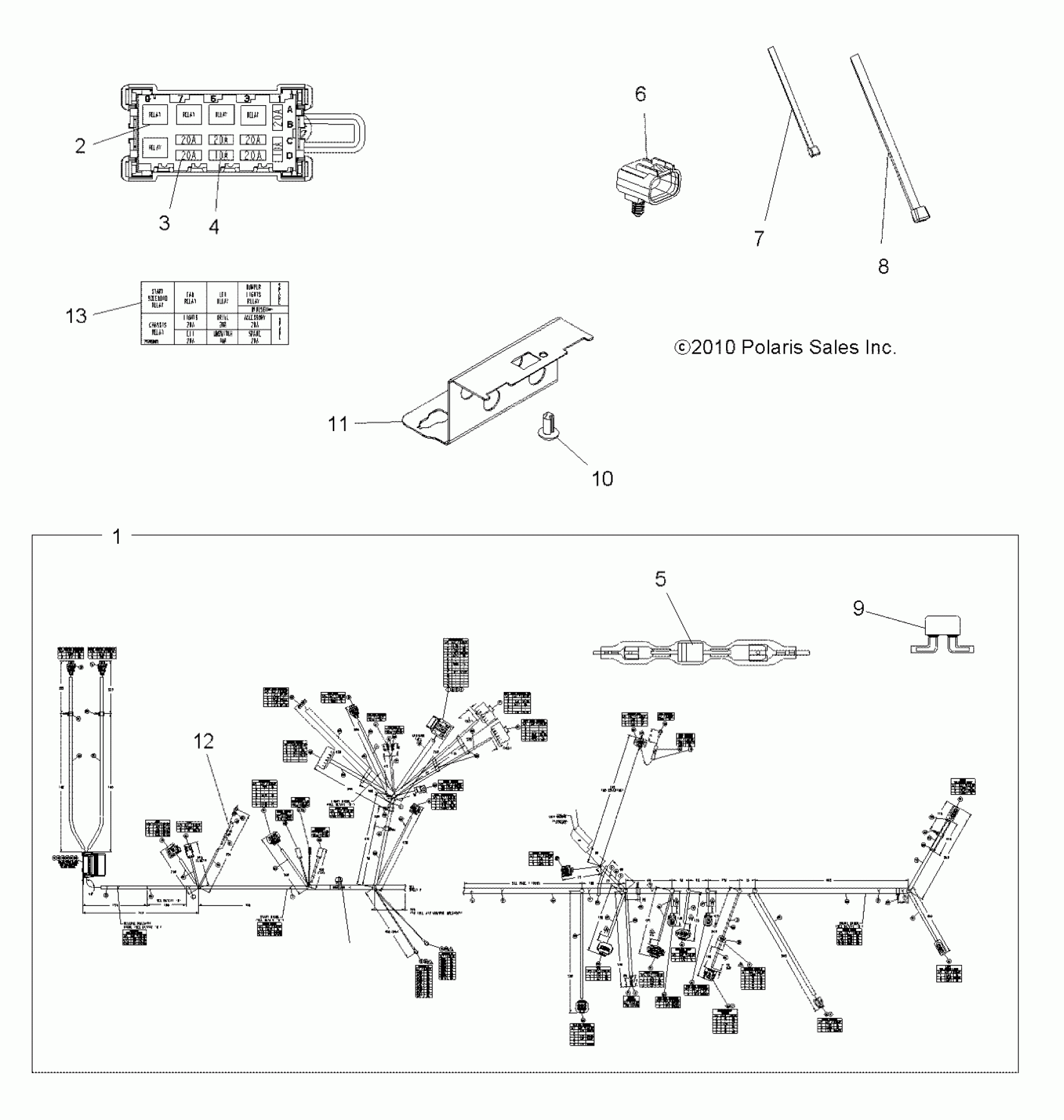

Polaris SPORTSMAN XP 850 - A11ZN85AA/AQ/AZ ELECTRICAL, HARNESS - A11ZN85AA/AQ/AZ (49ATVHARNESS11SPXP850) Diagram

Description

Price

Kit, Harness, Resistor Module [For Gear Position]

2204890

$127.99

COVER-RELAY/FUSE CENTER

5438758

$11.32

KIT, HARNESS, TPS

2878498

$113.32

Harness, Main [Incl. 1-5,9,12-13, All Kits, Cover]

2411461

$894.99

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

FUSE-PARK,20 AMP

2434017

Unavailable

FUSE-IGNITION,10 AMP

2434016

$4.79

DIODE, 6AMP

2411035

$51.99

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

BREAKER-CIRCUIT,20 AMP,SEALED

2410881

$72.84

CLIP, PUSH ON

7670125

$7.99

BRACKET, FUSE BLOCK

5253502

$6.39

Kit, Fusible Link, 1.0 mm

2202670

$35.99

Kit, Fusible Link, .8 MM

2202607

$39.99

LABEL, FUSE BOX

7175141

Unavailable
