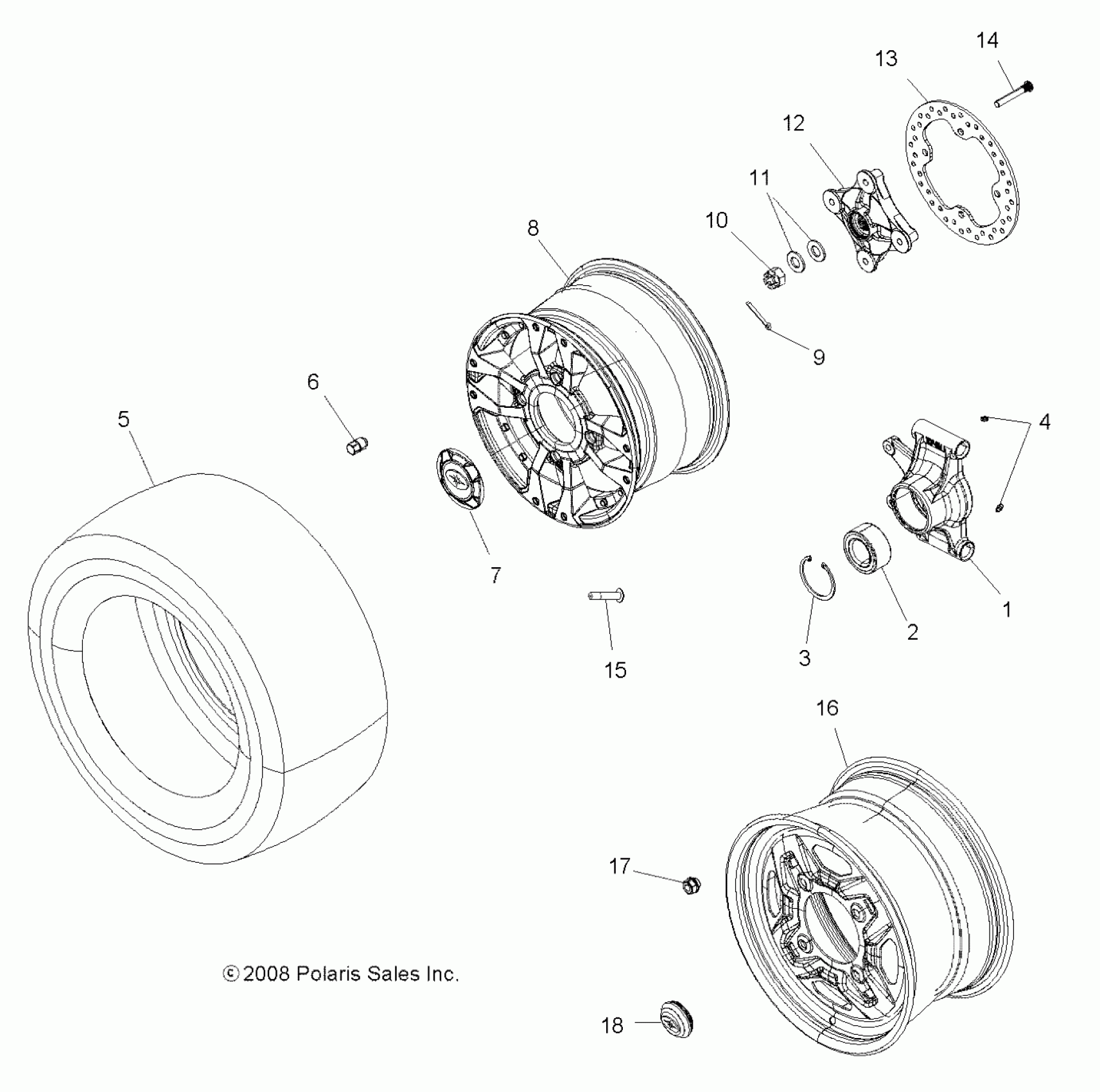

Polaris SPORTSMAN XP 850 - A09ZN85/8X ALL OPTIONS WHEELS, REAR and HUB - A09ZN85/8X ALL OPTIONS (49ATVWHEELREAR09SPXP550) Diagram

#

Description
Price

1

CARRIER, BEARING, LH

5136105

$99.99

1

CARRIER, BEARING, RH

5136106

$99.99

2

Bearing, Ball, Sealed

3514627

Unavailable

3

RING, RETAINING

7710440

$10.39

4

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

Tire, Rear, 26x10-14

5413505

$225.70

6

Nut, Wheel, Rear [AL][AS][AT][AX]

7547361

$2.39

7

Cover, Hub [AL][AS][AT][AX]

5438120

$43.99

8

Rim, Rear [AL][AS][AT][AX][Incl. Cover]

1521267

Unavailable

9

PIN, COTTER

7661404

$4.79

10

NUT, CASTLE

7547406

$4.79

11

WASHER, CONE

7555796

$7.99

12

Hub, Wheel

5136295

Unavailable

13

DISC, BRAKE

5250205

$75.99

14

STUD, WHEEL

7518671

$1.59

15

VALVE-RIM

1525017

$5.59

16

Rim, Wheel, Rear, Black [AQ]

1520962-067

Unavailable

16

Rim, Wheel, Rear, NBU Camo [AT]

1521411-455

$206.17

17

Nut, Wheel [AQ][AT]

7547363

$4.79

18

Cap, Dust [AQ][AT]

5413792

Unavailable
