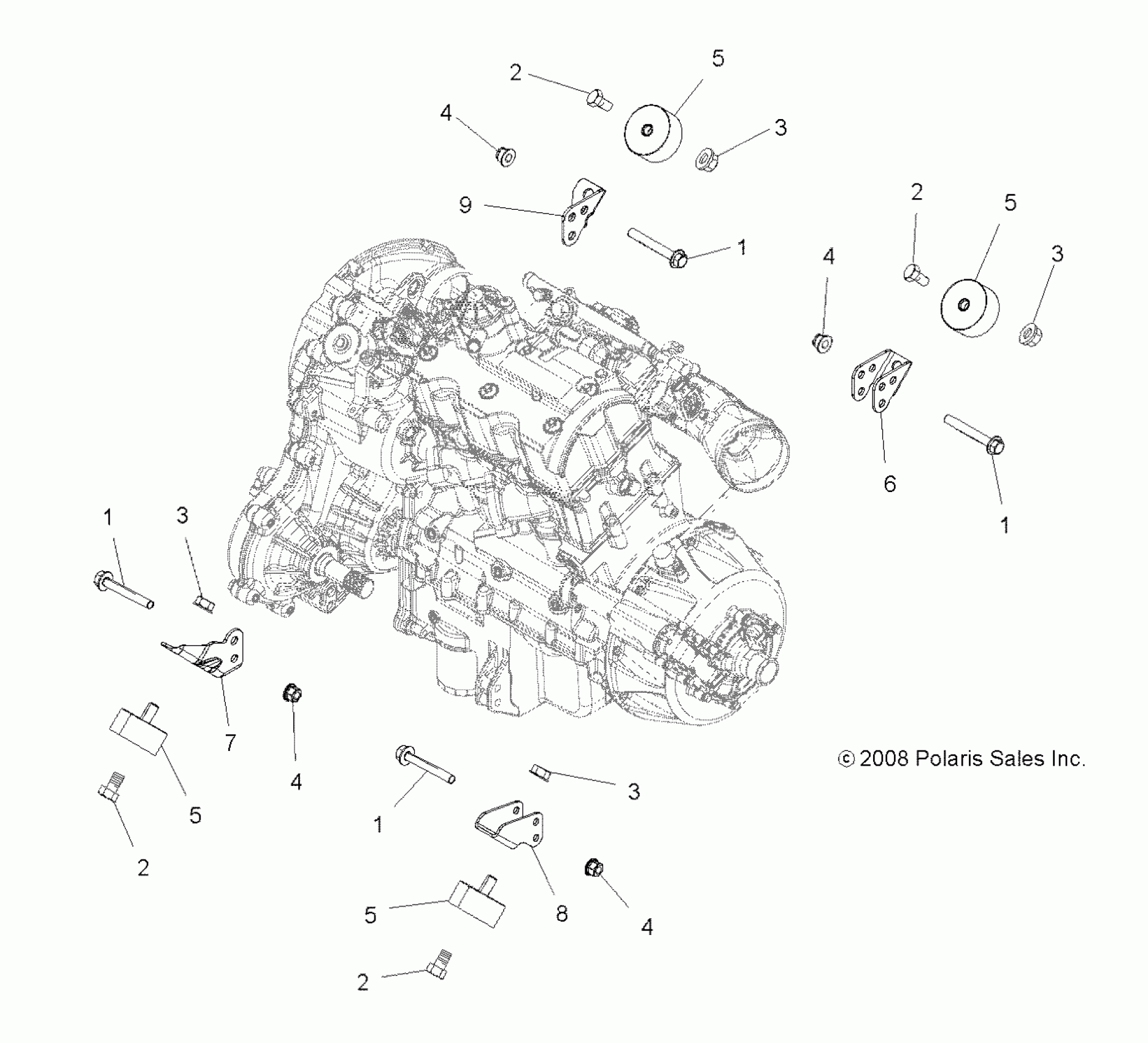

Polaris SPORTSMAN XP 850 - A09ZN85/8X ALL OPTIONS ENGINE, MOUNTING - A09ZN85/8X ALL OPTIONS (49ATVENGINEMTG09SPXP850) Diagram

#

Description
Price

1

SCREW, FLANGE

7516732

$1.59

1

SCREW, FLANGE

7516732

$1.59

1

SCREW, FLANGE

7516732

$1.59

1

SCREW, FLANGE

7516732

$1.59

2

SCREW

7519032

$4.79

2

SCREW

7519032

$4.79

2

SCREW

7519032

$4.79

2

SCREW

7519032

$4.79

3

Nut, Flange

7547313

$1.49

3

Nut, Flange

7547313

$1.49

3

Nut, Flange

7547313

$1.49

3

Nut, Flange

7547313

$1.49

4

Nut, Flange

7547317

Unavailable

4

Nut, Flange

7547317

Unavailable

4

Nut, Flange

7547317

Unavailable

4

Nut, Flange

7547317

Unavailable

5

ISOLATOR

3022154

$30.88

5

ISOLATOR

3022154

$30.88

5

ISOLATOR

3022154

$30.88

5

ISOLATOR

3022154

$30.88

6

BRACKET, TRANSMISSION MOUNT, LH

5251716

$43.99

7

BRACKET, TRANSMISSION, RH

5252091

$43.99

8

BRACKET, ENGINE, MOUNT, RH

5251717

$47.99

9

Bracket, Transmission, LH [Built 11/01/08 and After]

5253340

$11.19

9

Bracket, Transmission, LH [Built 10/31/08 and Before]

5252839

Unavailable
