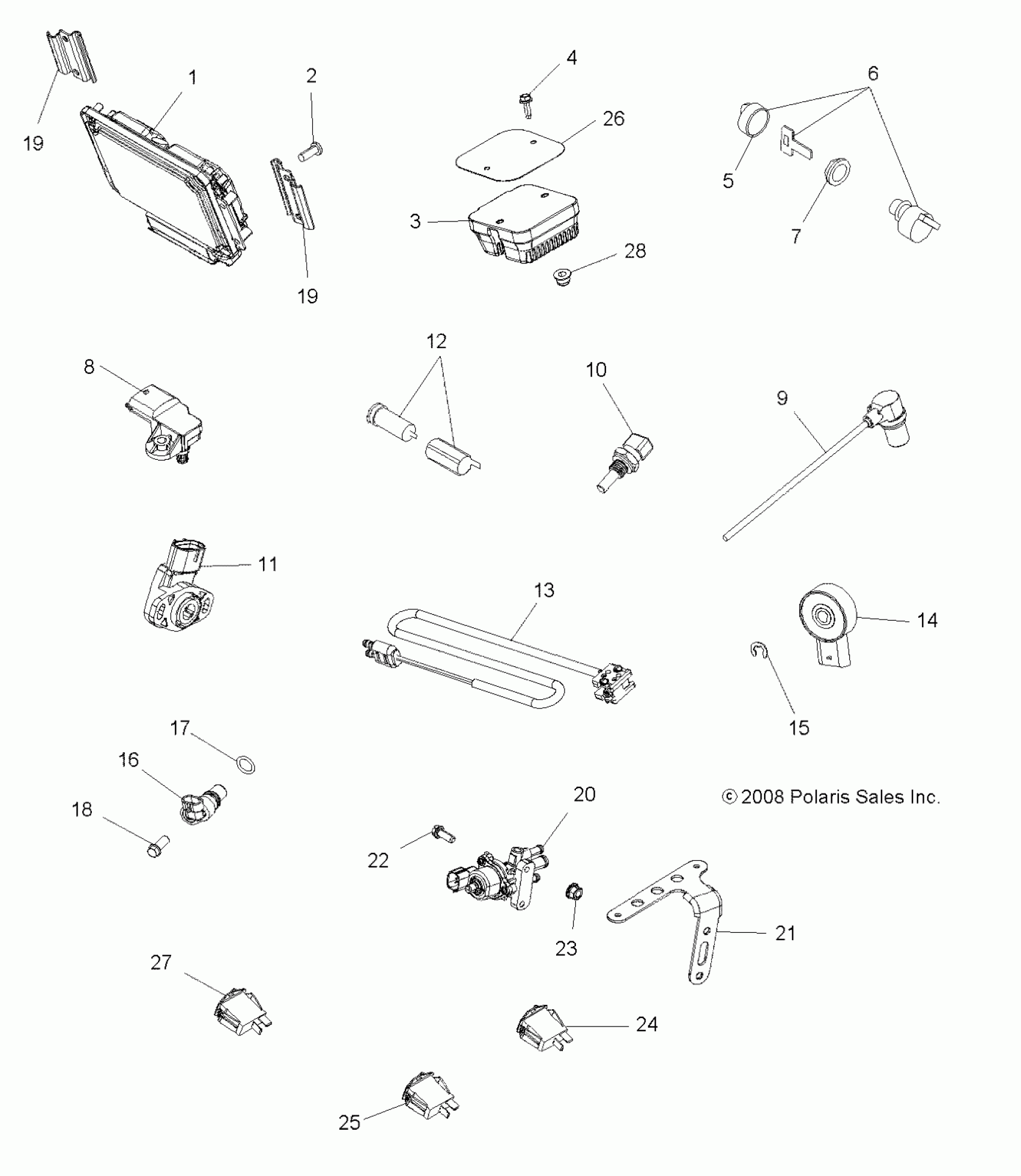

Polaris SPORTSMAN XP 850 - A09ZN85/8X ALL OPTIONS ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A09ZN85/8X ALL OPTIONS (49ATVSWITCHES09SPXP850) Diagram

#

Description
Price

1

ECM

4012616

$644.99

2

Screw

7512095

$4.79

3

Regulator, Voltage

4011636

Unavailable

4

SCREW

7518576

$3.19

5

KEY SWITCH KEY COVER

5433534

$12.35

6

SWITCH, KEY, 3 POSITION [INCL. 5]

4012165

$104.24

7

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

8

Screw

7518541

$11.43

8

Sensor, T-Map

2411082

Unavailable

9

Sensor, Engine Speed

2410857

Unavailable

10

SENSOR-THERMISTER

4010644

$87.13

11

ASM., SENSOR

3131705

$187.99

12

RECEPTACLE, POD, 12 V

4010638

$24.27

13

KIT, BRAKE LIGHT SWITCH

2202794

$72.84

14

SWITCH [GEAR POSITION]

3233835

Unavailable

15

RING, RETAINING

3233834

$10.39

16

SENSOR, SPEED

4012167

$100.38

17

O-RING

3234302

$7.19

18

SCREW

3234329

Unavailable

19

Bracket, Mount, ECU

5251244

$1.49

19

Bracket, Mount, ECU

5251244

$1.49

20

VALVE, IAC

4011638

$107.99

20

KIT, HARNESS, IAC

2878507

$135.99

21

BOLT

7518513

$4.79

21

Bracket, IAC

5252132

$3.51

22

Screw

7518613

$3.99

23

NUT-M6 FLANGE,NYLOC

7547274

$1.49

24

SWITCH-HANDWARMER,SPDT [AT]

4011319

$54.99

25

Switch, Thumb Warmer, Hi/Lo [AT]

4012483

$43.99

26

COVER, VOLTAGE REGULATOR

5253294

$10.39

27

Switch, Worklight, On/Off [AT]

4011074

$49.99

28

NUT-M6 FLANGE,NYLOC

7547274

$1.49
