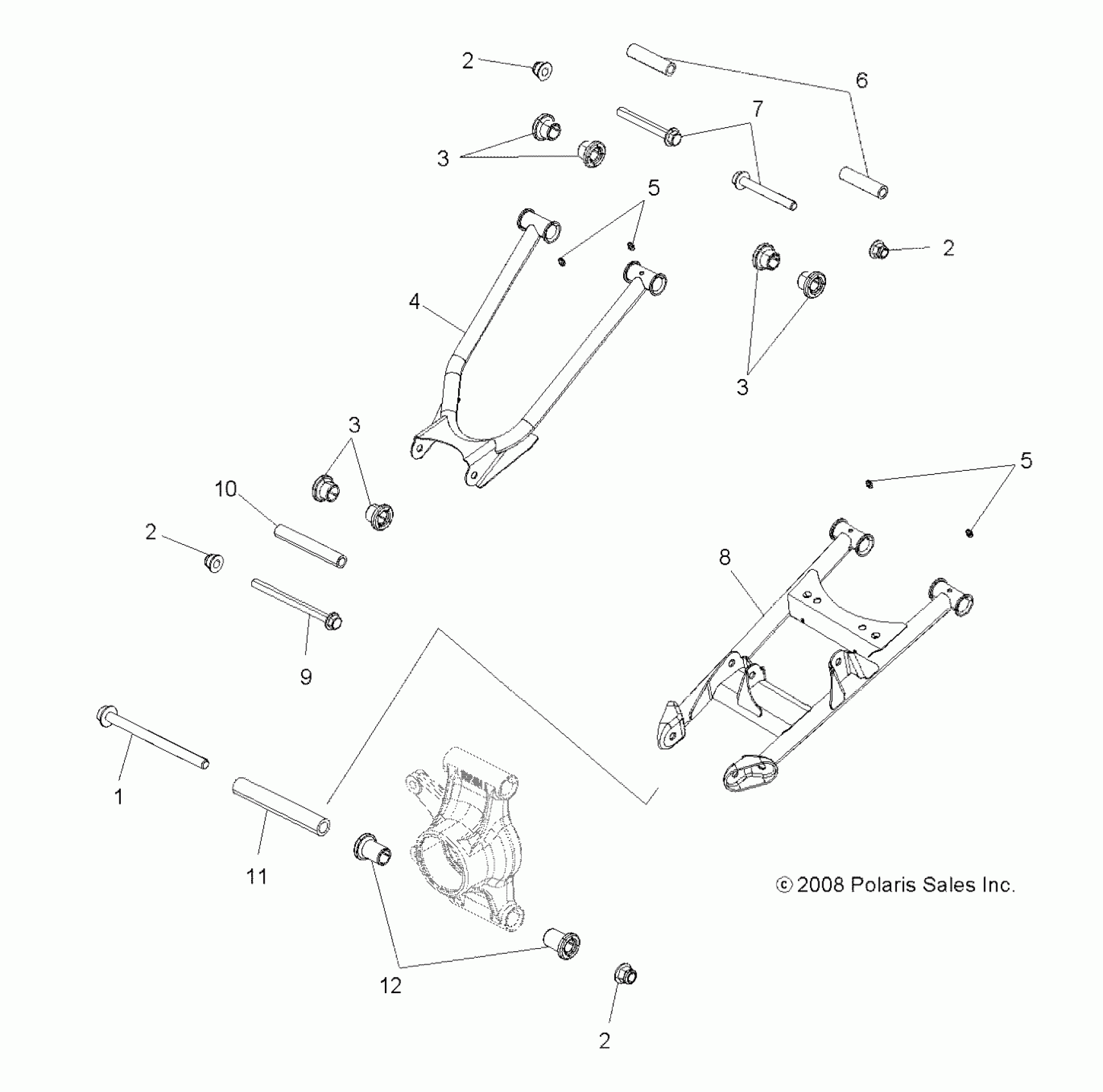

Polaris SPORTSMAN XP 550 - A09ZN55AL/AQ/AS/AT/AX SUSPENSION, REAR - A09ZN55AL/AQ/AS/AT/AX (49ATVSUSPRR09SPXP550) Diagram

BOLT, FLANGE

7518467

$5.59

Nut, Flange

7547313

$1.49

Nut, Flange

7547313

$1.49

Nut, Flange

7547313

$1.49

Nut, Flange

7547313

$1.49

BUSHING, CONTROL ARM

5436798

$2.39

BUSHING, CONTROL ARM

5436798

$2.39

BUSHING, CONTROL ARM

5436798

$2.39

Arm, Control, Upper, Rear, RH, Black

1017259-067

$139.99

Arm, Control, Upper, Rear, LH, Black

1017258-067

$139.99

FITTING, LUBRICATING

7080433

$1.49

FITTING, LUBRICATING

7080433

$1.49

Shaft, A-Arm

5135270

$12.79

BOLT, FLANGE

7518466

$4.79

Arm, Control, Lower, Rear, RH, Black [Built 4/02/09 and After]

1017257-067

$106.49

Arm, Control, Lower, Rear, RH, Black [Built 4/01/09 and Before]

1015129-067

$106.49

Arm, Control, Lower, Rear, LH, Black [Built 4/01/09 and Before]

1015128-067

$106.49

Arm, Control, Lower, Rear, LH, Black [Built 4/02/09 and After]

1017256-067

$106.49

BOLT, FLANGE

7518675

$5.59

Shaft, Pivot

5135501

Unavailable

SHAFT, A-ARM, LOWER CONTROL ARM

5136473

Unavailable

BUSHING, LOWER CONTROL ARM

5437651

$6.39
