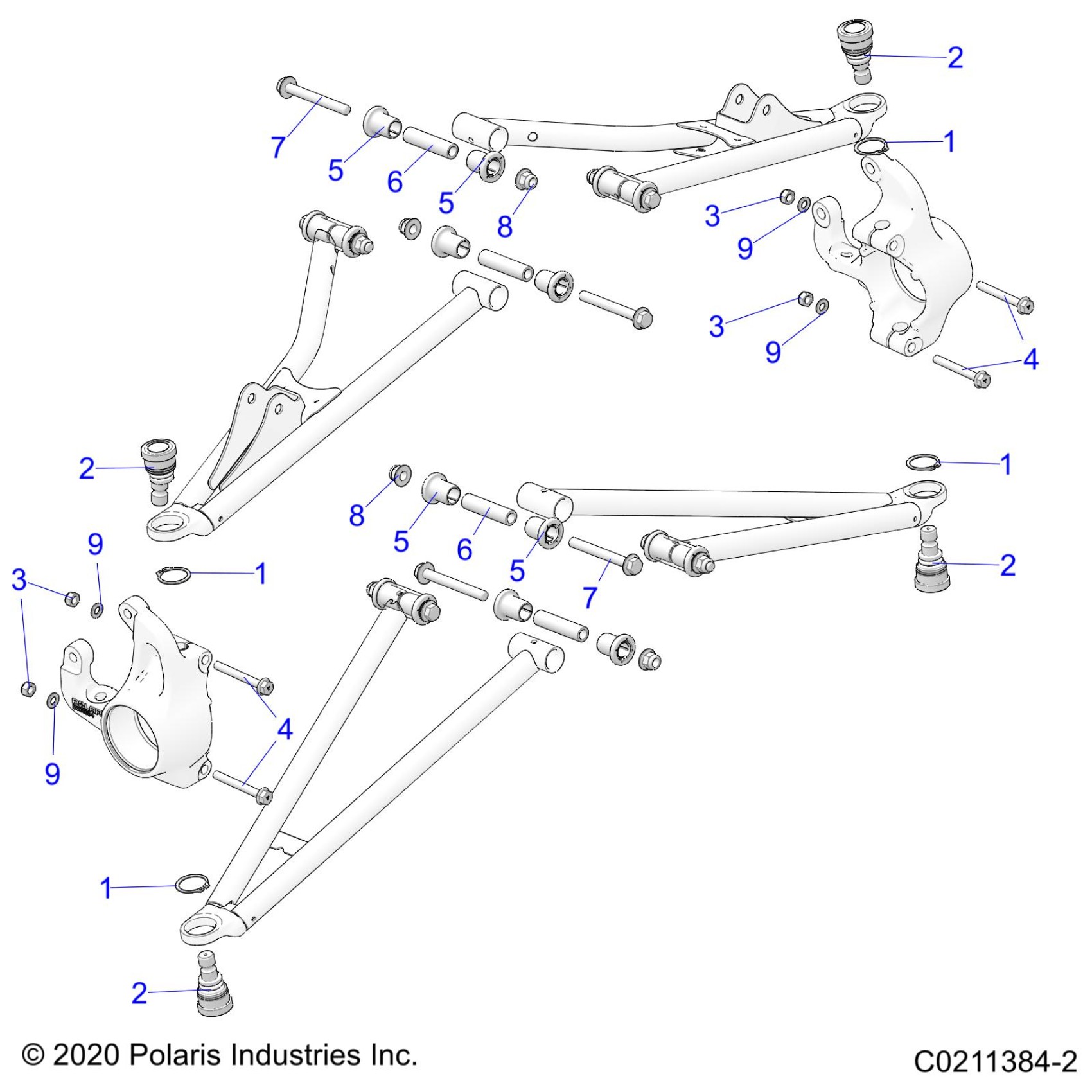

Polaris SPORTSMAN XP 1000/XP 1000 HUNTER EDITION 48" (R05) - A20SXD95A9/E95AG/CAG SUSPENSION, FRONT A-ARM MOUNTING - A20SXE95AG/CAG (C0211384-2) Diagram

#

Description
Price

1

RING-RETAINER,EXTERNAL,1.188

7710533

$2.39

1

RING-RETAINER,EXTERNAL,1.188

7710533

$2.39

1

RING-RETAINER,EXTERNAL,1.188

7710533

$2.39

1

RING-RETAINER,EXTERNAL,1.188

7710533

$2.39

2

JOINT, BALL, LONG STUD

7061220

$75.99

2

JOINT, BALL, LONG STUD

7061220

$75.99

2

JOINT, BALL, LONG STUD

7061220

$75.99

2

JOINT, BALL, LONG STUD

7061220

$75.99

3

NUT-M8X1.25C10,HX,NYL,DIN982,Z

7547405

$1.49

3

NUT-M8X1.25C10,HX,NYL,DIN982,Z

7547405

$1.49

3

NUT-M8X1.25C10,HX,NYL,DIN982,Z

7547405

$1.49

4

SCR-M8X1.25X65-HX/FL-Y,CL 10.9

7519212

$4.79

4

SCR-M8X1.25X65-HX/FL-Y,CL 10.9

7519212

$4.79

5

BUSHING-STANDARD,ORV

5439874

$2.39

5

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

5

BUSHING-STANDARD,ORV

5439874

$2.39

5

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

5

BUSHING-STANDARD,ORV

5439874

$2.39

5

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

5

BUSHING-STANDARD,ORV

5439874

$2.39

5

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

6

SHAFT, A-ARM, 63.5MM

5137346

$14.39

6

SHAFT, A-ARM, 63.5MM

5137346

$14.39

7

SCR-HXFL-M10X1.5X85 8.8 ZY3

7518466

$4.79

7

SCR-HXFL-M10X1.5X85 8.8 ZY3

7518466

$4.79

8

NUT-M10X1.5,HXFLG, NYLON INS

7547313

$1.49

8

NUT-M10X1.5,HXFLG, NYLON INS

7547313

$1.49

9

WASHER-0.62X0.330 X .060 FL-Y

7556557

$1.49

9

WASHER-0.62X0.330 X .060 FL-Y

7556557

$1.49

9

WASHER-0.62X0.330 X .060 FL-Y

7556557

$1.49

9

WASHER-0.62X0.330 X .060 FL-Y

7556557

$1.49
