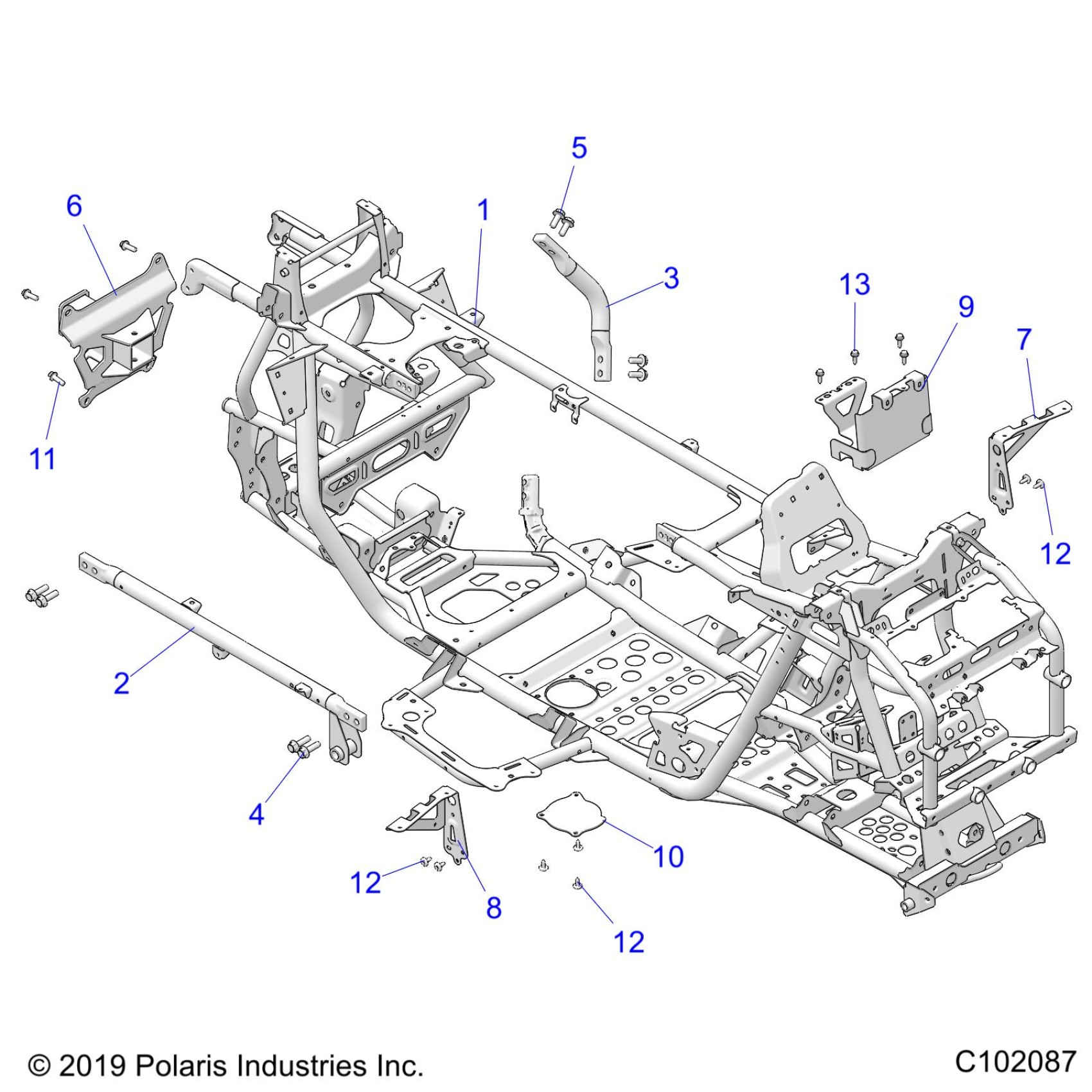

Polaris SPORTSMAN XP 1000 S 55" (R06) - A20SLZ95AE CHASSIS, MAIN FRAME - A20SLZ95AE (C102087) Diagram

#

Description

Price

1

WELD-MAIN FRAME,BLK [INCL. 2-5]

1023843-067

$3,399.99

2

WELD-TOP FRAME JOINT

1025416

$429.99

3

WELD-CLUTCH ACCESS,BLK

1025562-067

$499.99

4

SCR-HXFL-M10X1.5X30 8.8 ZOD

7519782

$3.97

5

SCR-M10X1.5X25 8.8 HXFL ZOD

7519071

$4.76

6

WELD-HITCH,REAR,2",BLK

1024503-067

$176.17

7

BRKT-CAB SUPPORT,FRONT,LH,BLK

5266607-329

$64.75

8

BRKT-CAB SUPPORT,FRONT,RH,BLK

5266608-329

$64.75

9

BRKT-BATTERY SUPPORT,E-COAT

5267058-329

$64.99

10

PLATE-OIL FILTER

5267671

$28.32

11

SCR-HXFL-M8X1.25X25 8.8 ZPB

7518569

$2.74

12

SCR-M6X1X16 TR/TX-M

7518936

$3.97

12

SCR-M6X1X16 TR/TX-M

7518936

$3.97

12

SCR-M6X1X16 TR/TX-M

7518936

$3.97

13

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19
