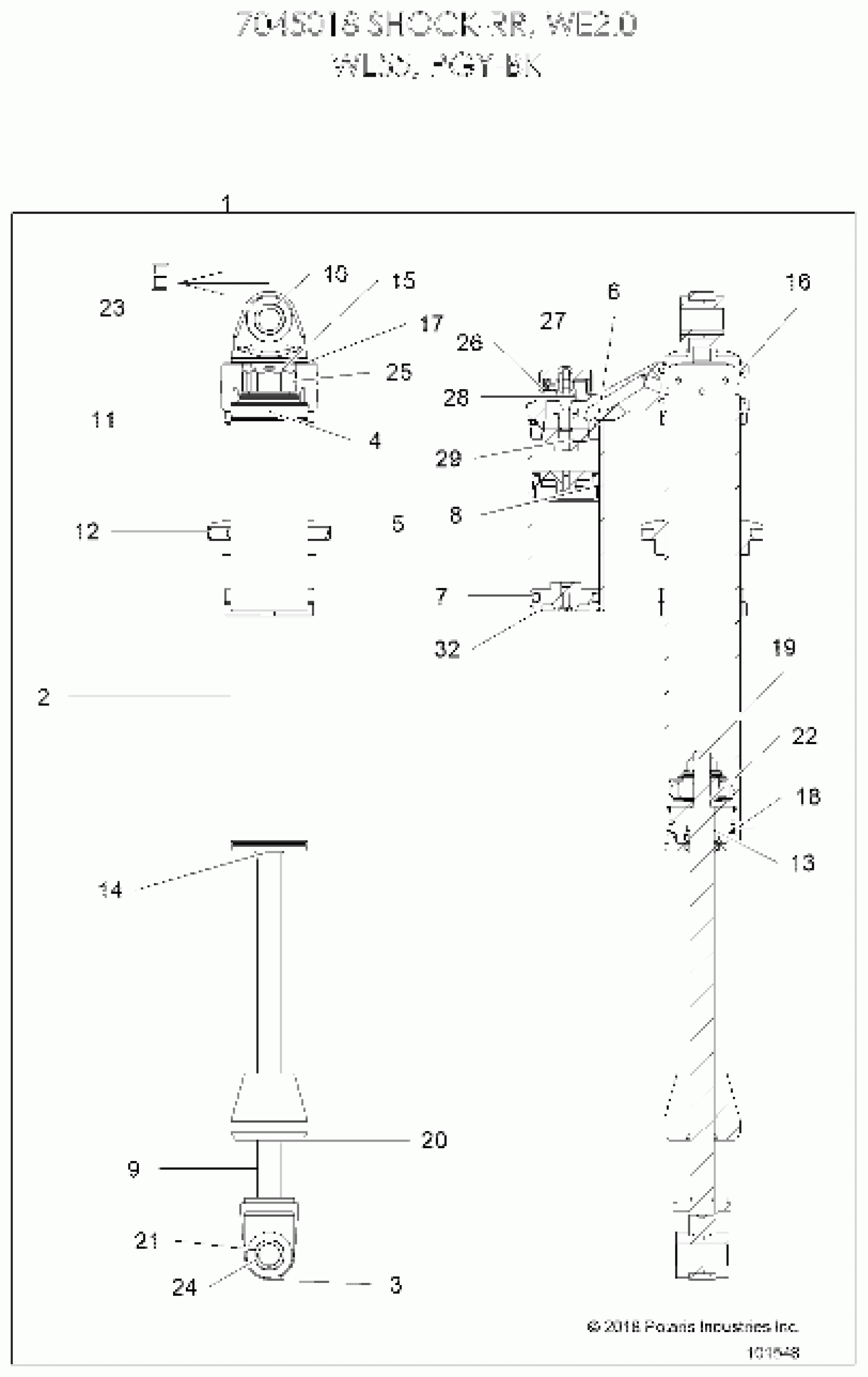

Polaris SPORTSMAN XP 1000 S 55" (R02) - A21SLZ95AE/AG SUSPENSION, SHOCK, REAR PIGGYBACK INTERNALS - A21SLZ95AE/AG (101548) Diagram

SHOCK-RR,WE2.0,WL55,PGY-BACK [INCL. ALL]

7045018

$652.12

Body, CO, 2.0 (Anodize Hard Clear)

1800918

$221.53

Shaft Loop, .625THD (Anodize Clear)

1800792

$169.99

Bridge, Wide 2.0 WER Adjuster

180921

Unavailable

Res Body, 2.0", 5.0L Wire Ring (Anodize Hard Clear)

-------

Unavailable

O-RING BODY LOOP

1800030

$2.02

O-RING, 2-324

1800184

$5.65

IFP PISTON ASM 1.750, W- BLEED

1800739

$44.99

Shaft, .625 Chrome Rod

-------

Unavailable

BUSHING

1800406

$5.65

JAMB NUT, 2.0IN ACME (CLEAR)

1800868

$43.99

Spring Adjuster 2.0 Acme 2.5ID Spring (Clear)

-------

Unavailable

ASM. SEAL HEAD, 2.0, PRESS- IN, STD SEALS

1800869

$47.99

wiper Cap, 2.00, Press In With Wiper (Clear)

-------

Unavailable

SCREW, 10X5/8 BTN SS (500603)

1800357

$3.19

O-RING, 2-226 1600018

1800863

$4.79

RING-RETAINING 1520119

1800862

$6.39

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$7.27

NUT, CRIMP (CASTLE) 42567

1800164

$9.59

Bump Stop, MCU, 2.00Dia x 1.75L (ISC 140174-N)

1800859

$77.44

Urethane Bushing

-------

Unavailable

7045018 Rear Piston ASM

-------

Unavailable

Steel Sleeve 1.15L (Zinc Blue)

-------

Unavailable

Steel Sleeve 1.36L (Zinc Blue)

-------

Unavailable

KNOB,CLICKER BLK (1000604)

1800418

$89.03

SPRING-COMP .025X.3, 40.5#

1800128

$10.39

BALL, DETENT 3/16"

1800127

$6.39

ASM-CLICKER STUD 404613

1800758

$29.99

ASM. CLICKER PISTON

-------

Unavailable

2.0 End Cap ASM.

-------

Unavailable
