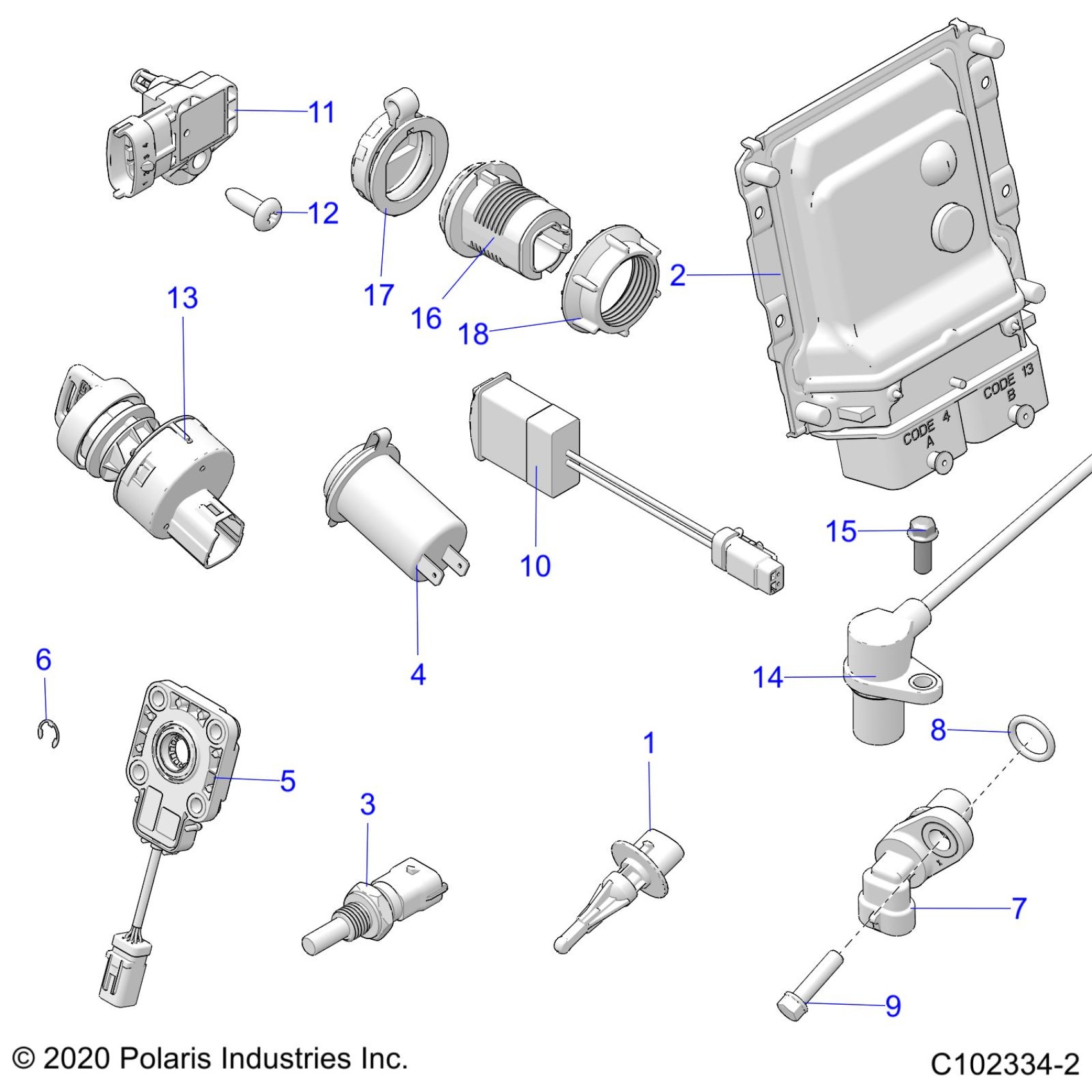

Polaris SPORTSMAN XP 1000 S 55" (R02) - A21SLZ95AE/AG ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A21SLZ95AE/AG (C102334-2) Diagram

Sensor, Air Temperature

2410687

$153.79

ECM-HARD,ME17,2CYL,250K

4014125

$749.99

SENSOR-THERMISTER

4010644

$91.97

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

SWITCH, ROTARY, 2 PIN RESISTIVE [GEAR POSITION]

7662383

$113.32

RING, RETAINING BASIC EXTERNAL

3233834

$10.32

SENSOR-SPEED,TRANS

4013908

$109.27

O-RING

3234302

$7.27

SCREW. TORX, PAN HEAD

3234329

$9.52

SWITCH-DRIVEMODE,3MODE,ATV

4016507

$134.99

SENSOR-TMAP DSS3-TF

2411528

$97.13

SCR-SENSOR TMAP [USED WITH T-MAP]

3131726

$3.17

SWITCH-KEY,3 POS,SEALED [INCL. COVER, IGNITION NUT]

4017237

$57.76

KEY SWITCH KEY COVER

5433534

$13.75

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

Sensor, Crank Position

2411589

$79.37

SCREW-HXFL-M6X1.0X16 8.8 ZY3 [USED WITH CRANK POSITION SENSOR]

7518548

$1.59

PLUG-HARNESS CHARGE PORT

2415198

$44.51

ASM-CHARGE PORT,BASE [INCL. PLUG, CAP, and NUT]

2415295

$44.51

CAP-CHARGE PORT

5417215

$12.94

NUT-CHARGE PORT

5456622

$44.51
