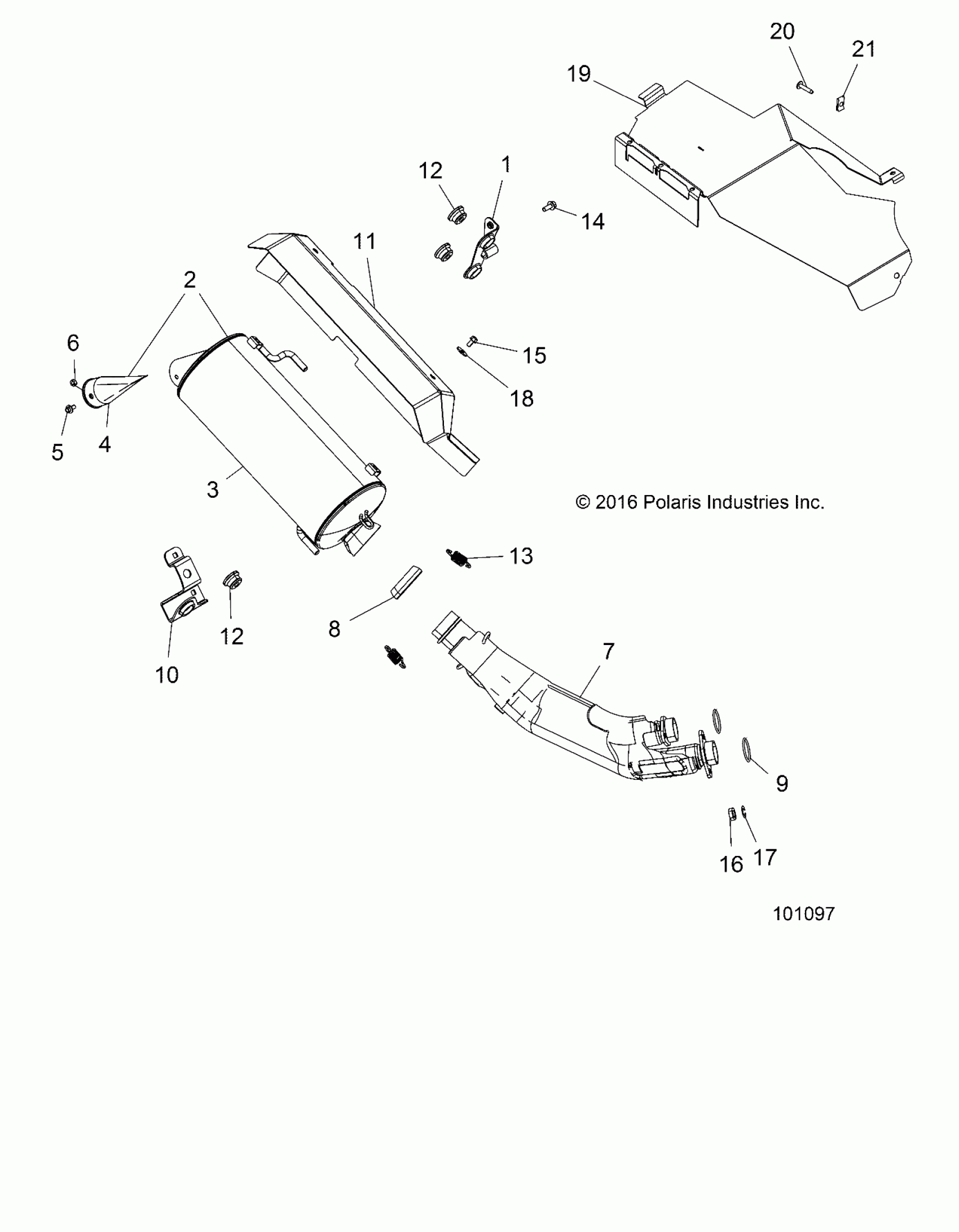

Polaris SPORTSMAN XP 1000 (R16) - A17SXD95A9/SXE95AC/AL ENGINE, EXHAUST - A17SXD95A9/SXE95AC/AL (101097) Diagram

#

Description
Price

1

WELD-SUPPORT,EXHAUST,BLK

1022584-067

$43.99

2

ASM-SILENCER

1262925

$554.39

3

WELD-SILENCER,BLK

1262926-489

$492.79

4

WELD-SPARK ARRESTOR,AVA875

1262123

$47.99

5

SCR-HXFL-M6X1.0X12 10.9 ZPC

7517257

$9.59

6

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

7

ASM-EXHAUST,PIPE,1000

1262934

$475.19

8

SEAL-EXHAUST

3610204

$35.99

9

GASKET-EXHAUST SEALING

5257995

$11.19

10

BRKT-EXHAUST,LOWER,SUPPORT,BLK

5262915-067

$39.99

11

SHIELD-EXHAUST

5262918

$63.99

12

ISOLATOR-EXHAUST,HANGER

5415785

$2.79

12

ISOLATOR-EXHAUST,HANGER

5415785

$2.79

13

SPRING-EXHAUST S.S. SHOTPEENED

7043727

$4.84

14

BOLT-M8X1.25X20,HXFLG

7518555

$2.39

15

SCR-1/4-20X1/2,TFM HW-M

7518490

$1.49

16

NUT-HEX-M8X1.25 8 ZPB.

7547076

$2.60

17

WASHER-LOCK M8X12.7ODX2MM ZY3

7556111

$1.59

18

WASHER-.28 X .81 X .06, ST-M

7555935

$2.39

19

SHIELD-FENDER

5263705

Unavailable

20

SCR-M6X1X40,TR/TX-BLK

7519001

$3.99

21

CLIP-"U",M6.0X1.0

7547366

$5.99
