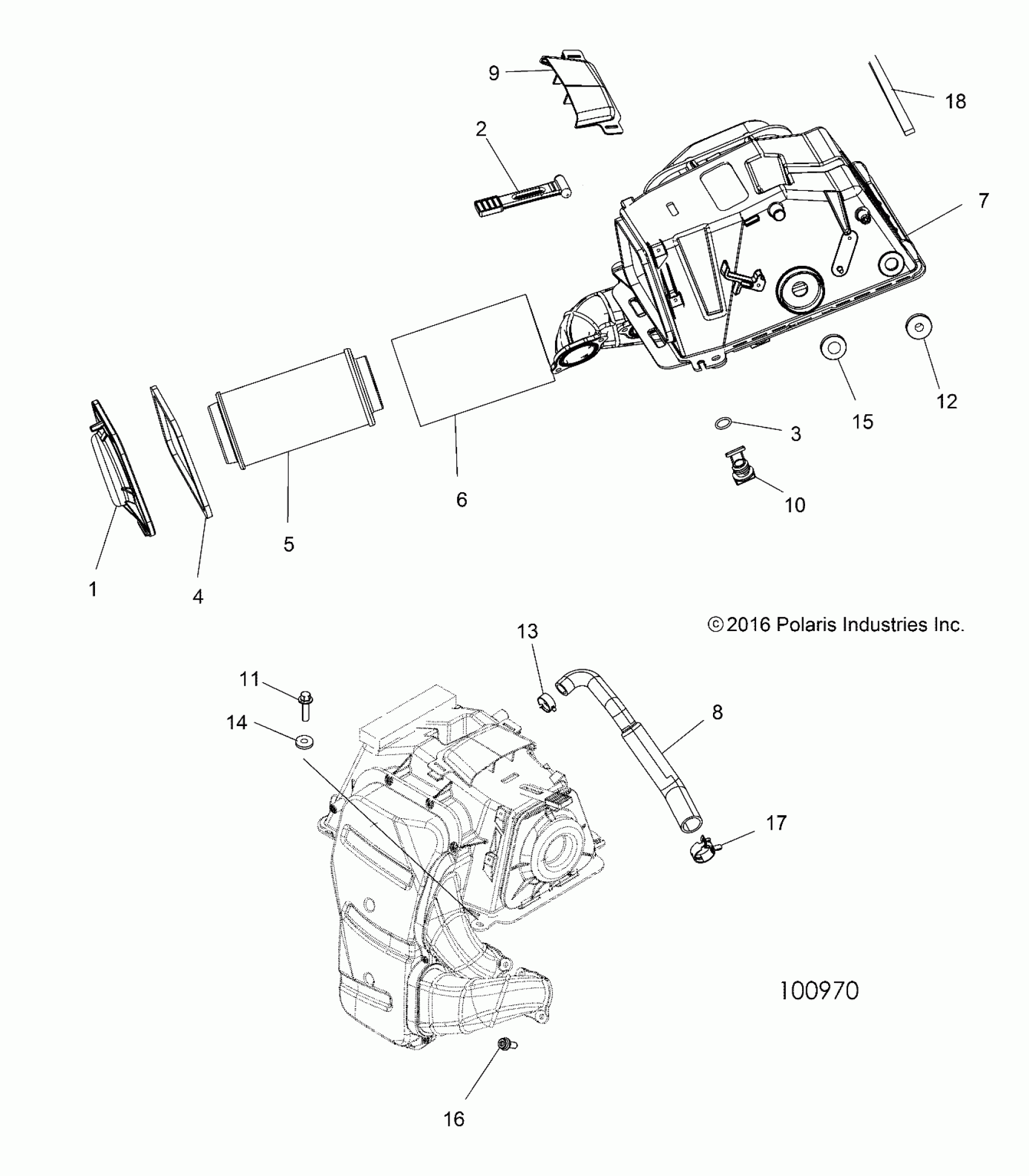

Polaris SPORTSMAN XP 1000 (R16) - A17SXD95A9/SXE95AC/AL ENGINE, AIR INTAKE - A17SXD95A9/SXE95AC/AL (100970) Diagram

Description

Price

COVER, AIRBOX

5438983

$39.99

STRAP-AIRBOX TOP

5433150

$24.27

O-RING

5414246

$1.59

SEAL, AIRBOX COVER

5813359

$6.79

FILTER, AIR INTAKE

7082101

Unavailable

FILTER-HD AIR INTAKE, 208MM HD OPTION

7083114

$47.99

Filter, Precleaner Sleeve

5811633

$11.99

ASM., AIR INTAKE, BOX W/RUNNERS

1240825

$167.99

HOSE, BREATHER, TWIN

5414322

$39.99

HOOD, AIR INTAKE

5414252

$39.99

PLUG, AIR BOX

5451429

$14.39

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

PLUG-AIR BOX,MUDDER

5415705

$3.19

CLAMP, HOSE

7081026

$7.99

Washer, Flat

7555859

$1.49

Grommet, Air Temp Sensor

5436346

$4.79

SCREW

7518803

$3.99

CLAMP, SPRINGBAND, BLACK

7080842

$7.19

SEAL-RUBBER 108MM

5522220-108

$6.79
