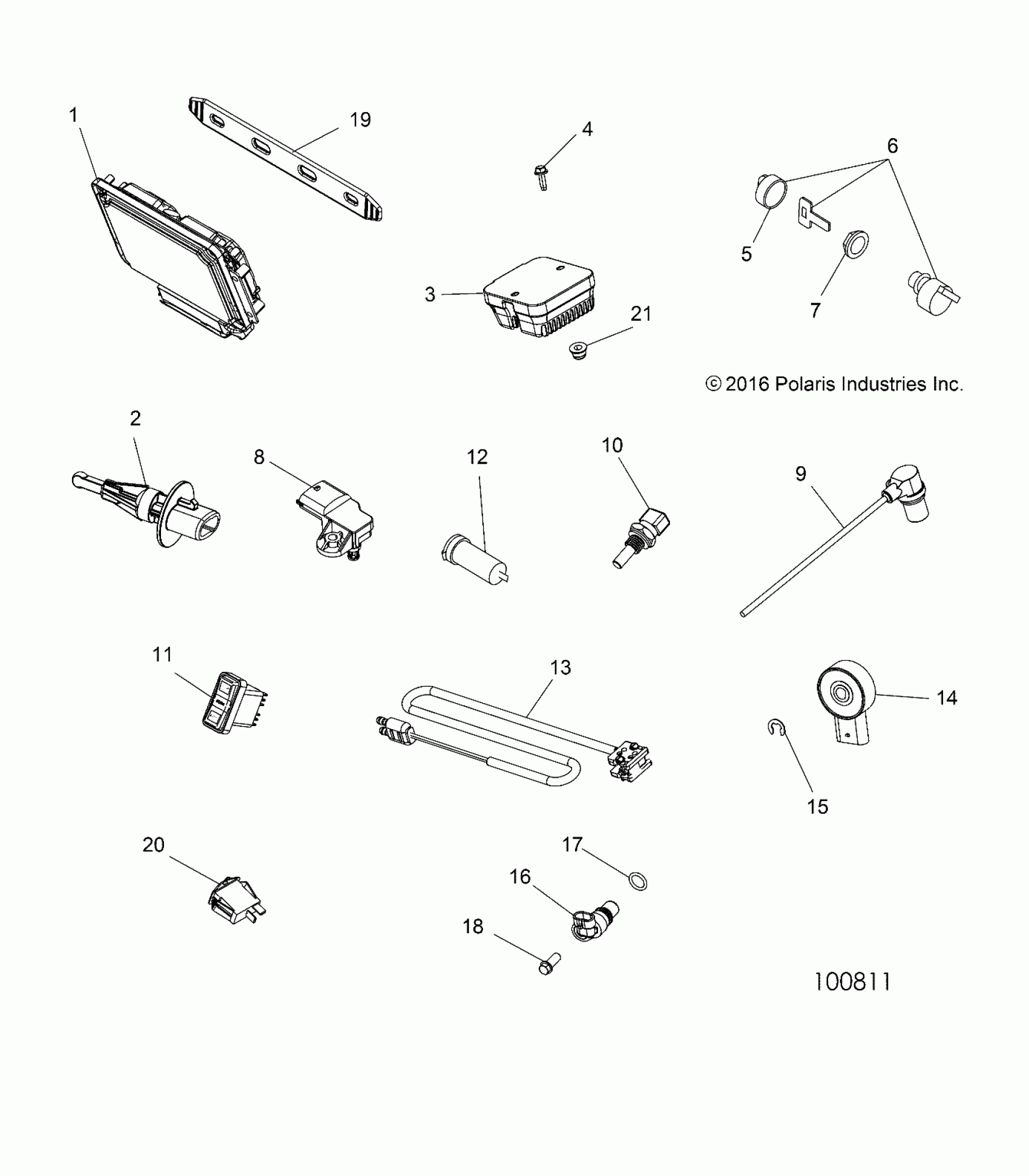

Polaris SPORTSMAN XP 1000 (R16) - A17SXD95A9/SXE95AC/AL ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A17SXD95A9/SXE95AC/AL (100811) Diagram

ECM-NO START,ME17

4014125

$694.99

Sensor, Air Temp

2410687

$143.99

REGULATOR-3PH,50A,SERIES,HISPD [TO 1/1/2017]

4014856

Unavailable

REGULATOR-3PH,50A,SERIES,HISPD [FROM 1/1/2017]

4016868

$123.99

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

KEY SWITCH KEY COVER

5433534

$12.35

SWITCH, KEY, 3 POSITION [INCL. 5][TO 9/26/2016]

4012165

$104.24

SWITCH-KEY,3 POSITION,SEALED [INCL. 5][FROM 9/26/2016]

4015033

Unavailable

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

SENSOR-TMAP DSS3-TF

2411528

$93.08

SCREW

3131753

$3.99

SCREW

7518548

$1.59

Sensor, Crank Position

2411589

$79.99

SENSOR-THERMISTER

4010644

$87.13

SWITCH-DRIVEMODE,3MODE,ATV

4016507

$107.99

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

KIT, BRAKE LIGHT SWITCH [FOR USE WITH MASTER CYLINDER 2203051][TO 6/1/2016]

2202794

$72.84

K-SWITCH,MECH,BRK,SEALED CONN [FOR USE WITH MASTER CYLINDER 2010444][FROM 6/1/2016]

2206566

$71.99

SWITCH [GEAR POSITION]

3233835

Unavailable

RING, RETAINING

3233834

$10.39

SENSOR-SPEED,TRANS

4013908

Unavailable

O-RING

3234302

$7.19

SCREW

3234329

Unavailable

STRAP, ECU

5414193

$27.99

SWITCH-WORKLIGHT,ON/OFF [A9]

4011074

$49.99

NUT-M6 FLANGE,NYLOC

7547274

$1.49
