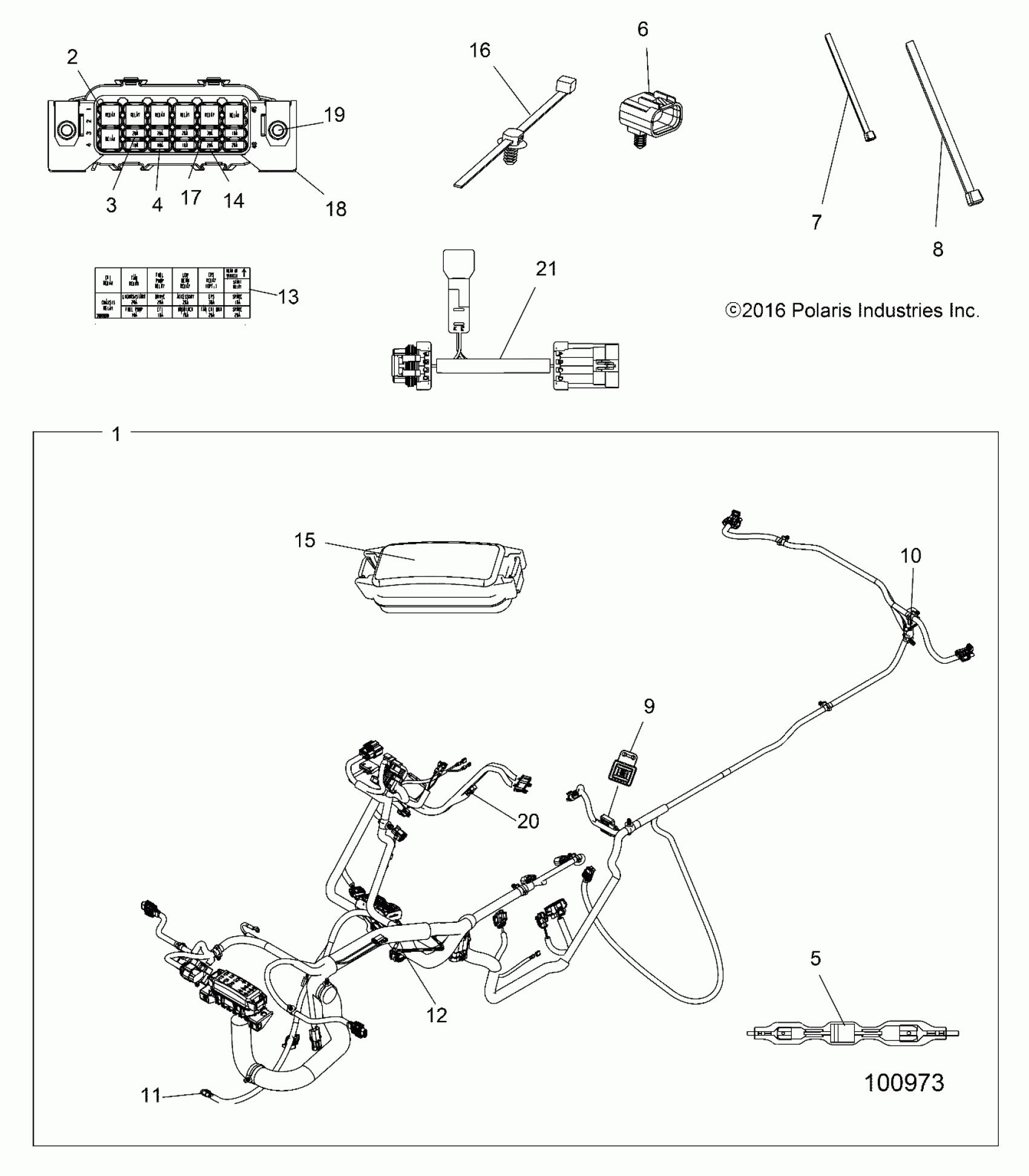

Polaris SPORTSMAN XP 1000 (R16) - A17SXD95A9/SXE95AC/AL ELECTRICAL, HARNESS - A17SXD95A9/SXE95AC/AL (100973) Diagram

HARNESS-MAIN,SPXP ETC [TO 9/26/2016]

2413575

$989.99

HARNESS-MAIN,SPXP ETC [FROM 9/26/2016]

2413824

$972.39

KIT, HARNESS, ENGINE TEMP

2878496

$59.99

KIT, HARNESS, TPS

2878498

$113.32

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

FUSE-PARK,20 AMP

2434017

Unavailable

FUSE-IGNITION,10 AMP

2434016

$4.79

DIODE, 6AMP

2411035

$51.99

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

MODULE, RESISTOR

4014055

Unavailable

COVER, TAILLIGHT, LED W/CLIP

4016259

$6.39

CAP, WINCH CONTACTOR

4014891

$7.99

Kit, Fusible Link, .8 MM

2202607

$39.99

Kit, Fusible Link, 1.0 mm

2202670

$35.99

LABEL, FUSE BOX

7185159

Unavailable

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

COVER, FUSEBOX

4015011

$55.99

SEAL, FUSE CENTER

5415598

$8.79

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

FUSE-MAIN,30 AMP

2434015

$7.19

BASE, FUSEBOX

4015457

$163.99

SCR-M6X1X14,PN/TX,TRI-LOB

7518914

$3.19

CAP, WINCH SWITCH

4014890

$8.79

HARNESS-JUMPER,TAILLIGHT [6/30/16 TO 9/26/16]

2413796

$35.99

CABLE-TIE,10-102MM,WEATH.-RES. [6/30/16 TO 9/26/16]

7080761

$2.39

DIODE-6 AMP [6/30/16 TO 9/26/16]

2410000

$35.99
