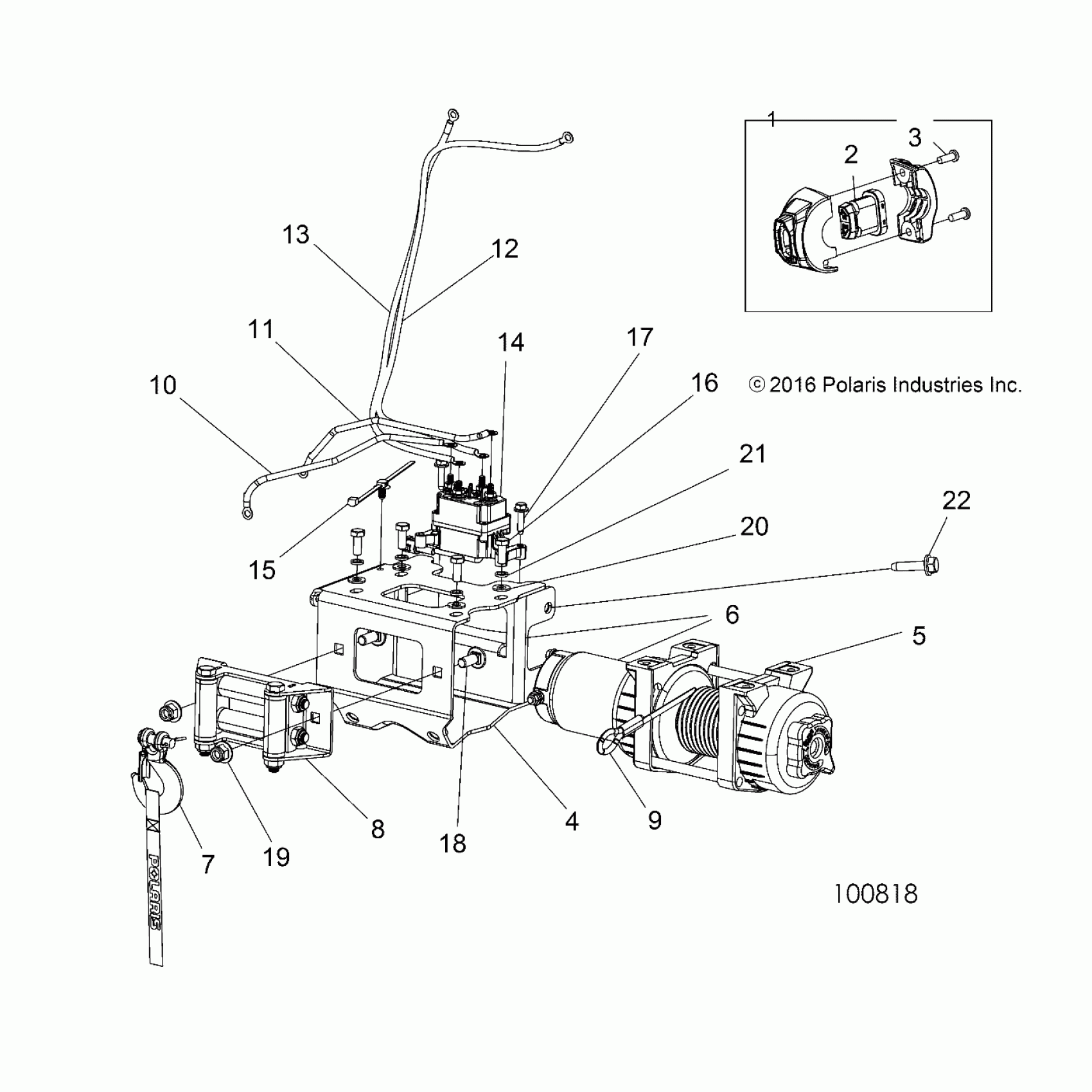

Polaris SPORTSMAN XP 1000 (R16) - A17SXD95A9/SXE95AC/AL BODY, WINCH - A17SXD95A9 Diagram

#

Description
Price

1

KIT, WINCH, SWITCH

2205636

$64.75

2

SWITCH, WINCH, ATV

2412948

$64.75

3

SCREW

7518238

$3.97

4

WELD-WINCH MT BRKT,CTR,ATV

1022577

$111.33

5

WINCH-POL2500,BT

2206563

$519.99

6

KIT, SERVICE, WINCH + BRACKET, 25

2205834

$399.99

7

HOOK-LATCH,WINCH

2411836

$10.44

7

STRAP-WINCH,HOOK

7082085

$1.99

8

ROLLER, FAIRLEAD

2411848

$80.94

9

CABLE, WINCH, STEEL

2878890

$44.43

10

CABLE, WINCH, YELLOW, 6 GA

4013468-300

$36.41

11

CABLE, WINCH, BLUE, 6 GA

4013469-300

$36.41

12

CABLE-POWER,WINCH,BLK #6,530MM

4013470-530

$36.41

13

CABLE-POWER,WINCH,RED #6,510MM

4013471-510WC

$36.41

14

CONTACTOR, WINCH

4015095

$104.49

15

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

16

Screw

7518097

$3.97

17

SCREW

7519342

$1.99

18

SCREW

7519372

$2.38

19

NUT, NYLOCK

7547423

$3.97

20

WASHER

7555770

$0.99

21

Washer, Lock

7556111

$1.59

22

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59
