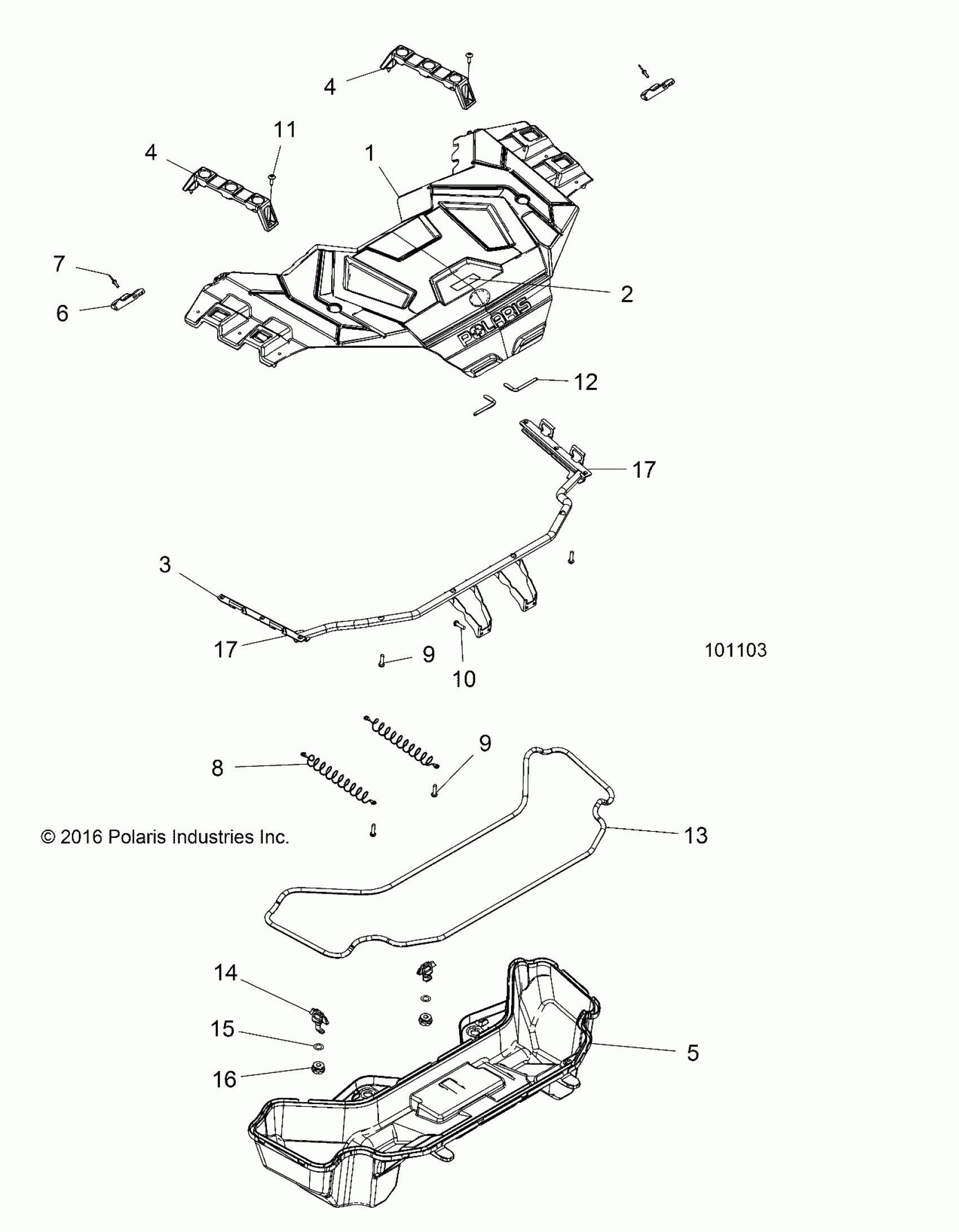

Polaris SPORTSMAN XP 1000 (R16) - A17SXD95A9/SXE95AC/AL BODY, FRONT RACK - A17SXD95A9/SXE95AC/AL (101103) Diagram

ASM-RACK,FRONT,BLK [INCL. RACK, SUPPORT, DECAL, EXTENDERS]

2636452-070

$396.83

RACK-FRONT,BLK

5452935-070

$138.89

DECAL-WARN,FR&RR RACK,120/240

7175448

Unavailable

WELD-RACK SUPPORT,FRONT,BLK

1022750-067

$89.99

EXTENDER-RACK,M.BLK

5633722-458

$49.99

EXTENDER-RACK,M.BLK

5633722-458

$49.99

ASM., FRONT STORAGE [INCL. 5,13-16]

----

Unavailable

STORAGE-FRONT,BLK [TO 5/17/2017]

5452965-070

$145.70

STORAGE-FRONT,BLK [FROM 5/17/2017]

5454684-070

$145.70

LATCH-RUBBER,LOWER

7081927

$35.71

RIVET-5/32 BULBEX-B

7621334

$1.49

CABLE-COVER,BOX,PRE-COIL

7081741

$36.41

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.76

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.76

SCR-TXPH-#14X3/4 HI/LO CLR

7519290

$3.97

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

PIN-HINGE,1/4

7662306

$11.11

SEAL-BOX,FRONT

5522201

$36.41

LATCH-1/4 TURN

7081730

$5.56

WASHER-.510X.840X.031 Y

7555919

$4.99

GROMMET-LATCH

5413428

$3.17

PLUG-BARBED,.625

7081085

$7.27

PLUG-BARBED,.625

7081085

$7.27
