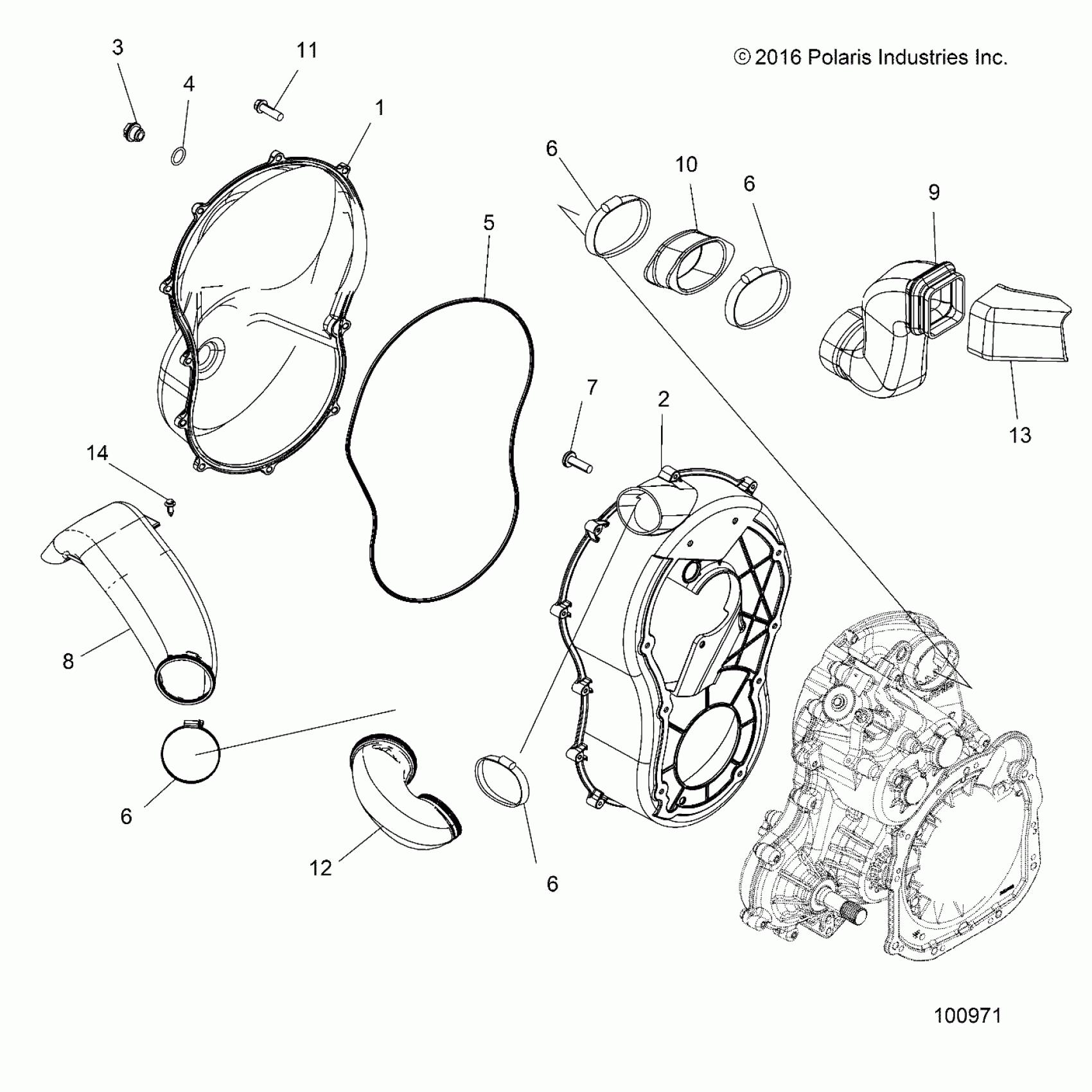

Polaris SPORTSMAN XP 1000 (R16) - A17SXD95A9/SXE95AC/AL BODY, CLUTCH COVER - A17SXD95A9/SXE95AC/AL (100971) Diagram

#

Description
Price

1

ASM., COVER, OUTER [INCL. OUTER COVER,3,4]

2633919

$139.99

2

COVER, CLUTCH INNER

5438127

$167.99

3

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

4

O RING-.364X.504X.07

5410542

Unavailable

5

SEAL, COVER, CLUTCH

5521802

$34.74

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

7

SCR-M6X1.0X14,PN/TX

7520472

$3.19

8

DUCT-OUTLET,CLUTCH

5453521

$55.99

9

DUCT-AIR INLET,CLUTCH,ETC

5452432

$55.99

10

Boot, Clutch, Inlet

5413177

$35.99

11

SCREW

7519849

$3.19

12

DUCT-CLUTCH,RUBBER

5416051

$43.99

13

BOOT, INLET, DUCT

5413516

$9.59

14

Rivet

7661855

$1.49
