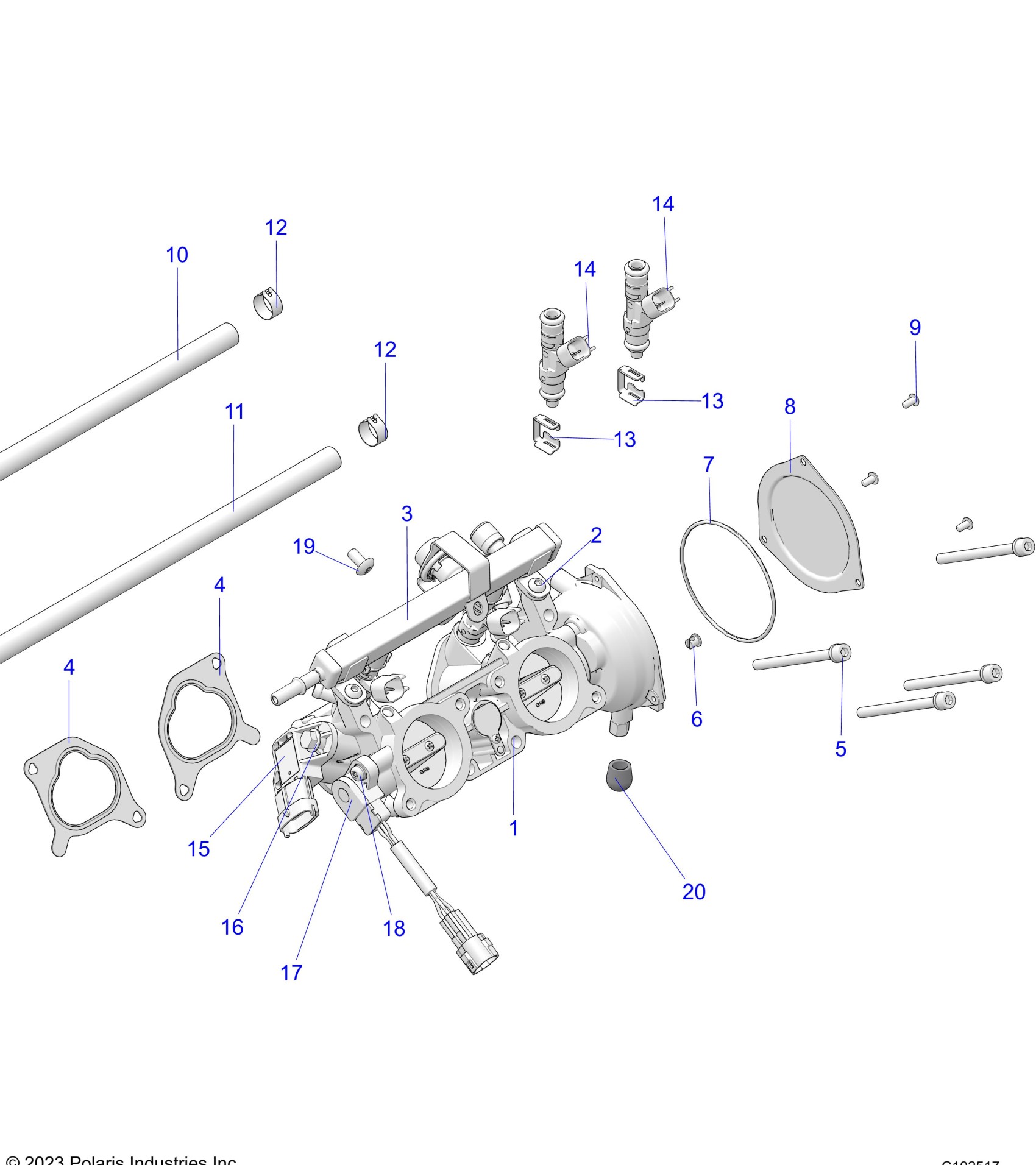

Polaris SPORTSMAN XP 1000 MUD (R03) - A25SXM95AL ENGINE, THROTTLE BODY - A25SXM95AL (C102517) Diagram

#

Description
Price

1

K-THROTTLE BODY [INCL. THROTTLE BODY, 1-3,6-9,13-18]

2208004

$999.99

2

BOLT, FUEL RAIL

3131716

$4.76

3

ASM., FUEL RAIL

----

Unavailable

4

GASKET, ITB

5814296

$13.75

4

GASKET, ITB

5814296

$13.75

5

SCREW

5137620

$5.56

6

CABLE GUIDE,MIKUNI BTM36/30

3130543

$32.37

7

O-RING, THROTTLE CAM COVER

5413599

$12.13

8

COVER, THROTTLE CAM

5262110

$15.37

9

SCREW

7519292

$0.79

10

FUEL HOSE-5/16 DPSAEJ30R9 56CM

----

Unavailable

11

FUEL HOSE-5/16 DPSAEJ30R9 71CM

----

Unavailable

12

CLAMP-HOSE, 9/16, SPRING-B

7080534

$1.59

12

CLAMP-HOSE, 9/16, SPRING-B

7080534

$1.59

13

CLIP-INJECTOR

3131725

$12.43

13

CLIP-INJECTOR

3131725

$12.43

14

INJECTOR-180G/MIN SINGLE CONE

1203568

$99.21

14

INJECTOR-180G/MIN SINGLE CONE

1203568

$99.21

15

SENSOR-TMAP DSS3-TF

2411528

$97.13

16

SCR-SENSOR TMAP [T-MAP SCREW]

3131726

$3.17

17

SENSOR, THROTTLE POSITION

2412634

$259.03

18

Screw [MAG Side] [TPS SCREW]

3131010

$4.76

19

SCR-BTNHD,M6X12,TX,TMPRF,188SS

7518808

$11.99

20

CAP-RUBBER,3/8 ID(10)

5412101

$5.65
