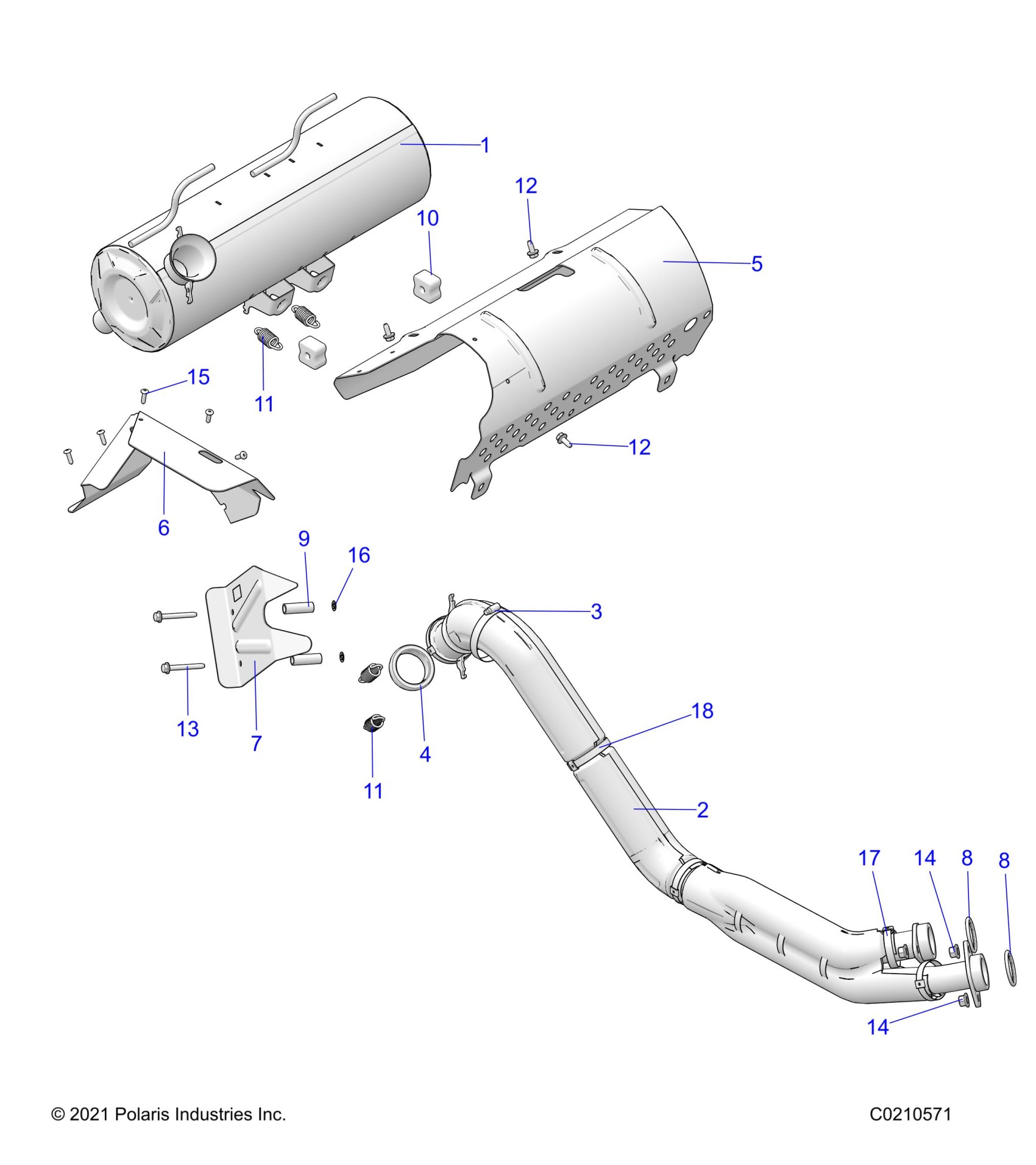

Polaris SPORTSMAN XP 1000 MUD (R03) - A25SXM95AL ENGINE, EXHAUST - A25SXM95AL (C0210571) Diagram

#

Description
Price

1

BOLT-1/2-20X5/8 HXHDCAP-GR5-P

7512666

$2.39

1

WASHER-CLEAN OUT .51X.75X.09

7556230

$1.49

1

WELD-EXHAUST SILENCER,BLK [INCLUDES CLEAN OUT BOLT, WASHER]

1262970-489

$483.99

2

ASM-EXHAUST PIPE,TWIN [INCLUDES SHIELDS, 3]

1263072

$312.39

3

CLAMP-WORM DRIVE,.44WX2.75 DIA

7080809

$9.59

4

SEAL, EXHAUST

3610179

$15.99

5

Shield, Box, Storage

5252266

$95.99

6

SHIELD, EXHAUST

5258649

$47.99

7

Shield, Exhaust Spring

5253865

$19.99

8

GASKET-EXHAUST SEALING,46.50

5257995

$11.19

8

GASKET-EXHAUST SEALING,46.50

5257995

$11.19

9

Spacer, Exhaust Shield Spring

5336190

$3.99

10

GROMMET, SILENCER, MOUNT

5413383

$4.79

11

SPRING-EXHAUST S.S. SHOTPEENED

7043727

$4.84

11

SPRING-EXHAUST S.S. SHOTPEENED

7043727

$4.84

12

BOLT,M6X1.0X15,HXFLG,TAP/T-OD

7518513

$4.79

12

BOLT,M6X1.0X15,HXFLG,TAP/T-OD

7518513

$4.79

13

SCR-HXFL-M6X1.0X50 TDFM ZPB

7519090

$3.99

14

NUT-HXFL-M8X1.25 A493 EM6340

7547803

$3.99

14

NUT-HXFL-M8X1.25 A493 EM6340

7547803

$3.99

15

RIVET-3/16-.090-.290

7661637

$1.49

16

RETAINER-BOLT,1/4-20

7670154

$1.49

17

CLAMP-HEAT SHIELD,EXHAUST

7081156

$7.19

18

CLAMP, HEAT SHIELD,EXHAUST

7081579

$7.19
