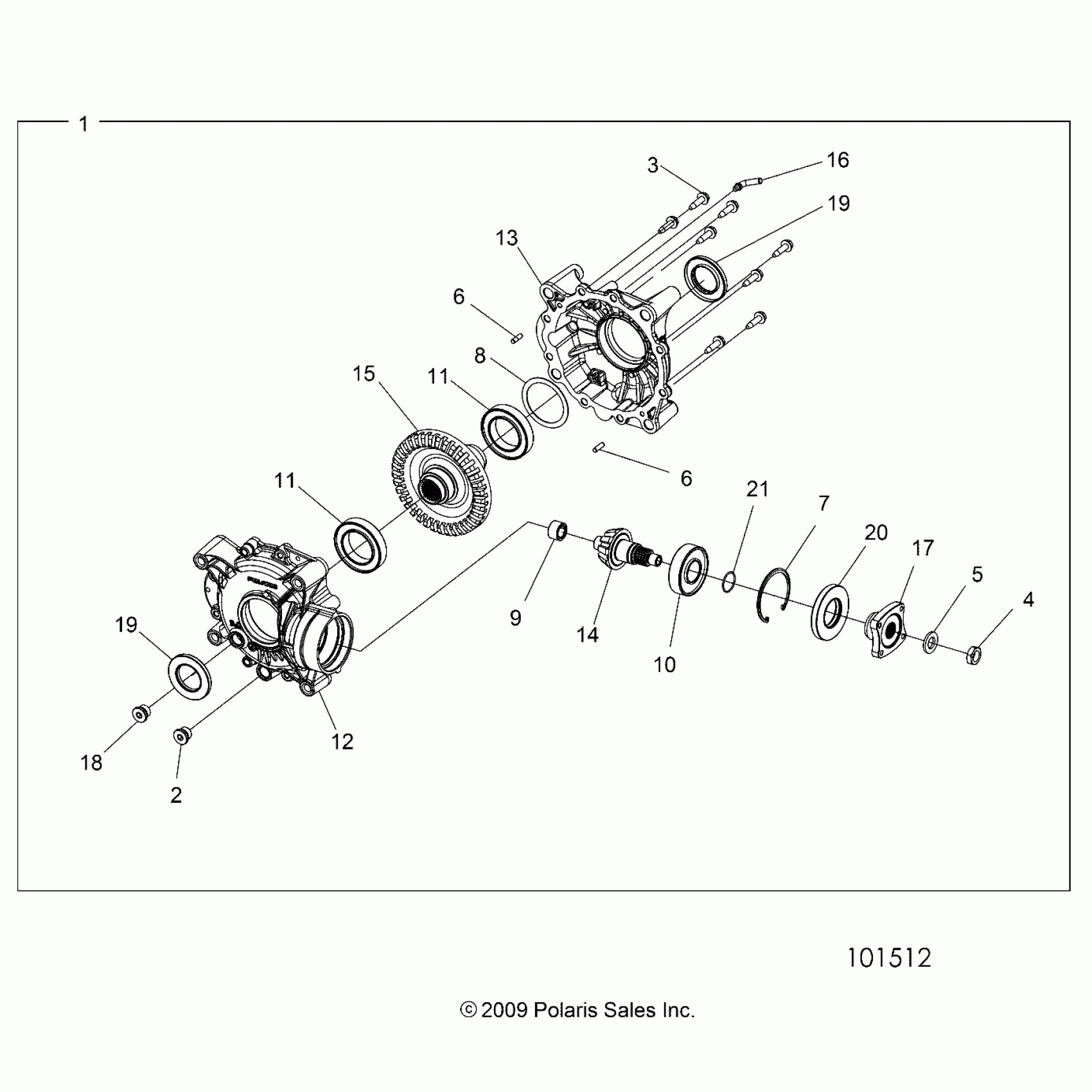

Polaris SPORTSMAN XP 1000 MUD (R03) - A25SXM95AL DRIVE TRAIN, REAR GEARCASE INTERNALS - A25SXM95AL (101512) Diagram

ASM-REAR DRIVE,113.4MM [INCL. ALL]

1332802

$558.93

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

NUT, HEX M16 X 2.0

3234776

$10.39

CUP WASHER, LOCKING 17 X 30

3234777

$43.99

PIN, DOWEL 6 X 20

3234330

$7.19

PIN, DOWEL 6 X 20

3234330

$7.19

RING, RETAINING BEVELED INTERNAL 2.835

3234158

$23.99

SHIM 3.1 X 2.5

3233581

$39.59

BEARING, NEEDLE, DRAWN SHELL .75 X 1.0 X 0.625

3234799

$15.99

BEARING, BALL 6306 STD 30X72X19

3233714

$31.99

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

CASE, MAIN

3234926

$223.99

SUBASSEMBLY, COVER LH [INCL. 6]

3234937

$147.99

SHAFT, PINION, 10T

-------

Unavailable

GEAR, 37T

-------

Unavailable

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$9.59

COUPLER

3234782

$99.99

PLUG, M18 X 1.5 [CHECK/FILL]

3234755

$27.99

SEAL, TRIPLE LIP, VITON HELIX 40X70X7

3235052

$31.99

SEAL, TRIPLE LIP, VITON HELIX 40X70X7

3235052

$31.99

SEAL, TRIPLE LIP

3235051

$31.99

O-RING 2-023 NITRILE

3234785

$9.59
