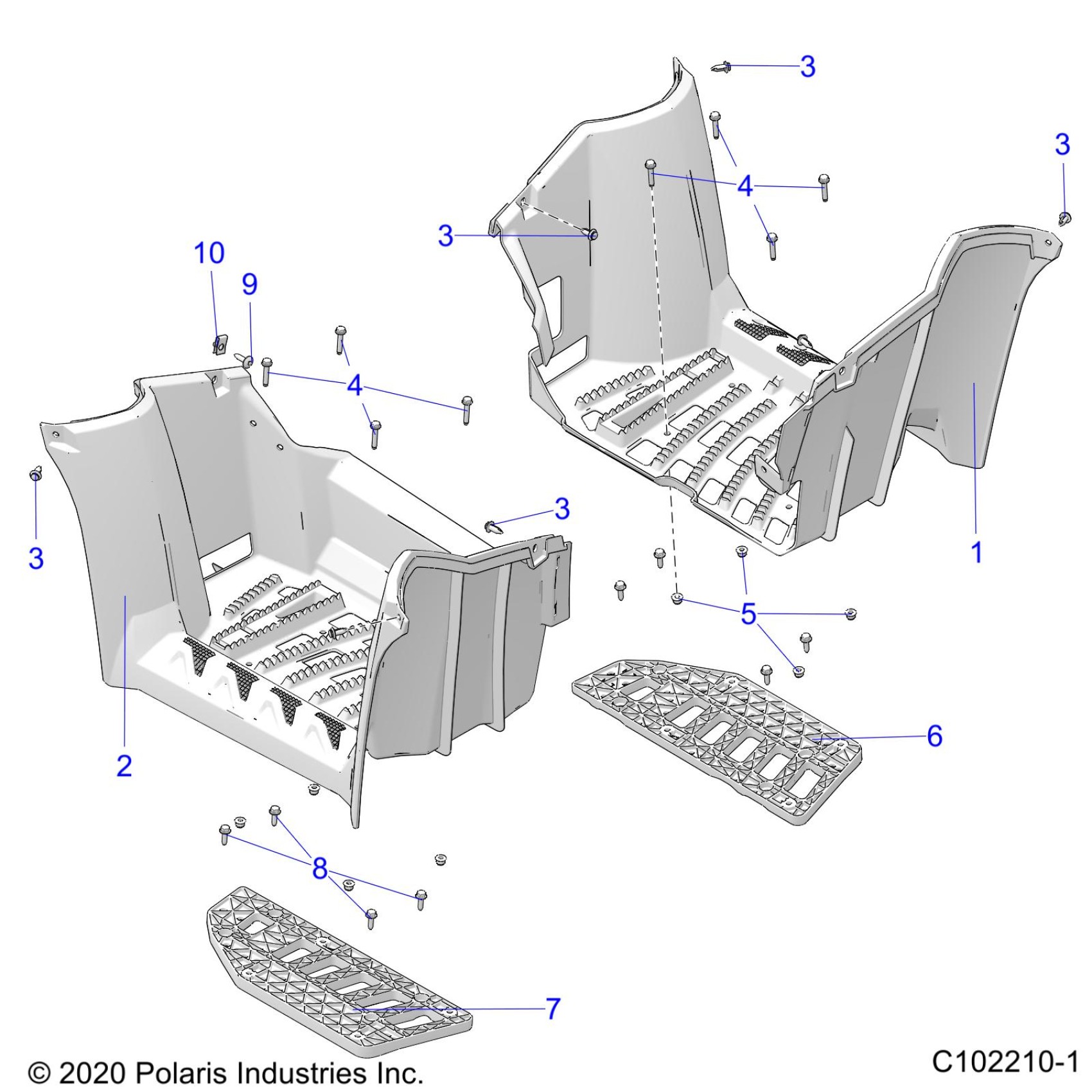

Polaris SPORTSMAN XP 1000 MUD (R03) - A25SXM95AL BODY, FOOTWELLS - A25SXM95AL (C102210-1) Diagram

#

Description

Price

1

FOOTWELL-LH,MOD,BLK

5451916-070

$227.99

2

FOOTWELL-RH,MOD,BLK

5453690-070

$219.99

3

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

3

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

3

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

3

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

3

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

4

SCR-HXFL-M6X1.0X30,RIE,DGPNT

7519202

$3.99

4

SCR-HXFL-M6X1.0X30,RIE,DGPNT

7519202

$3.99

5

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

6

Support, Footpad, LH

5437600

$39.99

7

SUPPORT, FOOTPAD, RH

5437601

$39.99

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

9

SCR-1/4-20X1.00 TR/TX-M

7517685

$1.59

10

NUT-CHIMNEY 1/4-20,GR-5

7670096

$1.59
