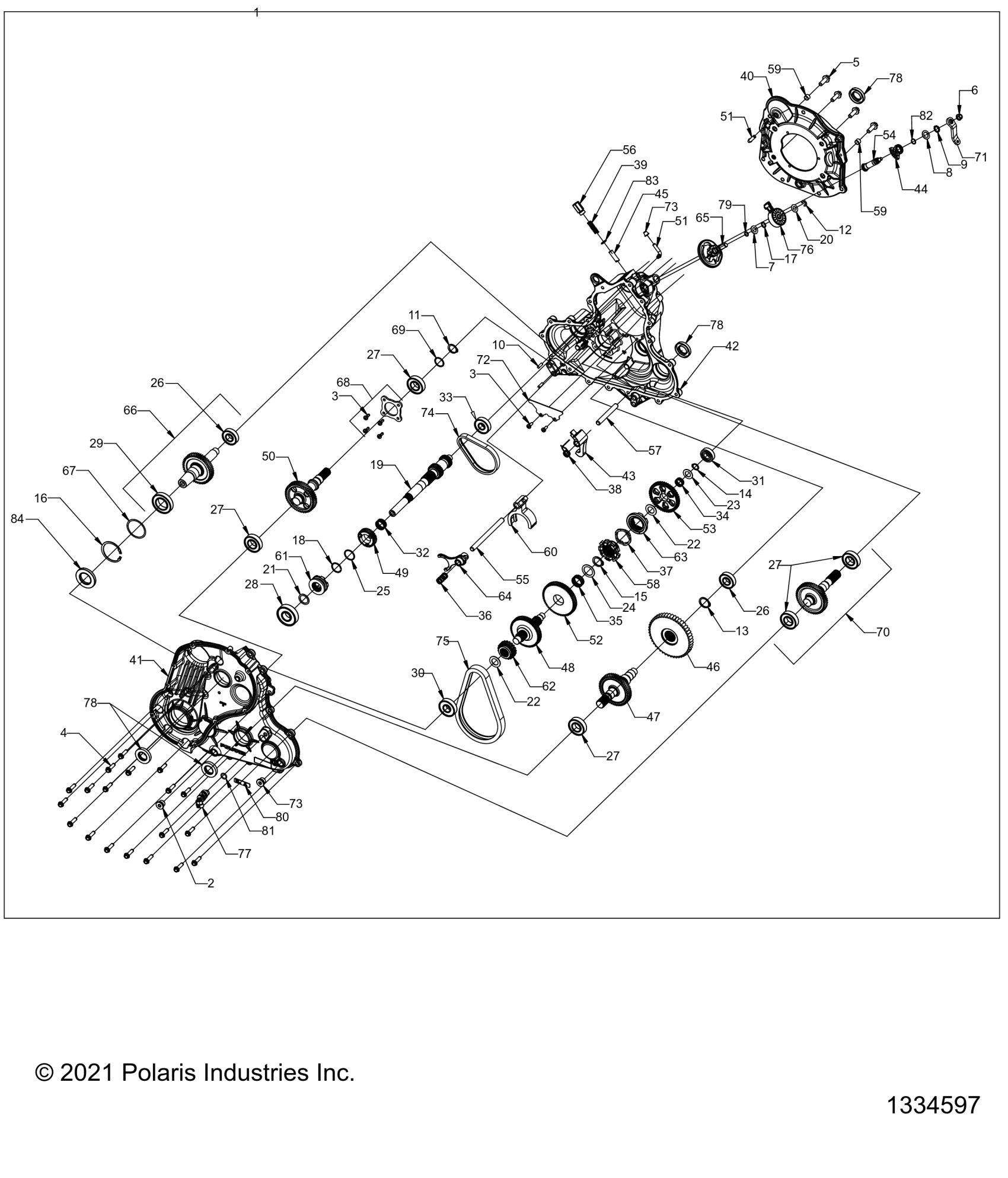

Polaris SPORTSMAN XP 1000 MUD R01 - A26SXM95AR DRIVE TRAIN, MAIN GEARCASE - A26SXM95AR (1334597) Diagram

#

Description
Price

1

ASM-TRANS,BOSS/LUK,1/1,SUPLOW

1334597

$2,799.99

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

3234309

$7.14

3

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

3234309

$7.14

4

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

5

SCREW, HEX FLANGE HEAD, M10 X 1.5 X 30

3234634

$13.49

6

NUT, LOCK, HEX FLANGE NYLON 5/16-24

3233961

$3.32

7

WASHER, THRUST, 0.5 X 0.937 X 0.063

3234636

$7.94

8

WASHER, THRUST, .625 X 1.000 X 0.063

3234637

$11.11

9

WASHER, RIBBED

3235508

$3.97

10

PIN, DOWEL 6 X 20

3234330

$7.14

11

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

12

RING, RETAINING BASIC EXTERNAL

3233834

$10.32

13

RING RETAINING, IRR 7200-118

3233699

$7.27

14

RING, RETAINING, EXTERNAL SHR-66

3234318

$3.17

15

RING, RETAINING BASIC, EXTERNA

3234327

$7.14

16

RING, RETAINING BASIC, INTERNAL, 62MM

3234741

$9.52

17

RING, RETAINING BASIC, EXTERNAL, SHR-50

3234639

$10.32

18

RING, RETAINING, EXTERNAL USC-112

3234641

$13.75

19

SHAFT, INPUT 25T

3236308

$375.24

20

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

21

WASHER, THRUST 1.300 X 0.995 X 0.065

3234248

$9.52

22

SHIM, 1.35 OD X 0.818 ID

3234643

$36.41

22

SHIM, 1.35 OD X 0.818 ID

3234643

$36.41

23

SHIM, 1.17 OD X 0.675 ID

3234644

$13.75

24

WASHER, THRUST, 1.568 OD X .1.110 ID

3234646

$23.81

25

WASHER, THRUST, � 33 X � 29 X 1.5

3234757

$11.11

26

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

26

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

28

BEARING

3233020

$47.62

29

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.68

30

BEARING BALL,6304STD 20X52X15

3234651

$15.87

31

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.78

32

BEARING, NEEDLE, SPLIT CAGE

3234759

$15.87

33

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.87

34

BEARING, NEEDLE, CAGE ASSY 20 X 24 X 10

3234655

$15.87

35

BEARING, NEEDLE, 28 X 33 X 13

3234656

$15.87

36

SPRING, COMPRESSION, 0.648 O.D. X 1.33

3234687

$8.89

37

SPRING, WAVE, 1.60 ID X 0.375

3234688

$10.32

38

SPRING, PARK PAWL, TORSION

3234787

$28.32

39

SPRING, COMPRESSION, 0.45 OD X 1.58

3234790

$24.27

40

BELLHOUSING, MACH

3235196

$49.99

41

GEARCASE GTO , COVER, MACH.

3235614

$554.99

42

GEARCASE, MAIN, GTO MACH

3235615

$479.99

43

PAWL, PARK

3239339

$52.60

44

GEAR, SECTOR, 38T

3234694

$35.54

45

BULLET DETENT

3234695

$44.99

46

SPROCKET, 47 TOOTH

2204332

$204.24

47

SHAFT, OUTPUT REAR

3235505

$462.21

48

SHAFT, REVERSE, 61T

3235612

$222.60

49

GEAR, HELICAL 33T

3235613

$128.87

50

SHAFT, INPUT

3236557

$242.84

51

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$10.51

51

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$10.51

52

GEAR, 67T

3234706

$93.08

53

SPROCKET 48T 6-FACE

3236309

$52.60

54

SHAFT, SHIFT, BELLCRANK

3234712

$75.99

55

Rail, Shift, Shaft

3234714

$28.32

56

PLUG, DETENT

3234715

$35.71

57

RAIL, PARK SHAFT

3234716

$28.32

58

DOG, ENGAGEMENT, GTO, LOW

3234718

$186.17

59

PIPE, KNOCK

3234765

$13.75

59

PIPE, KNOCK

3234765

$13.75

60

FORK, SHIFT

3236310

$93.08

61

DOG, ENGAGEMENT, GTO, HIGH

3235190

$87.13

62

Sprocket, 19T

2204331

$104.99

63

DOG, ENGAGEMENT, GTO, REV/LOW

3235341

$182.13

64

FORK, SHIFT

3235342

$89.03

65

SUBASM., SWITCH SHAFT

3234767

$125.46

66

SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#46 & #25)

3235191

$365.74

67

KIT, GTO, PRIMARY SHIM PACK

2204268

$39.68

68

SUBASSY BEARING COVER W/SCREWS (#3)

3235198

$26.17

69

KIT, LUK, INPUT SHAFT SHIM PACK

2204343

$38.08

70

SUBASSY, OUTPUT, FRONT W/BEARINGS (#27)

3235506

$351.49

71

BELLCRANK, 15T SPLINE

3234724

$28.32

72

Deflector, Oil

3234725

$13.75

73

PLUG, M18 X 1.5

3234755

$27.78

73

PLUG, M18 X 1.5

3234755

$27.78

74

CHAIN, SILENT, TYPE 103 .25P X .48W X 58L

3235633

$267.13

75

CHAIN SILENT, 0.75 X .375P X 64P

3235245

$246.99

76

SWITCH, ROTARY, 2 PIN RESISTIVE

7662383

$113.32

77

SENSOR-SPEED,TRANS

4013908

$109.27

78

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$36.41

78

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$36.41

78

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$36.41

79

O-RING - N70, 9.5 MM X 2 MM

3236171

$11.99

80

LABEL, OIL

2877606

$23.74

81

O-RING, -113 VITON

3233840

$11.32

82

O-RING, -014 VITON

3233828

$6.87

83

O-RING, 0.53 I.D X 0.082 WIDE

3234729

$13.75

84

SEAL, 35 X 62 X 8

3234769

$44.51
