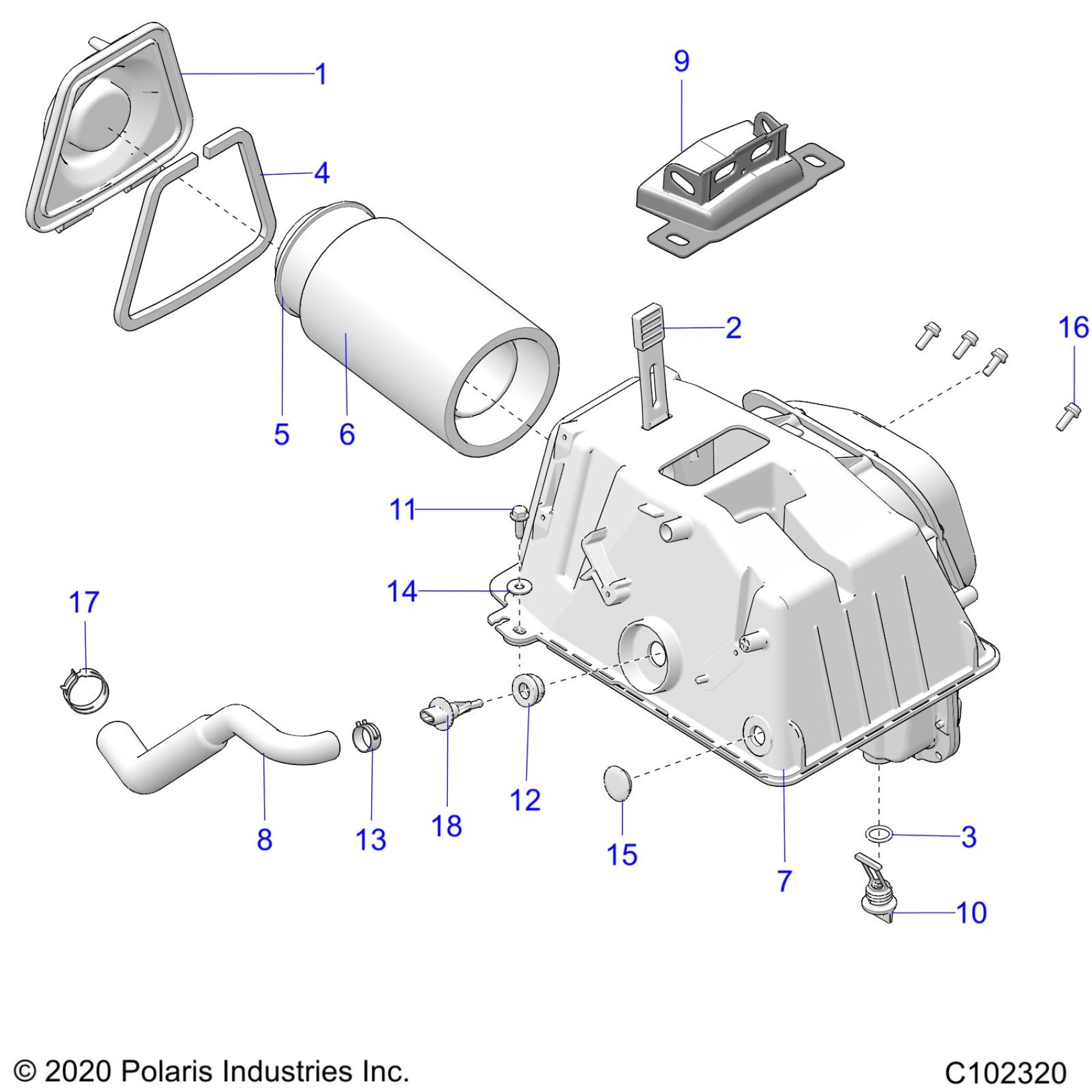

Polaris SPORTSMAN XP 1000 HUNTER EDITION (R02) - A24SXD95A9 ENGINE, AIR INTAKE - A24SXD95A9 (C102320) Diagram

Description

Price

COVER, AIRBOX

5438983

$39.99

STRAP-AIRBOX TOP

5433150

$24.27

O-RING

5414246

$1.59

SEAL, AIRBOX COVER

5813359

$6.79

FILTER, AIR INTAKE

7082101

Unavailable

FILTER-HD AIR INTAKE, 208MM HD OPTION

7083114

$47.99

Filter, Pre-Cleaner, Sleeve

5811633

$11.99

ASM., AIR INTAKE, BOX W/RUNNERS

1240825

$167.99

HOSE, BREATHER, TWIN

5414322

$39.99

HOOD, AIR INTAKE

5416841

$27.99

PLUG, AIR BOX

5451429

$14.39

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

GROMMET, AIR TEMPERATURE SENSOR

5436346

$4.79

CLAMP-HOSE,SPRING .81

7081026

$7.99

WASHER-FL .281X.750X.062-Y

7555859

$1.49

PLUG-AIR BOX, MUDDER

5415705

$3.19

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.99

SPRINGBAND-CLAMP 29/12,BLK

7080842

$7.19

Sensor, Air Temperature

2410687

$143.99
