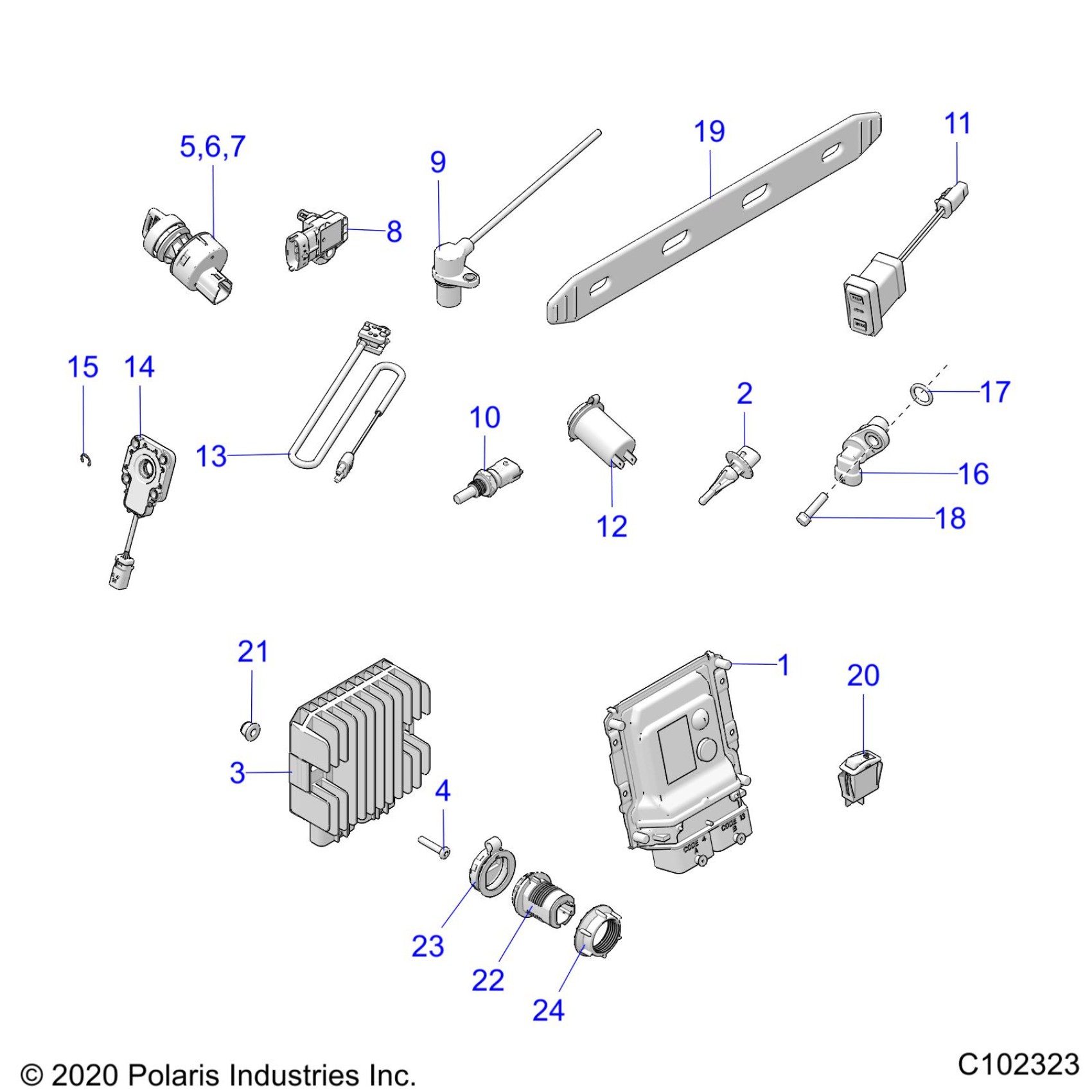

Polaris SPORTSMAN XP 1000 HUNTER EDITION (R02) - A24SXD95A9 ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A24SXD95A9 (C102323) Diagram

Description

Price

ECM-HARD,ME17,2CYL,250K

4014125

$749.99

Sensor, Air Temperature

2410687

$153.79

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$156.74

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.99

KEY COVER-KEYSWITCH

5458344

$13.75

SWITCH-KEY,3 POS,SEALED [INCL. 5,7]

4080413

$62.21

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

SENSOR-TMAP DSS3-TF

2411528

$97.13

SCR-SENSOR TMAP

3131753

$3.97

Sensor, Crank Position

2411589

$79.37

SCREW-HXFL-M6X1.0X16 8.8 ZY3

7518548

$1.59

SENSOR-THERMISTER

4010644

$91.97

SWITCH-DRIVEMODE,3MODE,ATV

4016507

$134.99

RECEPTACLE-POD MNT,12 VOLT

4080487

$36.41

KIT, BRAKE LIGHT SWITCH

2202794

$72.84

SWITCH, ROTARY, 6-PIN ITW [GEAR POSITION]

3233835

$142.49

RING, RETAINING BASIC EXTERNAL

3233834

$10.32

SENSOR-SPEED,TRANS

4013908

$109.27

O-RING

3234302

$7.27

SCREW. TORX, PAN HEAD

3234329

$9.52

STRAP, ECU

5414193

$27.78

SWITCH, WORK LIGHT, ON/OFF

4011074

$49.99

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

ASM-CHARGE PORT,BASE [INCL. 22-24]

2415295

$44.51

PLUG-HARNESS CHARGE PORT

2415198

$44.51

CAP-CHARGE PORT

5417215

$12.94

NUT-CHARGE PORT

5456622

$44.51
