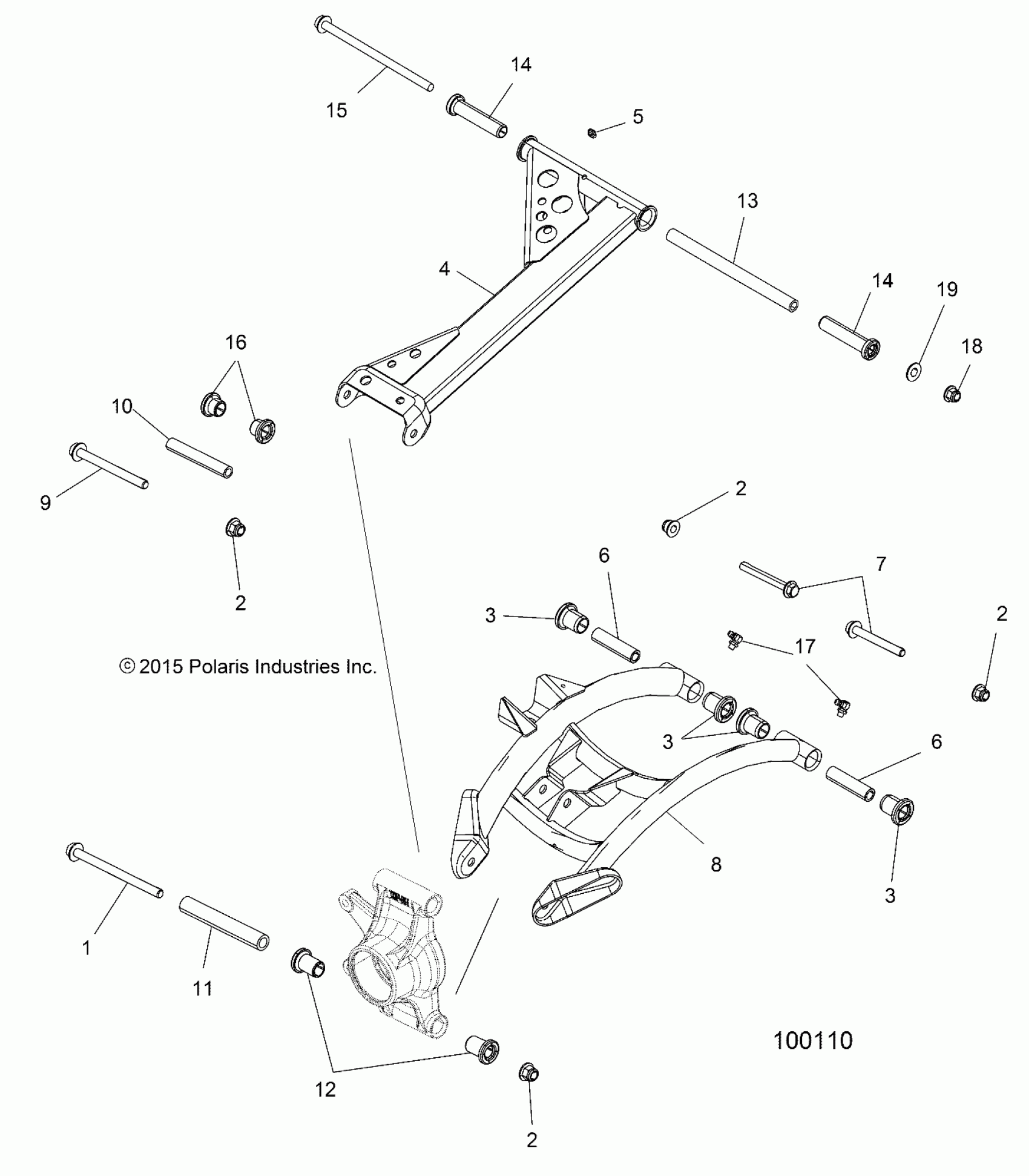

Polaris SPORTSMAN XP 1000 HIGH LIFTER (R06) - A19SXM95AL SUSPENSION, REAR - A19SXM95AL Diagram

#

Description
Price

1

BOLT, FLANGE

7518467

$5.59

2

Nut, Flange

7547313

$1.49

2

Nut, Flange

7547313

$1.49

2

Nut, Flange

7547313

$1.49

2

Nut, Flange

7547313

$1.49

3

BUSHING-STANDARD,ORV

5439874

$2.39

3

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

3

BUSHING-STANDARD,ORV

5439874

$2.39

3

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

3

BUSHING-STANDARD,ORV

5439874

$2.39

3

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

4

WELD-UCA,REAR,LH,BLK

1017216-067

Unavailable

4

WELD-UCA,REAR,RH,BLK

1017217-067

Unavailable

5

FITTING, LUBRICATING

7080433

$1.49

6

SHAFT, A-ARM

5137346

$14.39

6

SHAFT, A-ARM

5137346

$14.39

7

BOLT, FLANGE

7518466

$4.79

8

WELD-LCA,REAR,LH,BLK

1021189-067

$99.99

8

WELD-LCA,REAR,RH,BLK

1021190-067

$111.99

9

BOLT, FLANGE

7518675

$5.59

10

SHAFT, PIVOT

5137590

$8.79

11

SHAFT, A-ARM, LOWER CONTROL ARM

5136473

Unavailable

12

BUSHING, LOWER CONTROL ARM

5437651

$6.39

13

SHAFT, PIVOT

5137594

$8.79

14

BUSHING, A-ARM, LONG

5436973

$5.19

14

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

14

BUSHING, A-ARM, LONG

5436973

$5.19

14

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

15

SCR-HXFL-M10X1.25X235 10.9 ZOD

7519086

$27.99

16

BUSHING-STANDARD,ORV

5439874

$2.39

16

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

17

FITTING, ZERK

7080510

$5.59

18

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

19

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99
