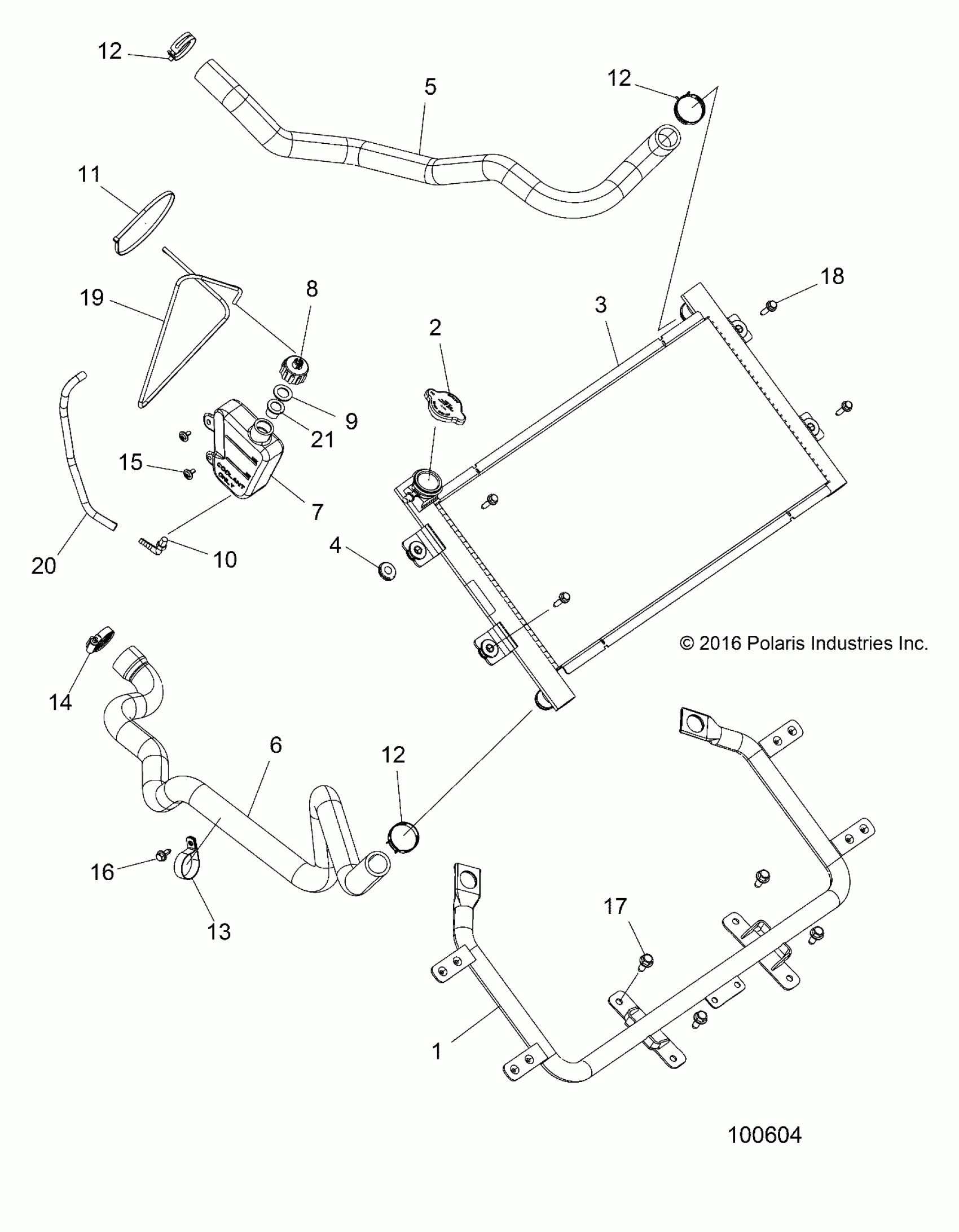

Polaris SPORTSMAN XP 1000 HIGH LIFTER (R06) - A19SXM95AL ENGINE, COOLING SYSTEM, RADIATOR - A19SXM95AL Diagram

WELD-RADIATOR SUPPORT

1021184

$99.99

CAP-PRESSURE

1240466

$55.99

ASM-RADIATOR,FLAT MNT [INCL. CAP, GROMMET AND INSERT]

1240922

$495.92

ASM-GROMMET AND INSERT

5413509

$15.99

HOSE-COOLANT,ENGINE IN

5415399

$43.99

HOSE-COOLANT,ENGINE OUT

5415831

$71.99

TANK-SURGE

5436936

$75.99

CAP-OVERFLOW BOTTLE,W/FITTING

5437635

$4.79

GASKET-OVERFLOW CAP

5810279

$2.41

FITTING-1/8-27, BARBED, 90 DEG

7052065

$7.19

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

SCR-10-24X1/2,PHTXTRIRD,SEMS-Y

7512084

$1.49

BOLT-M6X1.0X15,HXFLG,TAP/R-OD

7518513

$4.79

BOLT-M8X1.25X20,HXFLG

7518555

$2.39

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

HOSE-POLY,CLEAR,3/16 OD,1/8 ID

8360009-600

Unavailable

FUEL LINE-32 CENTIMETERS

8450003-1525

Unavailable

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65
