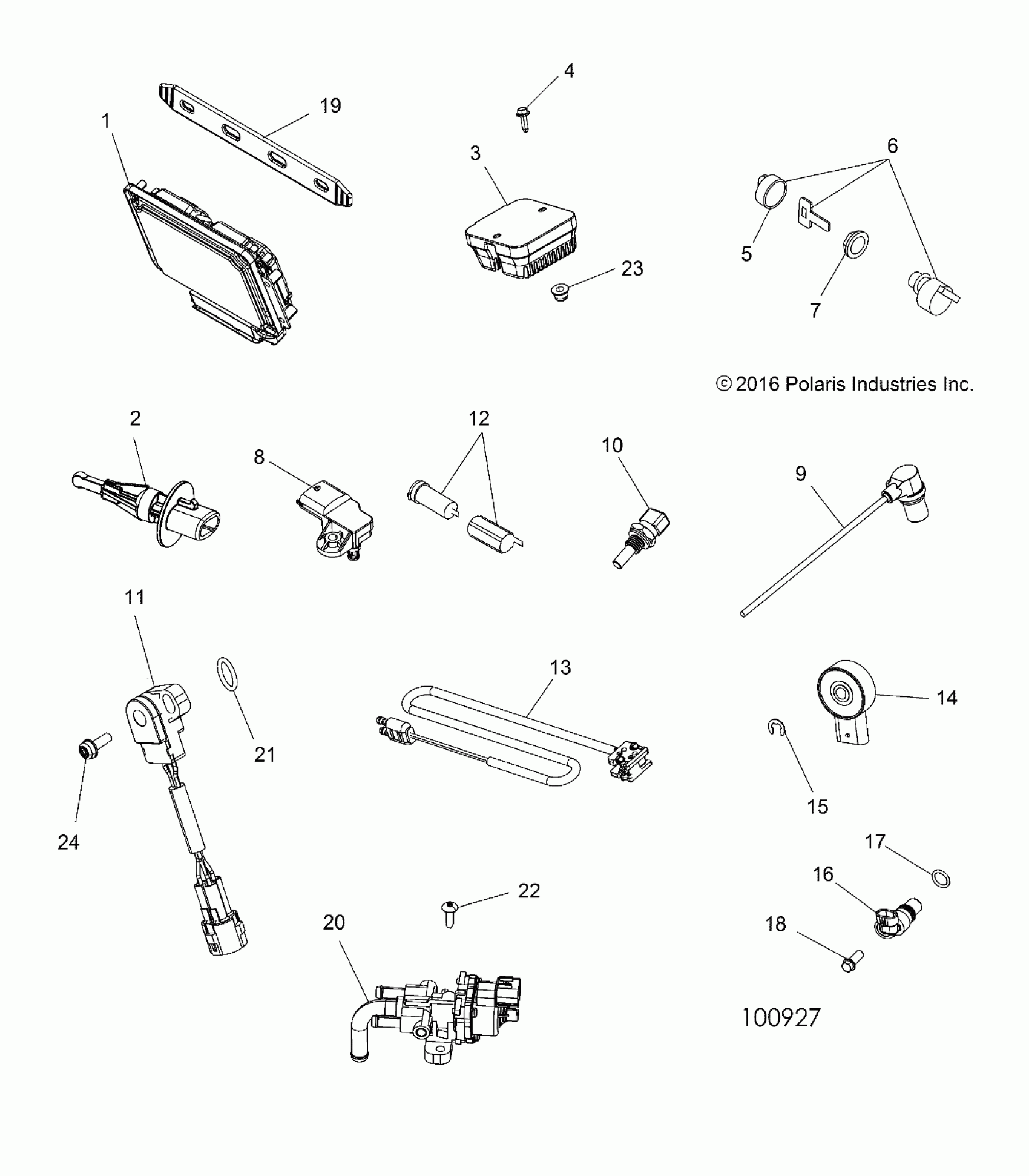

Polaris SPORTSMAN XP 1000 HIGH LIFTER (R06) - A19SXM95AL ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A19SXM95AL Diagram

Description

Price

ECM, BASE, M17

4012838

$569.99

Sensor, Air Temp

2410687

$153.79

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$156.74

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

KEY SWITCH KEY COVER

5433534

$13.75

SWITCH, KEY, 3 POSITION [INCL. 5]

4015033

$62.92

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

SENSOR-TMAP DSS3-TF

2411528

$97.13

SCREW

7518576

$3.17

SCREW

7518548

$1.59

Sensor, Crank Position

2411589

$79.37

SENSOR-THERMISTER

4010644

$91.97

SENSOR, THROTTLE POSITION

2412634

$259.03

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

KIT, BRAKE LIGHT SWITCH

2202794

$72.84

SWITCH [GEAR POSITION]

3233835

$142.49

RING, RETAINING

3233834

$10.32

SENSOR-SPEED,TRANS

4013908

$109.27

O-RING

3234302

$7.27

SCREW

3234329

$9.52

STRAP, ECU

5414193

$27.78

KIT, HARNESS, IAC

2878507

$179.99

VALVE, IAC

4013313

$222.68

O-RING

3131729

$14.99

SCREW

7519045

$3.17

NUT-M6 FLANGE,NYLOC

7547274

$1.19

SCREW

3131010

$4.76
