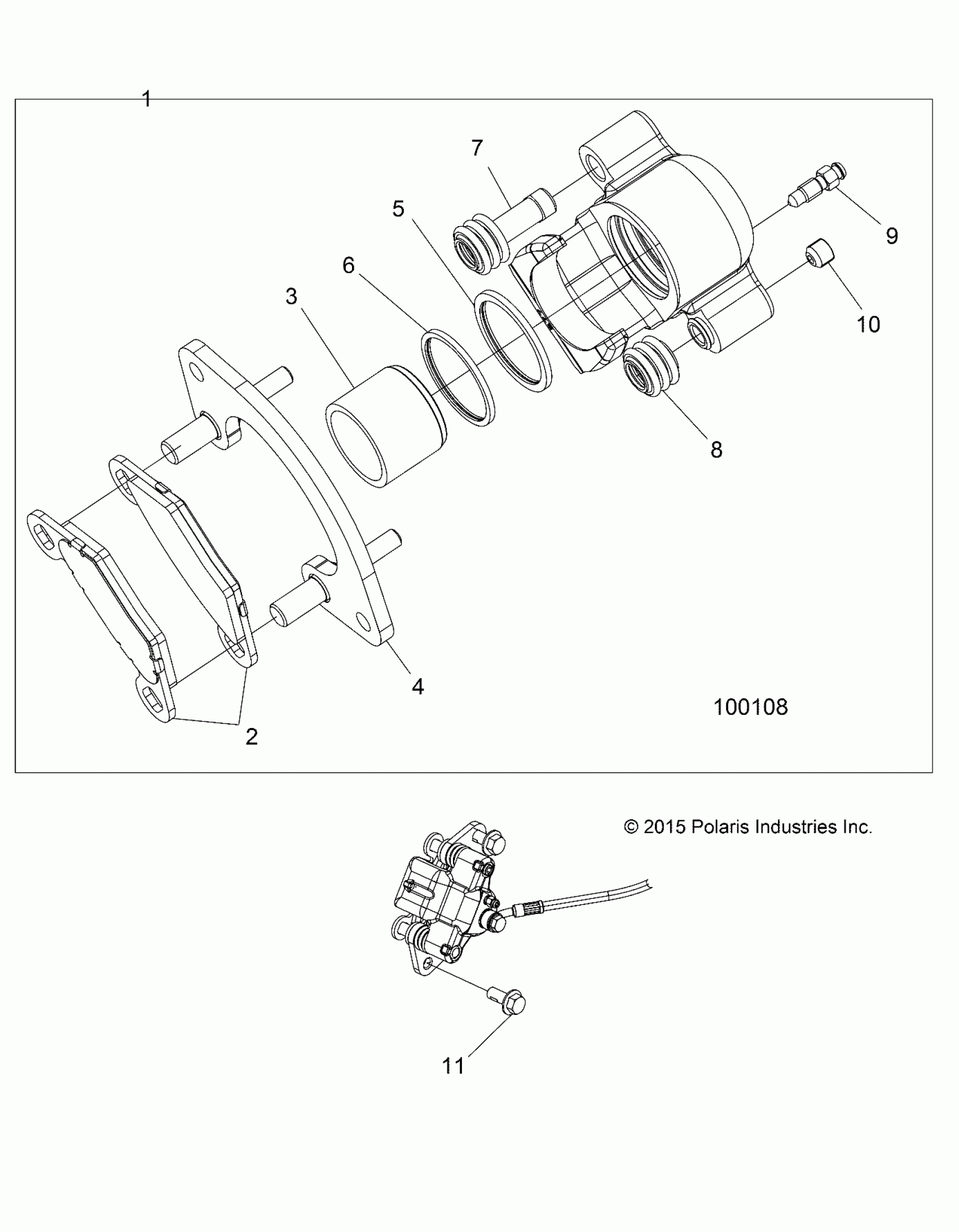

Polaris SPORTSMAN XP 1000 HIGH LIFTER (R06) - A19SXM95AL BRAKES, FRONT CALIPER - A19SXM95AL Diagram

#

Description

Price

1

ASM-CLPR,BRK,1.5,FL,257BK [INCL. 1-10]

1913402

$243.99

1

ASM-CLPR,BRK,1.5,FR,257BK [INCL. 1-10]

1913403

$243.99

2

KIT, BRAKE PAD, HIGH PERF. [INCL. 2 PADS]

2207835

$31.99

3

PISTON-CALIPER,1.50 (MACH)

5132829

$39.99

4

ASM., CALIPER MOUNT

1911225

$39.99

5

SEAL-CALIPER INNER,1.50"

5412010

$8.40

6

SEAL-CALIPER,OUTER,1.50"

5412011

$7.19

7

BOOT-PIN BUSHING

5412505

$3.19

8

BOOT-PIN SEAL

5412506

$3.19

9

SCREW, BLEEDER

7081343

$5.59

10

SCREW, SOCKET SET

7518863

$9.59

11

BOLT, FLANGE [CALIPER MOUNTING]

7518760

$9.59
