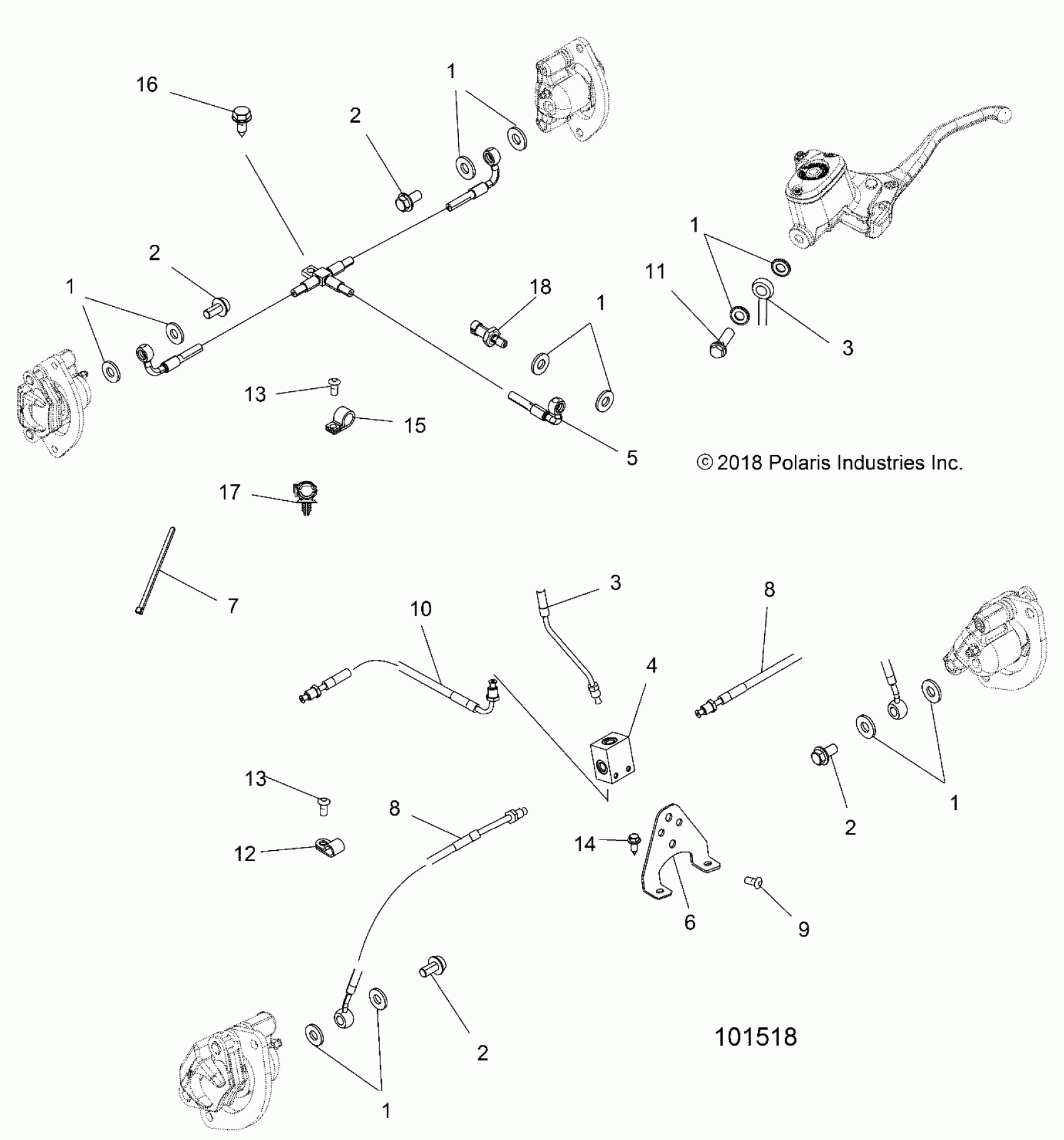

Polaris SPORTSMAN XP 1000 HIGH LIFTER (R06) - A19SXM95AL BRAKES, BRAKE LINES - A19SXM95AL Diagram

#

Description
Price

1

SEAL

5413212

$4.79

1

SEAL

5413212

$4.79

1

SEAL

5413212

$4.79

1

SEAL

5413212

$4.79

1

SEAL

5413212

$4.79

1

SEAL

5413212

$4.79

2

BOLT, BANJO

1910499

$5.59

2

BOLT, BANJO

1910499

$5.59

2

BOLT, BANJO

1910499

$5.59

2

BOLT, BANJO

1910499

$5.59

3

LINE-BRK,MCT,34,30B,50F,240,G2

1913023

Unavailable

3

LINE-BRK,MCT,34,30B,50F,240,G2

1913023

Unavailable

4

FITTING, CROSS

7052372

$59.99

5

LINE-BRAKE,REAR,G2

1913022

$135.99

6

BRACKET, JUNCTION BLOCK

5257768

$10.39

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

LINE, BRAKE, FRONT

1911668

Unavailable

8

LINE, BRAKE, FRONT

1911668

Unavailable

9

SCREW

7512024

$4.79

10

LINE, BRAKE, JB TO FT MC

1911669

Unavailable

11

BOLT, BANJO

1910499

$5.59

12

CLAMP, WIRE/TUBE

7081246

$1.49

13

SCREW

7518176

$4.79

13

SCREW

7518176

$4.79

14

BOLT

7518513

$4.79

15

CLAMP-HOSE,.625 DIA VNL COATED

7080880

$5.59

16

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

17

CLIP, ROUTING

7670116

$5.59

18

SWITCH-BRK,M10X1.25,SGL,NO RES

4017278

Unavailable
