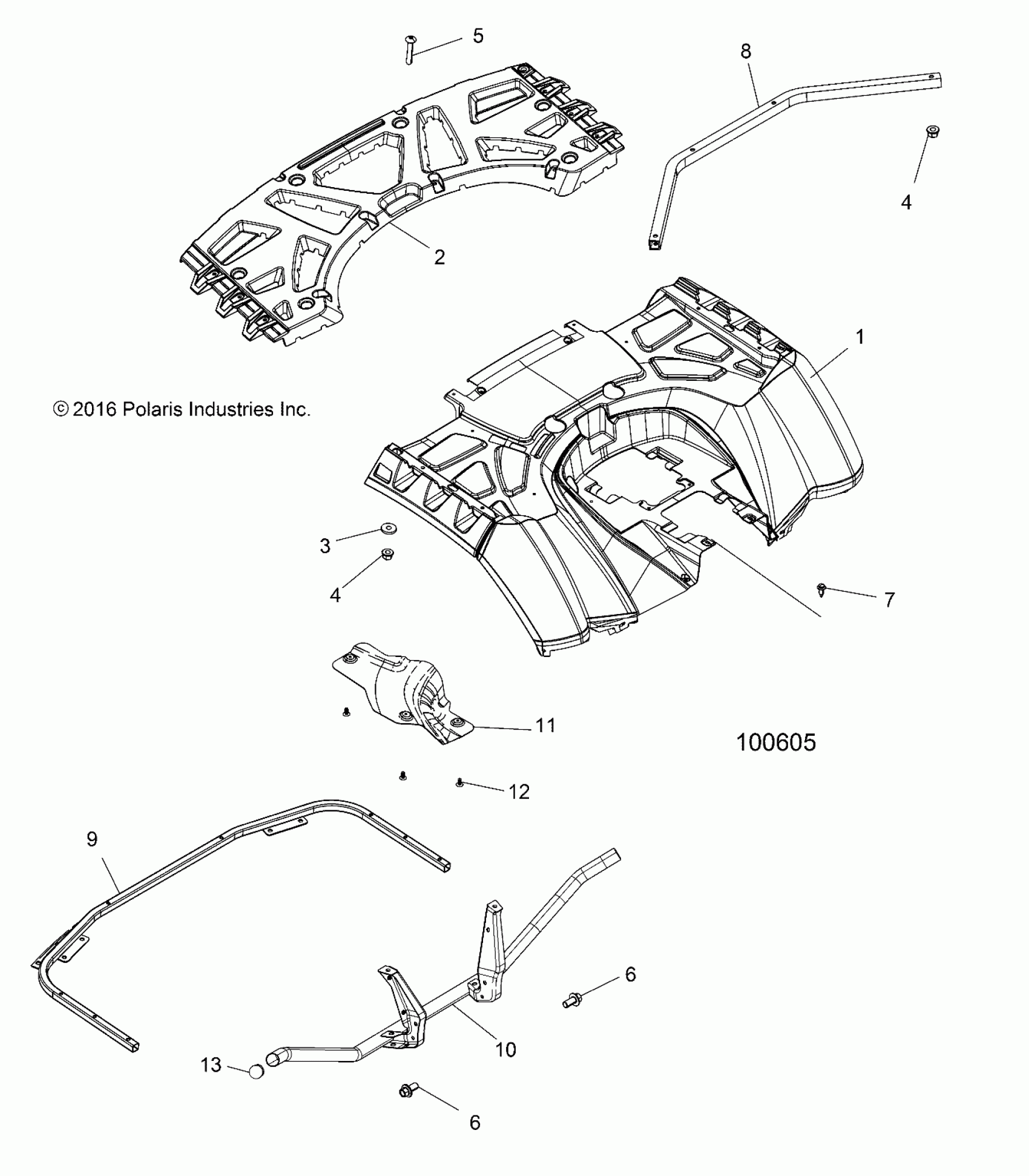

Polaris SPORTSMAN XP 1000 HIGH LIFTER (R06) - A19SXM95AL BODY, REAR CAB and REAR RACK - A19SXM95AL Diagram

#

Description

Price

1

ASM-CAB,REAR,SPMN,HL,STLTH BLK [INCL. 11,12]

2636396-464

$701.99

2

ASM., RACK, REAR, BLACK [INCL. WARNING DECAL]

2636072-070

$203.99

3

WASHER

7558302

$1.59

4

NUT-M6 FLANGE,NYLOC

7547274

$1.49

4

NUT-M6 FLANGE,NYLOC

7547274

$1.49

5

SCREW

7519001

$3.99

6

BOLT

7518555

$2.39

6

BOLT

7518555

$2.39

7

Rivet

7661855

$1.49

8

TUBE, SUPPORT, RACK, REAR, FRONT, BLACK

5335770-329

$83.99

9

BRACKET, RACK, REAR, BLACK

1016782-329

$115.99

10

WELD-SUPPORT,RACK,REAR,ORG,MAD

1021569-589

$105.59

11

SHIELD-HEAT,REAR CAB

5263209

$43.99

12

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

13

PLUG-END CAP,1.25" DIA,RIBBED

5450305

$4.79
