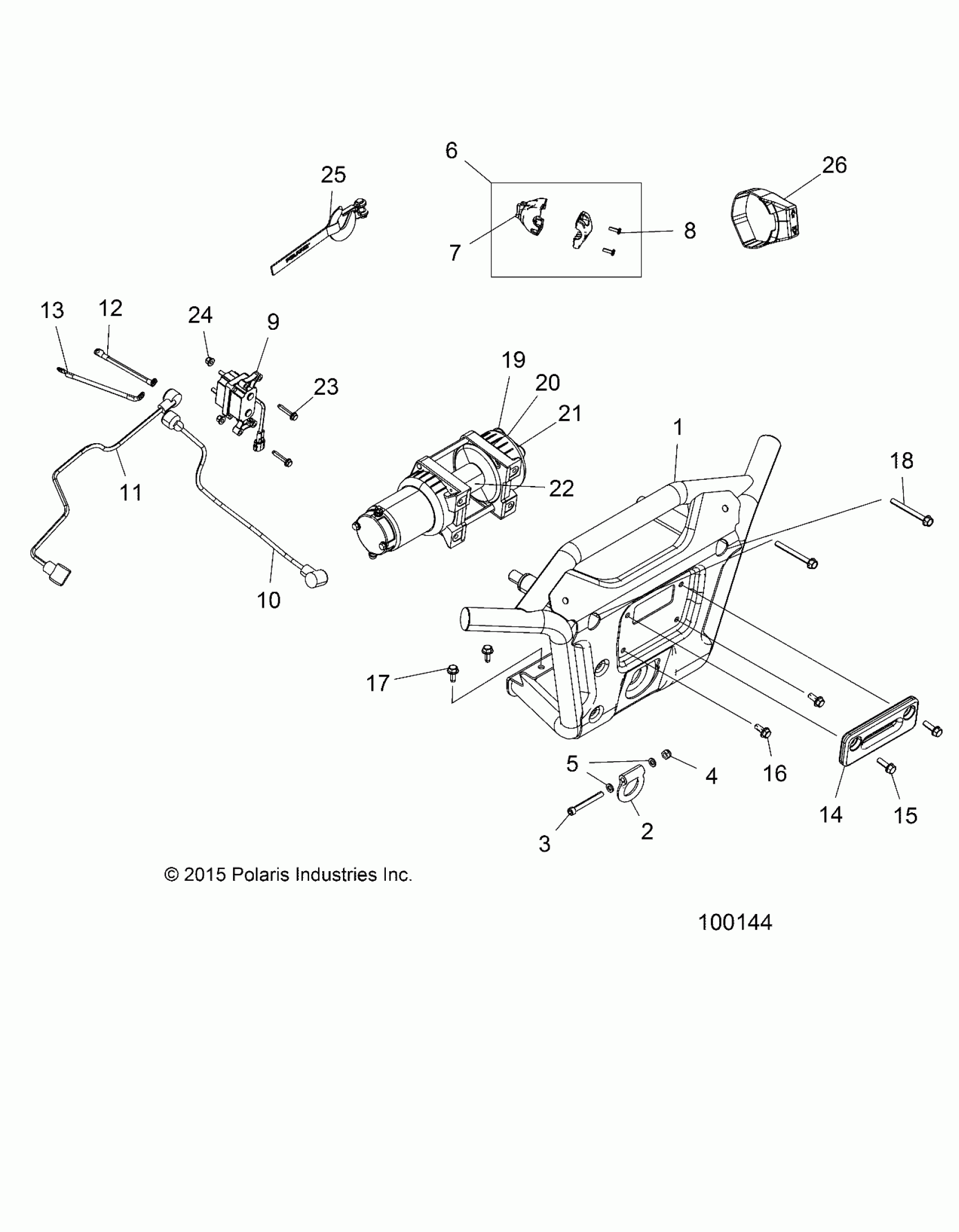

Polaris SPORTSMAN XP 1000 HIGH LIFTER (R06) - A19SXM95AL BODY, FRONT BUMPER WINCH and MOUNTING - A19SXM95AL Diagram

#

Description
Price

1

WELD-BUMPER,FRONT,ORG MADNESS

1021183-589

Unavailable

2

FORGING-D-RING,ORG

5632152-589

Unavailable

3

SCR-5/16-18X2 5/8 HXSOC HDCAP

7518911

$2.63

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

5

WASHER-5/16-SPRING LK-MED-Y

7552901

$1.49

6

K-WINCH SWITCH,HBR,EU,ATV

2207175

$63.99

7

SWITCH-HBR,EU,ATV

4017111

Unavailable

8

SCR-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

9

CONTACTOR-WINCH

4013465

Unavailable

10

CABLE-WINCH,YELLOW 6 GA,280MM

4013468-280

$27.99

11

CABLE-WINCH,BLUE 6 GA,280MM

4013469-280

$27.99

12

CABLE-BATT,6GA,BK,FLAT,85,M6

4014511-470

$31.99

13

CABLE-BAT,6GA,RD,FLT,85,1C,510

4015517-510

$31.99

14

FAIRLEAD-CAST

5633396

$19.99

15

SCR-M8X1.25X25-HX/FL-Y/D

7516734

$3.19

16

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

17

BOLT-M8X1.25X20,HXFLG

7518555

$2.39

18

SCR-HXFL M8X1.25X80 8.8 ZOD

7519217

$1.59

19

WINCH-POLARIS,3.5,HL

2205933

$607.19

20

K-SVC,HANDLE,HD WINCH

2205265

Unavailable

21

K-SVC,HANDLE,WINCH,INT CAM

2205497

Unavailable

22

ROPE-WINCH,SYNTHETIC,50'

2878888

$75.99

23

SCREW

7519202

$3.99

24

NUT-M6 FLANGE,NYLOC

7547274

$1.49

25

HOOK-LATCH,WINCH

2411836

$10.99

26

COVER-MOLD,SWITCH,WINCH

5415687

$6.39
