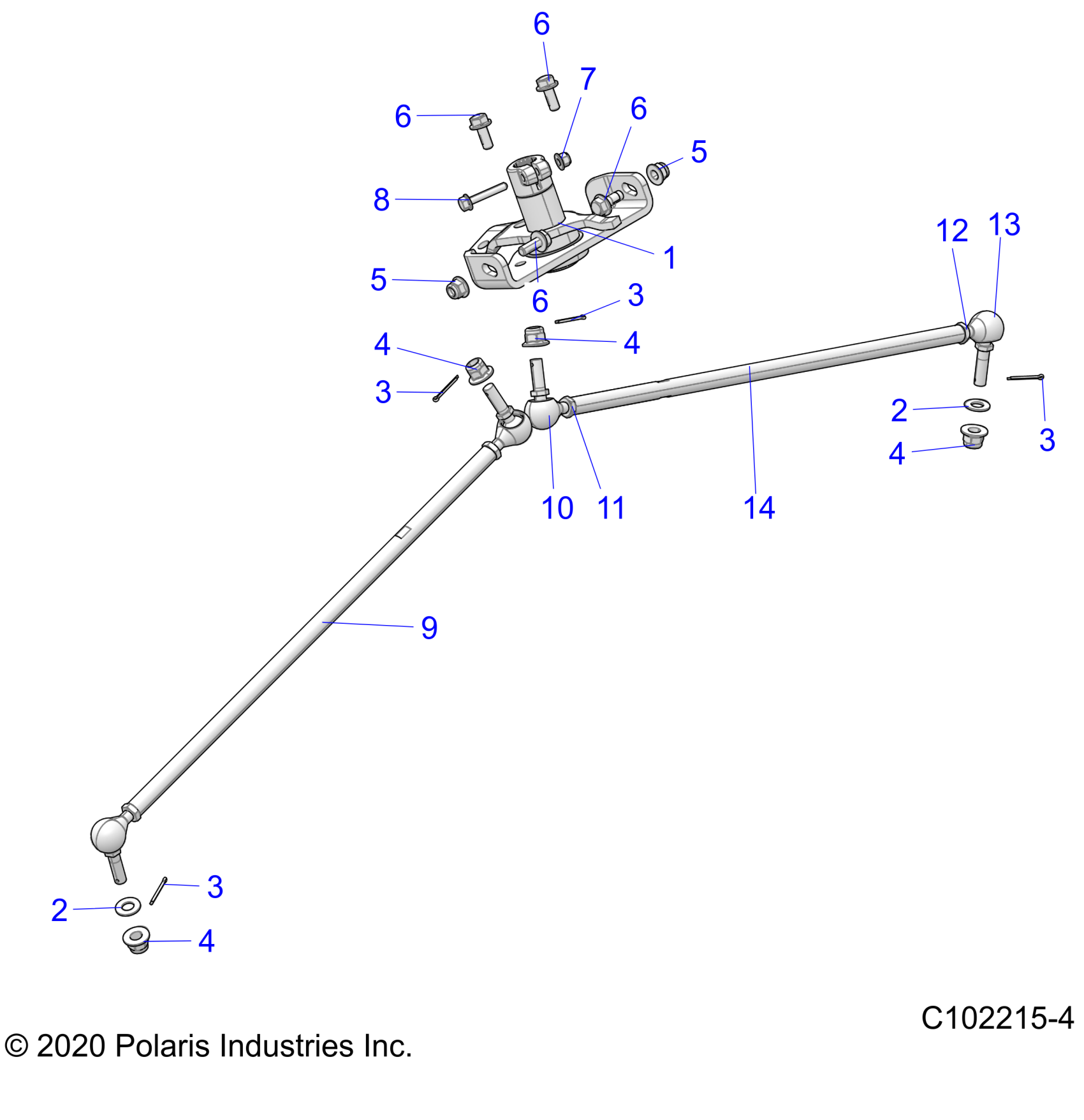

Polaris SPORTSMAN XP 1000 HIGH LIFTER (R04) - A20SXM95AL/CAL STEERING, STEERING POST, LOWER and TIE ROD ASM. - A20SXM95AL/CAL (C102215-4) Diagram

Description

Price

KIT-STEERING POST,LOWER,BOLTED [INCL. POST AND HARDWARE]

2206428

$159.99

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

PIN-3/32X1-COTTER-Y

7661203

$1.49

PIN-3/32X1-COTTER-Y

7661203

$1.49

PIN-3/32X1-COTTER-Y

7661203

$1.49

PIN-3/32X1-COTTER-Y

7661203

$1.49

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-M8X1.25,HXFLG,NYLON INS

7547317

Unavailable

NUT-M8X1.25,HXFLG,NYLON INS

7547317

Unavailable

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

NUT-M6 FLANGE,NYLOC

7547274

$1.49

SCR-M6X1.0X35,HX/FL-Y/D

7516827

$6.39

ASM., TIE ROD [INCL. 10-14][10-14 AVAILABLE ONLY IN THIS ASSEMBLY]

1824007

$99.99

Rod End, RH

-------

Unavailable

NUT, JAM, RH

-------

Unavailable

NUT, JAM, LH

-------

Unavailable

Rod End, LH

-------

Unavailable

Tie Rod

-------

Unavailable
