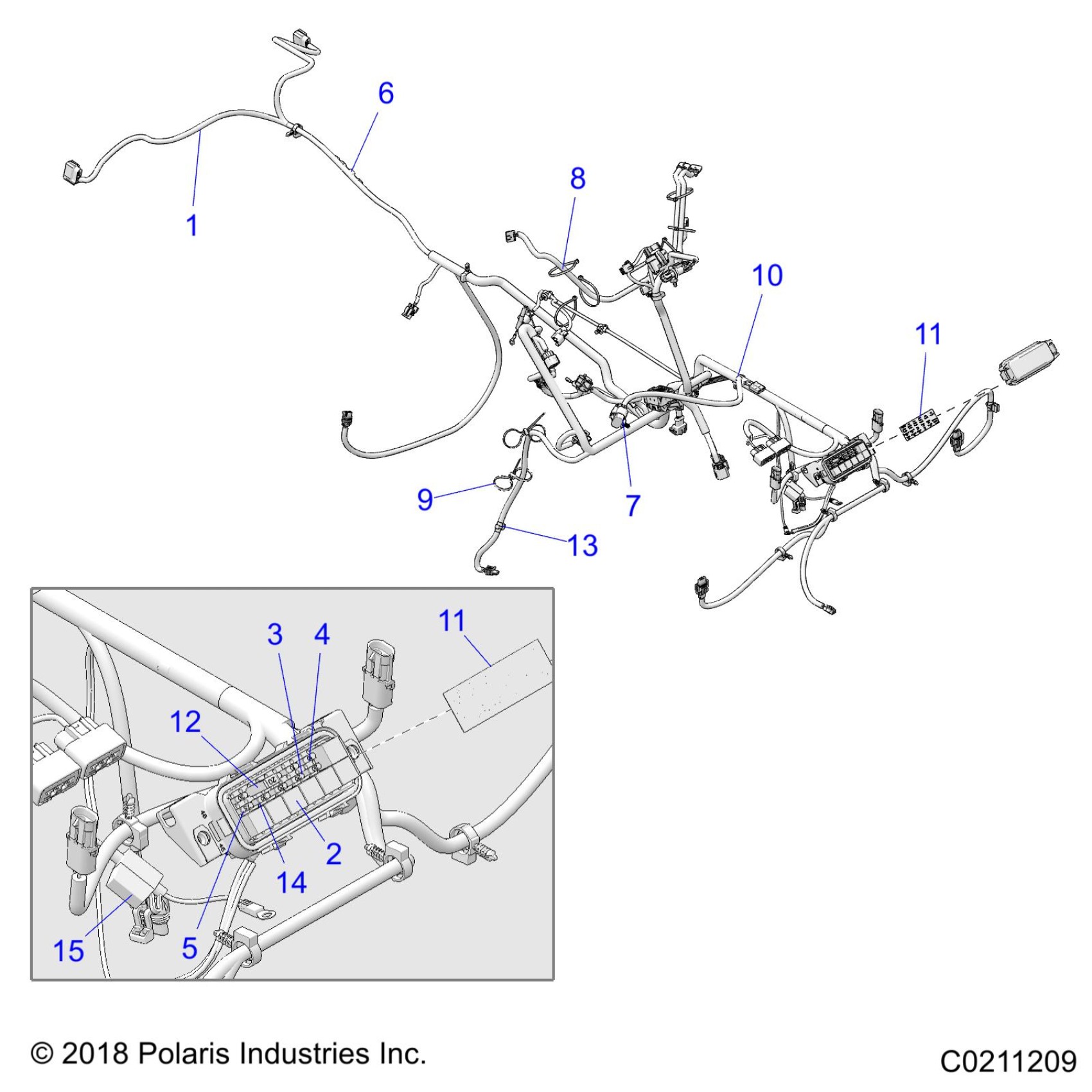

Polaris SPORTSMAN XP 1000 HIGH LIFTER (R04) - A20SXM95AL/CAL ELECTRICAL, HARNESS - A20SXM95AL/CAL (C0211209) Diagram

#

Description
Price

1

HARNESS-MAIN,850/1000 HL EPS

2415159

$981.19

2

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

3

FUSE-PARK,20 AMP

2434017

Unavailable

4

FUSE-IGNITION,10 AMP

2434016

$4.79

5

FUSE - 7.5A

4011068

Unavailable

6

DIODE, 6AMP

2411035

$51.99

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

8

CABLE-TIE,DIA12-50MM,WTHR-RES. 8"

7080138

$2.41

9

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

10

NUT-M6 FLANGE,NYLOC

7547274

$1.49

11

LABEL, FUSE BOX

7192266

Unavailable

11

LABEL, FUSE BOX

7192266

Unavailable

12

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

13

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

14

FUSE-MAIN,30 AMP

2434015

$7.19

15

PLUG-HARNESS BATTERY CHARGE

2415060

$27.99
