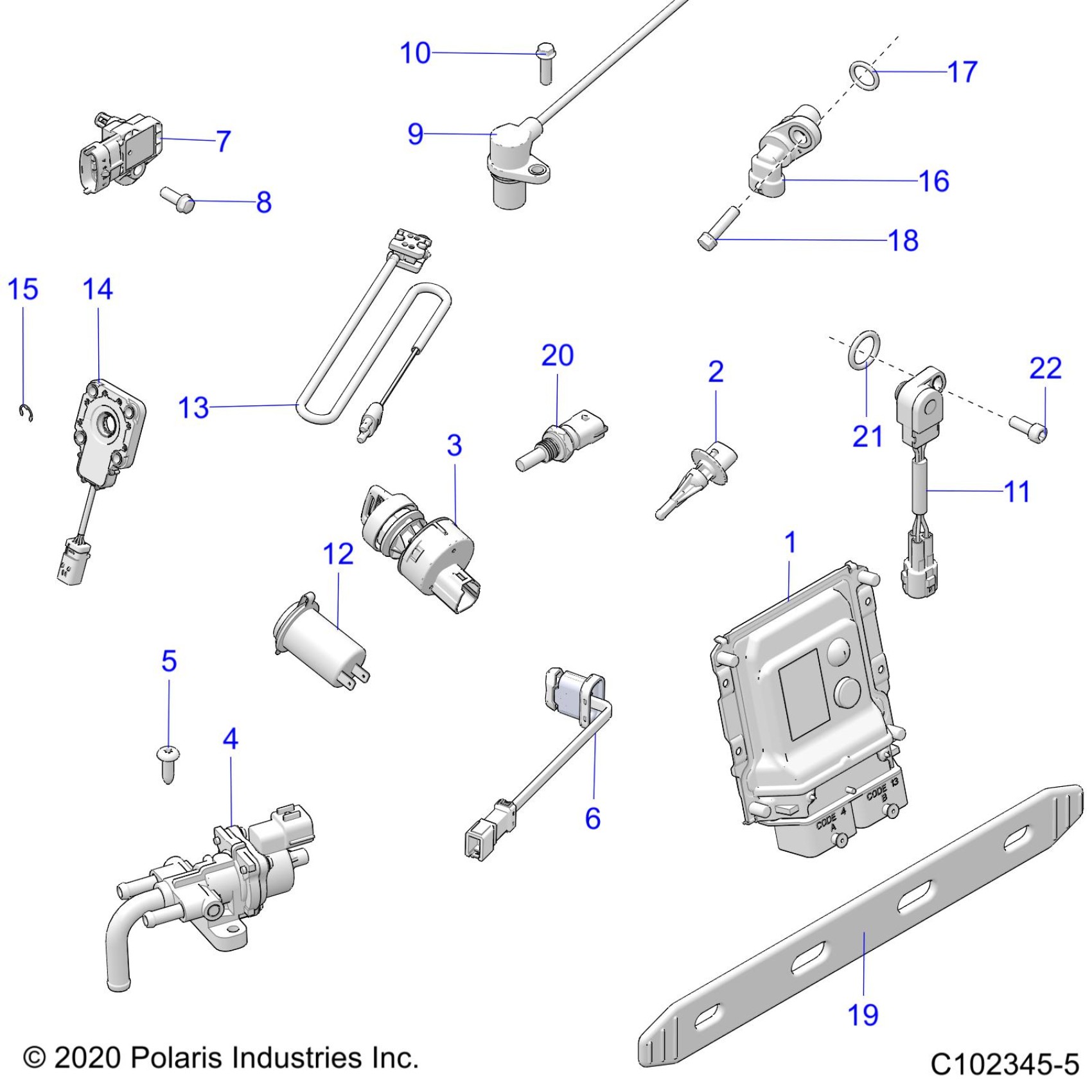

Polaris SPORTSMAN XP 1000 HIGH LIFTER (R02) - A21SXM95AG/CAG ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A21SXM95AG/CAG (C102345-5) Diagram

ECU, BASE, M17 �

4012838

$565.24

Sensor, Air Temperature �

2410687

$153.79

SWITCH, KEY, 3 POSITION, SEALED [INCL. SWITCH, COVER, and NUT]

4015033

$62.92

KEY SWITCH KEY COVER �

5433534

$13.75

NUT-IGNITION SWITCH,HOBBS �

5433733

$23.81

VALVE, IAC �

4013313

$222.68

SCR-TX TRUSS-#14X3/4, HI/LO ZBK �

7519045

$3.17

SWITCH-HBR,EU,ATV �

4017111

$64.75

SENSOR-TMAP DSS3-TF �

2411528

$97.13

SCR-SENSOR TMAP [USED WITH T-MAP SENSOR]

3131726

$3.17

SENSOR, CRANK POSITION �

2411589

$79.37

SCREW-HXFL-M6X1.0X16 8.8 ZY3 [USED WITH CRANK POSITION SENSOR]

7518548

$1.59

SENSOR, THROTTLE POSITION �

2412634

$259.03

RECEPTACLE-POD MNT,12 VOLT �

4012393

$36.41

KIT, BRAKE LIGHT SWITCH �

2202794

$72.84

SWITCH, ROTARY, 2 PIN RESISTIVE [GEAR POSITION]

7662383

$113.32

RING, RETAINING BASIC EXTERNAL �

3233834

$10.32

SENSOR-SPEED,TRANS �

4013908

$109.27

O-RING �

3234302

$7.27

SCREW. TORX, PAN HEAD �

3234329

$9.52

STRAP, ECU �

5414193

$27.78

SENSOR-THERMISTER �

4010644

$91.97

O-RING �

3131729

$14.99

Screw [MAG Side] �

3131010

$4.76
