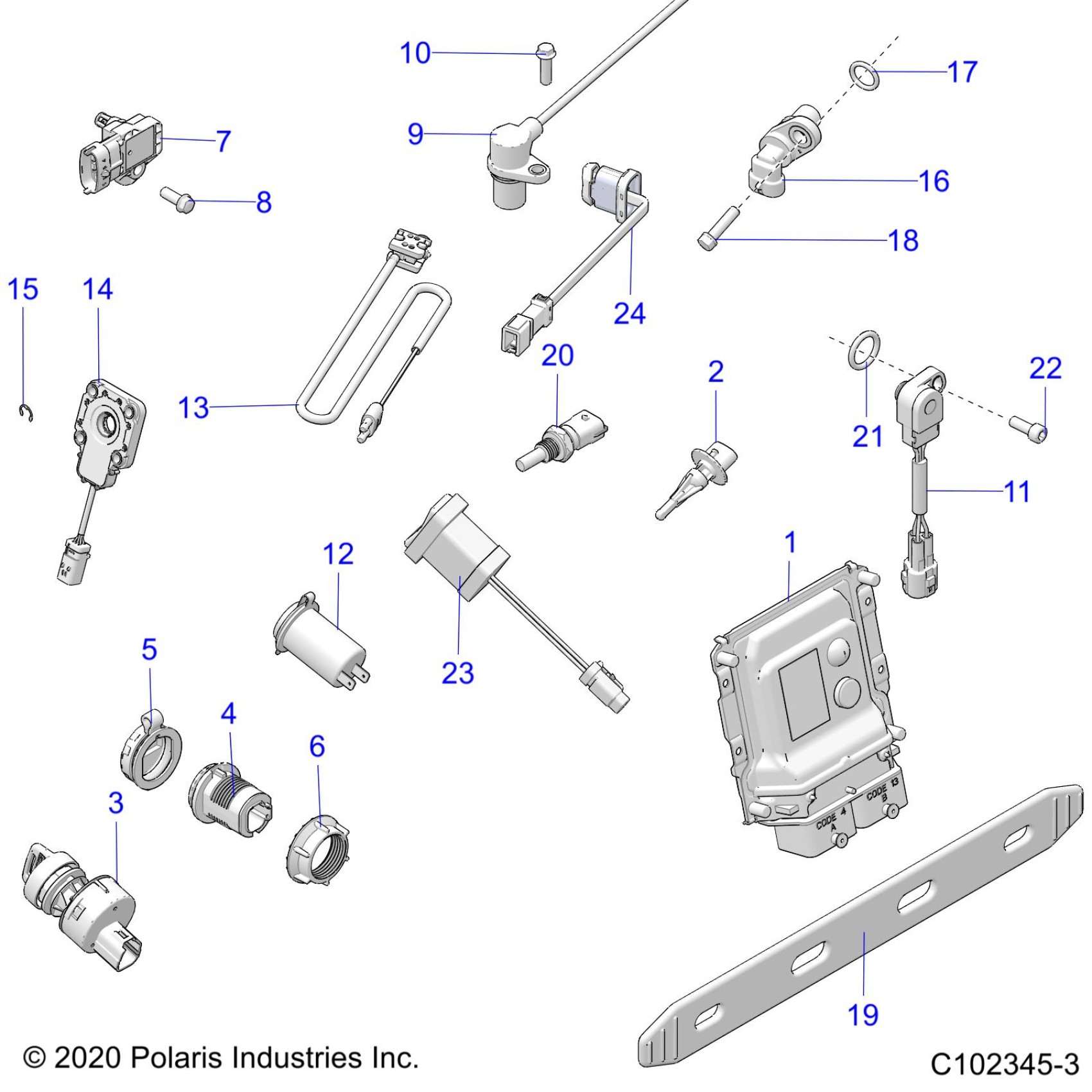

Polaris SPORTSMAN XP 1000 EPS LE 48" (R02) - A21SXV95AG/CAG ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A21SXV95AG/CAG (C102345-3) Diagram

ECM-HARD,ME17,2CYL,250K

4014125

$694.99

Sensor, Air Temperature

2410687

$143.99

SWITCH-KEY,3 POS,SEALED [INCL. SWITCH, COVER, and NUT]

4017237

$51.99

KEY SWITCH KEY COVER

5433534

$12.35

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

PLUG-HARNESS CHARGE PORT [INCL. PLUG, CAP, and NUT]

2415198

Unavailable

ASM-CHARGE PORT,BASE

2415295

$40.46

CAP-CHARGE PORT

5417215

$12.79

NUT-CHARGE PORT

5456622

Unavailable

SENSOR-TMAP DSS3-TF

2411528

$93.08

SCR-SENSOR TMAP [USED WITH T-MAP SENSOR]

3131726

Unavailable

Sensor, Crank Position

2411589

$79.99

SCREW-HXFL-M6X1.0X16 8.8 ZY3 [USED WITH CRANK POSITION SENSOR]

7518548

$1.59

SENSOR, THROTTLE POSITION

2412634

$243.99

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

KIT, BRAKE LIGHT SWITCH

2202794

$72.84

SWITCH, ROTARY, 2 PIN RESISTIVE [GEAR POSITION]

7662383

$111.99

RING, RETAINING BASIC EXTERNAL

3233834

$10.39

SENSOR-SPEED,TRANS

4013908

Unavailable

O-RING

3234302

$7.19

SCREW. TORX, PAN HEAD

3234329

Unavailable

STRAP, ECU

5414193

$27.99

SENSOR-THERMISTER

4010644

$87.13

O-RING

3131729

$11.99

Screw [MAG Side]

3131010

$4.79

SWITCH-DRIVEMODE,3MODE,ATV

4016507

$107.99

SWITCH-HBR,EU,ATV

4017111

Unavailable
