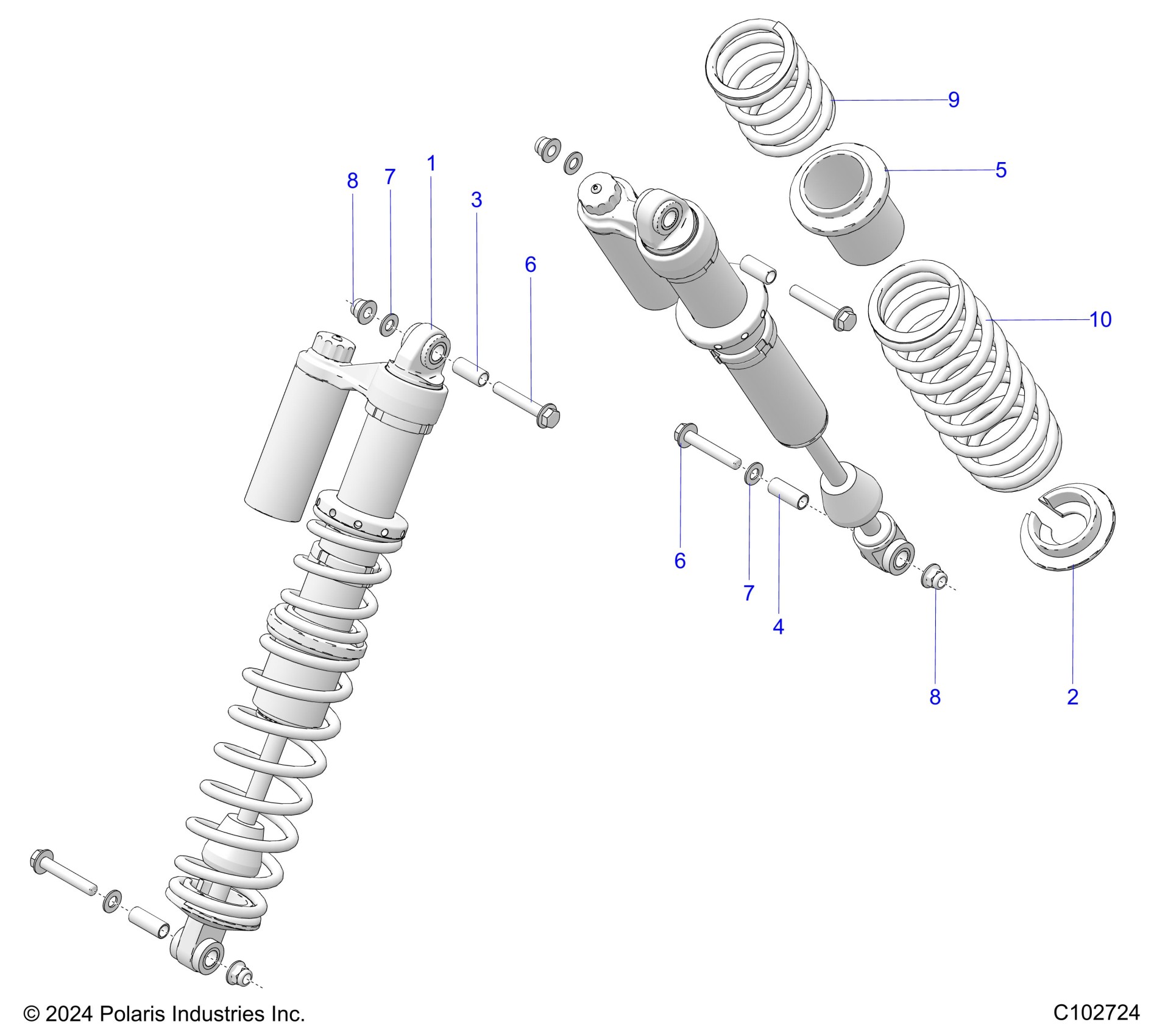

Polaris SPORTSMAN XP 1000 55" (R02) - A25SLZ95AF SUSPENSION, REAR SHOCK MOUNTING - A25SLZ95AF (C102724) Diagram

#

Description

Price

1

SHOCK-RR,WE2.0,WL55,PGY-BACK

7045018

$839.99

2

RETAINER-SPRING,2.5�

5267152

$84.99

3

Sleeve, Shock

5334876

$15.37

4

SLEEVE-SHOCK,1.40"

5337092

$15.37

5

SPACER-SPRING,2.5

5455821

$64.99

6

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.56

6

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.56

7

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

7

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

8

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

8

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

9

SPRING-FRT,55,PREM,SHORT,O.BST

7045172-647

$53.32

10

SPRING-RR,55,PRM TRPL,TALL,ORG

7045173-647

$93.32
