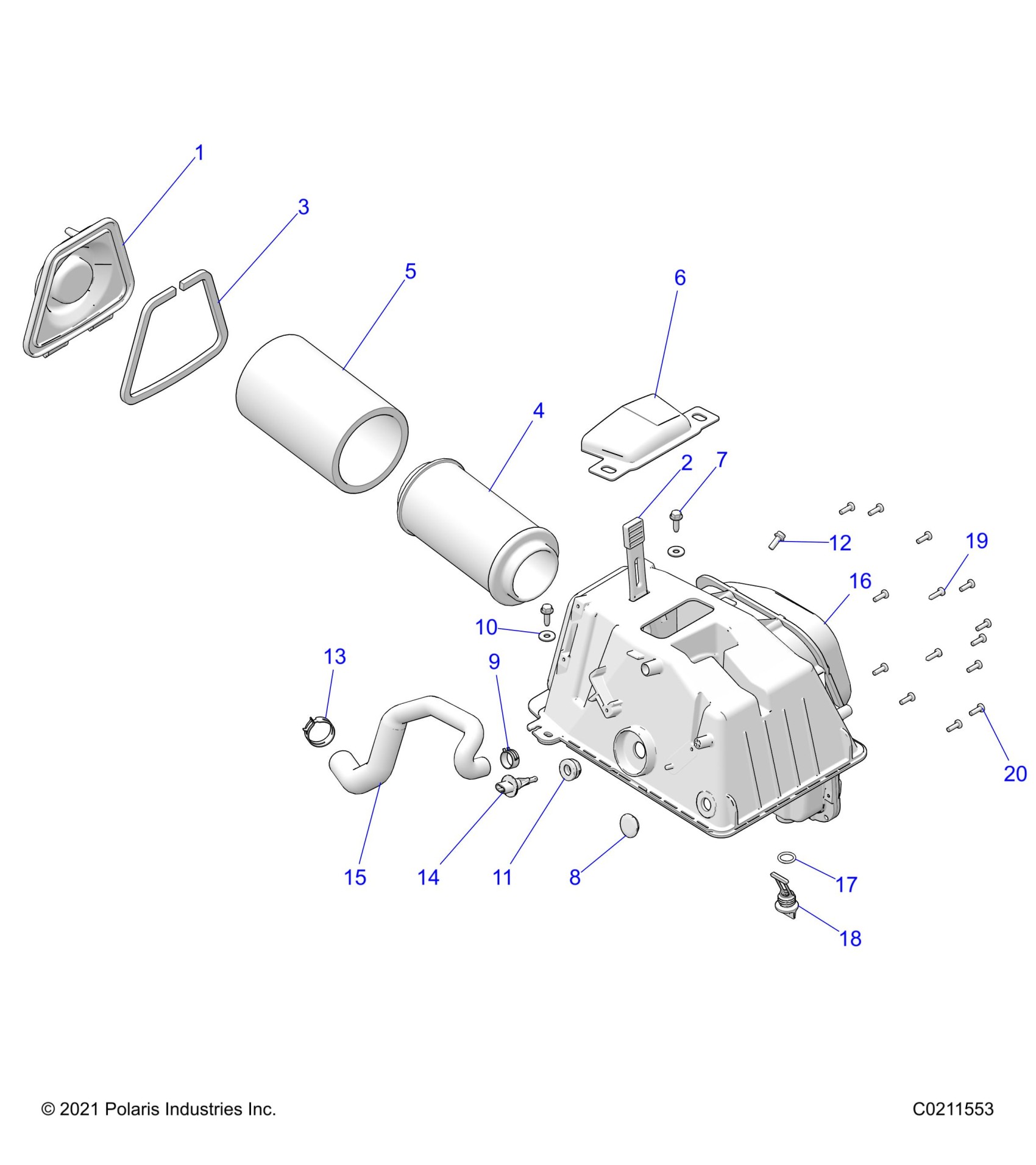

Polaris SPORTSMAN XP 1000 55" R01 - A26SLZ95AF ENGINE, AIR INTAKE - A26SLZ95AF (C0211553) Diagram

Description

Price

COVER, AIRBOX

5438983

$44.51

STRAP-AIRBOX TOP

5433150

$24.27

SEAL, AIRBOX COVER

5813359

$6.87

CLAMP-OETIKER, 16704965-36.1

7082107

$4.76

FILTER-AIR INTAKE,HD

7083107

$27.78

FILTER-HD AIR INTAKE, 208MM [HD OPTION]

7083114

$47.62

Filter, Pre-Cleaner, Sleeve

5811633

$11.90

HOOD, AIR INTAKE

5416841

$32.37

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

PLUG-AIR BOX, MUDDER

5415705

$3.22

CLAMP-HOSE,SPRING .81

7081026

$7.94

WASHER-FL .281X.750X.062-Y

7555859

$1.19

GROMMET, AIR TEMPERATURE SENSOR

5436346

$4.76

SCR-SHFL-M6X1.0X25 10.9 ZNC PC

7528343

$2.38

SPRINGBAND-CLAMP 29/12,BLK

7080842

$7.14

Sensor, Air Temperature

2410687

$153.79

HOSE, BREATHER, TWIN

5414322

$44.51

ASM-AIR INTAKE,BOX W/RUNNER

1244936

$213.00

O-RING

5414246

$1.60

PLUG, AIR BOX

5451429

$15.37

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.19

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.97
