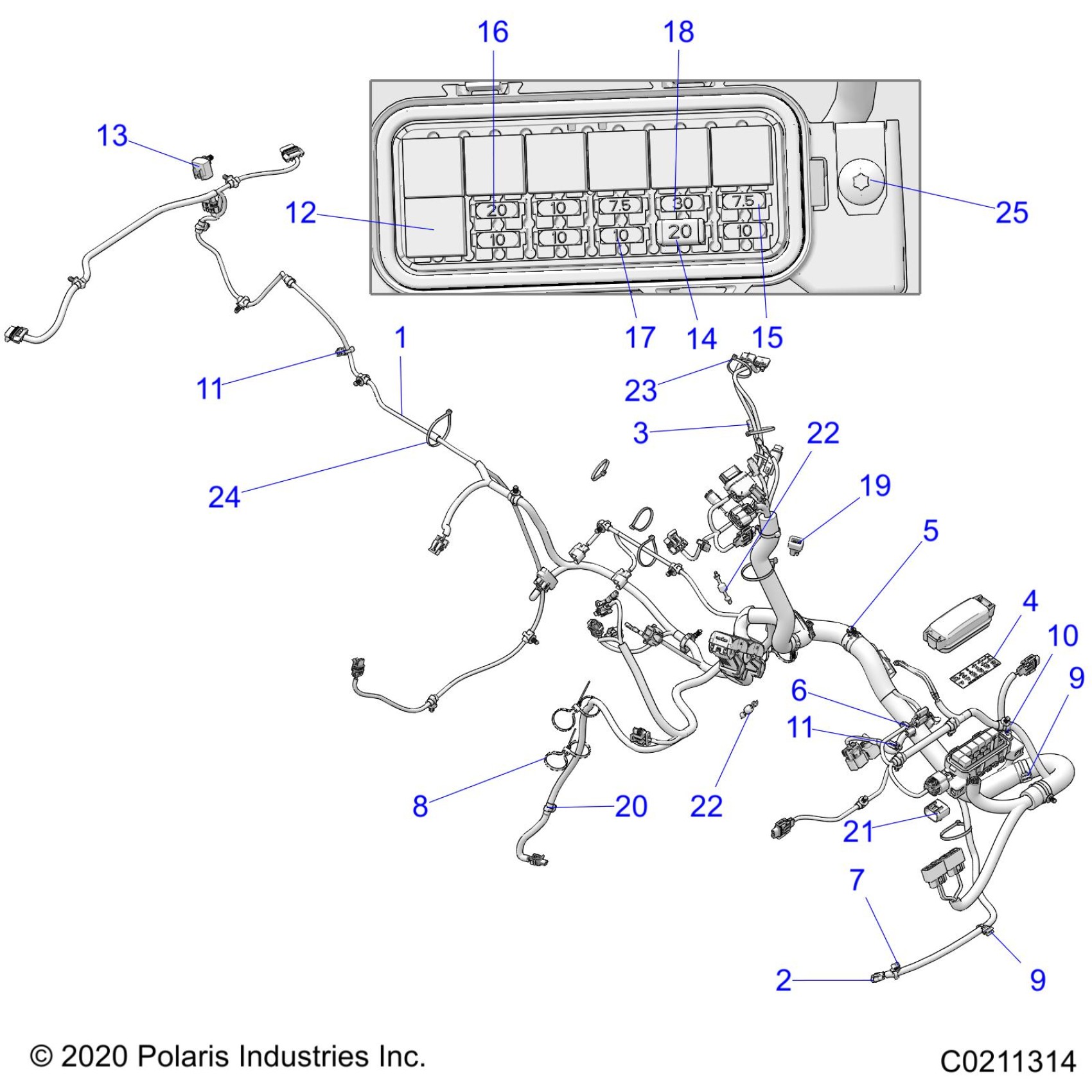

Polaris SPORTSMAN XP 1000 55" R01 - A26SLZ95AF ELECTRICAL, HARNESS - A26SLZ95AF (C0211314) Diagram

#

Description
Price

-

COVER- FUSE BOX, 48 WAY

4015011

$55.99

1

HARNESS-MAIN,SPM XP ETC,55 [INCL. 1-22]

2416129

$1,060.39

2

CONNECTOR-CAP, WINCH CONTACTOR

4014891

$7.99

3

CONNECTOR-CAP, WINCH SWITCH

4014890

$8.79

4

LABEL, FUSE BOX

7300362

Unavailable

5

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

6

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.79

7

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

8

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

9

CLIP, EDGE, HARNESS

7081890

$10.39

9

CLIP, EDGE, HARNESS

7081890

$10.39

10

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

11

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

11

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

12

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

13

COVER, TAILLIGHT, LED W/CLIP

4016259

$6.39

14

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

15

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

16

FUSE-PARK,20 AMP

2434017

Unavailable

17

FUSE-IGNITION,10 AMP

2434016

$4.79

18

FUSE-MAIN,30 AMP

2434015

$7.19

19

DIODE - 6 AMP, 1/4, 3/16 TERM

2410000

$35.99

20

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

21

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

22

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$51.99

22

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$51.99

23

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

24

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

25

SCREW-M6X1X14,PN/TX,TRI-LOB

7518914

$3.19
