Description

Price

1

ASM-TRANS,BOSS/LUK,CLSD RATIO [INCL. ALL]

1334374

$2,719.19

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

3

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

3234309

$7.19

3

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

3234309

$7.19

4

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

5

SCREW, HEX FLANGE HEAD, M10 X 1.5 X 30

3234634

$13.59

6

NUT, LOCK, HEX FLANGE NYLON 5/16-24

3233961

$2.79

7

WASHER, THRUST, 0.5 X 0.937 X 0.063

3234636

$7.99

8

WASHER, THRUST, .625 X 1.000 X 0.063

3234637

$11.19

9

WASHER, RIBBED

3235508

$3.99

10

PIN, DOWEL 6 X 20

3234330

$7.19

11

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

12

RING, RETAINING BASIC EXTERNAL

3233834

$10.39

13

RING RETAINING, IRR 7200-118

3233699

$7.19

14

RING, RETAINING, EXTERNAL SHR-66

3234318

$3.19

15

RING, RETAINING BASIC, EXTERNA

3234327

$7.19

16

RING, RETAINING BASIC, INTERNAL, 62MM

3234741

$9.59

17

RING, RETAINING BASIC, EXTERNAL, SHR-50

3234639

$10.39

18

RING, RETAINING, EXTERNAL USC-112

3234641

$12.79

19

SHAFT, INPUT 25T

3236308

$315.99

20

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

21

WASHER, THRUST 1.300 X 0.995 X 0.065

3234248

$9.59

22

SHIM, 1.35 OD X 0.818 ID

3234643

$31.99

22

SHIM, 1.35 OD X 0.818 ID

3234643

$31.99

23

SHIM, 1.17 OD X 0.675 ID

3234644

$12.79

24

WASHER, THRUST, 1.568 OD X .1.110 ID

3234646

$23.99

25

WASHER, THRUST, � 33 X � 29 X 1.5

3234757

$11.19

26

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

26

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

28

BEARING

3233020

$47.99

29

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

30

BEARING BALL,6304STD 20X52X15

3234651

$15.99

31

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.99

32

BEARING, NEEDLE, SPLIT CAGE

3234759

$15.99

33

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.99

34

BEARING, NEEDLE, CAGE ASSY 20 X 24 X 10

3234655

$15.99

35

BEARING, NEEDLE, 28 X 33 X 13

3234656

$15.99

36

SPRING, COMPRESSION, 0.648 O.D. X 1.33

3234687

$7.99

37

SPRING, WAVE, 1.60 ID X 0.375

3234688

$10.39

38

SPRING, PARK PAWL, TORSION

3234787

$23.99

39

SPRING, COMPRESSION, 0.45 OD X 1.58

3234790

$19.99

40

BELLHOUSING, MACH

3235196

$43.99

41

GEARCASE, MAIN, GTO MACH

3235428

$299.99

42

GEARCASE GTO COVER, MACH.

3235790

$633.59

43

PAWL, PARK

3239339

$51.99

44

GEAR, SECTOR, 38T

3234694

$27.99

45

BULLET DETENT

3234695

$31.99

46

Shaft, Reverse, 53T

3234774

$195.99

47

GEAR, HELICAL, 42T

3235133

$75.99

48

SHAFT, OUTPUT REAR

3235789

$391.99

49

SHAFT, INPUT

3236557

$239.99

50

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$9.59

50

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$9.59

51

GEAR, 67T

3234706

$87.99

52

SPROCKET 48T 6-FACE

3236309

$51.99

53

SHAFT, SHIFT, BELLCRANK

3234712

$63.99

53

SHAFT, SHIFT, BELLCRANK

3234712

$63.99

54

Rail, Shift, Shaft

3234714

$27.99

54

Rail, Shift, Shaft

3234714

$27.99

55

PLUG, DETENT

3234715

$35.99

56

RAIL, PARK SHAFT

3234716

$27.99

57

DOG, ENGAGEMENT, GTO, LOW

3234718

$175.99

58

PIPE, KNOCK

3234765

$12.79

59

FORK, SHIFT

3236310

$87.99

60

DOG, ENGAGEMENT, GTO, HIGH

3235190

$67.99

61

DOG, ENGAGEMENT, GTO, REV/LOW

3235341

$171.99

62

FORK, SHIFT

3235342

$83.99

63

SPROCKET, 23T

3236336

$55.99

64

SPROCKET, 44T

3236337

$70.39

65

SUBASM., SWITCH SHAFT

3234767

$115.99

66

SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#46 & #25)

3235191

$307.99

67

KIT, GTO, PRIMARY SHIM PACK

2204268

$39.99

68

SUBASSY BEARING COVER W/SCREWS (#3)

3235198

$23.99

69

KIT, LUK, INPUT SHAFT SHIM PACK

2204343

$31.99

70

SUBASSY OUTPUT, FRONT W/BEARINGS (#26)

3235788

$239.99

71

BELLCRANK, 15T SPLINE

3234724

$23.99

72

Deflector, Oil

3234725

$12.79

73

PLUG, EXPANSION 1-1/4

3233578

$7.03

74

CHAIN, SILENT, TYPE 103 .25P X .48W X 58L

3235633

$251.99

75

CHAIN SILENT, 0.75 X .375P X 64P

3235245

$195.99

76

SWITCH, ROTARY, 2 PIN RESISTIVE

7662383

$111.99

77

SENSOR-SPEED

4082135

$103.99

78

PLUG, M18 X 1.5

3234755

$27.99

79

O-RING - N70, 9.5 MM X 2 MM

3236171

$10.55

80

LABEL, OIL

2877606

Unavailable

81

O-RING, -016 VITON

3236279

$7.19

82

O-RING, -014 VITON

3233828

$6.79

83

O-RING, 0.53 I.D X 0.082 WIDE

3234729

$13.75

84

SEAL, 35 X 62 X 8

3234769

$43.99

85

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$35.99

85

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$35.99

85

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$35.99

85

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$35.99

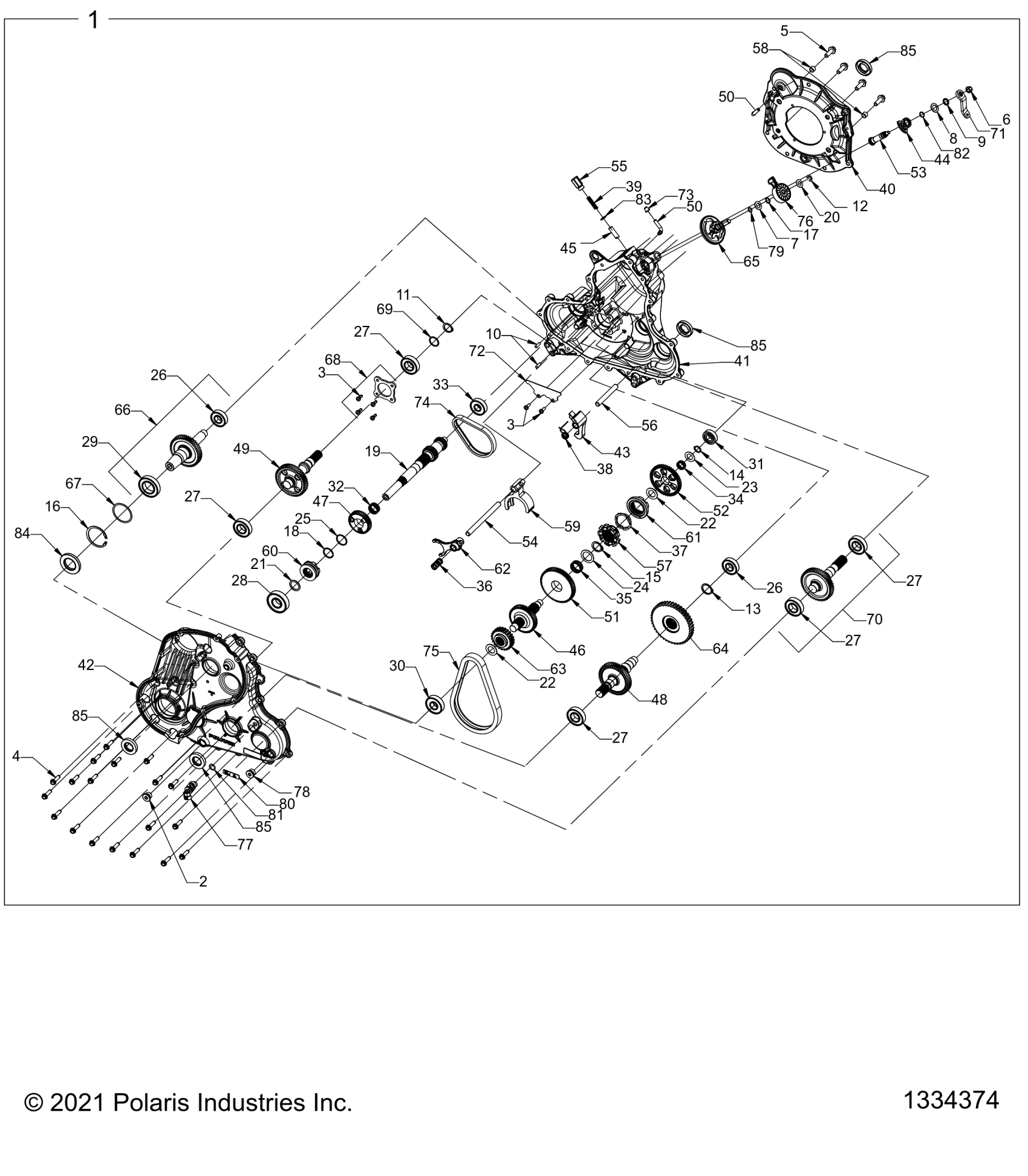

Polaris SPORTSMAN XP 1000 55" R01 - A26SLZ95AF DRIVE TRAIN, MAIN GEARCASE - A26SLZ95AF (1334374) Diagram

ASM-TRANS,BOSS/LUK,CLSD RATIO [INCL. ALL]

PLUG, M18 X 1.5 MAGNETIC

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

SCREW-HEXFLANGEHEAD,M8X1.25X30

SCREW, HEX FLANGE HEAD, M10 X 1.5 X 30

NUT, LOCK, HEX FLANGE NYLON 5/16-24

WASHER, THRUST, 0.5 X 0.937 X 0.063

WASHER, THRUST, .625 X 1.000 X 0.063

WASHER, RIBBED

PIN, DOWEL 6 X 20

RING,RETAINING BASIC,EXTERNAL 0.984

RING, RETAINING BASIC EXTERNAL

RING RETAINING, IRR 7200-118

RING, RETAINING, EXTERNAL SHR-66

RING, RETAINING BASIC, EXTERNA

RING, RETAINING BASIC, INTERNAL, 62MM

RING, RETAINING BASIC, EXTERNAL, SHR-50

RING, RETAINING, EXTERNAL USC-112

SHAFT, INPUT 25T

WASHER,THRUST,0.446 X 0.88 X 0.025

WASHER, THRUST 1.300 X 0.995 X 0.065

SHIM, 1.35 OD X 0.818 ID

SHIM, 1.35 OD X 0.818 ID

SHIM, 1.17 OD X 0.675 ID

WASHER, THRUST, 1.568 OD X .1.110 ID

WASHER, THRUST, � 33 X � 29 X 1.5

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING

BEARING-BALL 6007 C3 35 X 62 X 14

BEARING BALL,6304STD 20X52X15

BEARING, BALL 6203 17 X 40 X 12

BEARING, NEEDLE, SPLIT CAGE

BEARING, BALL 6303, 17 X 47 X 14

BEARING, NEEDLE, CAGE ASSY 20 X 24 X 10

BEARING, NEEDLE, 28 X 33 X 13

SPRING, COMPRESSION, 0.648 O.D. X 1.33

SPRING, WAVE, 1.60 ID X 0.375

SPRING, PARK PAWL, TORSION

SPRING, COMPRESSION, 0.45 OD X 1.58

BELLHOUSING, MACH

GEARCASE, MAIN, GTO MACH

GEARCASE GTO COVER, MACH.

PAWL, PARK

GEAR, SECTOR, 38T

BULLET DETENT

Shaft, Reverse, 53T

GEAR, HELICAL, 42T

SHAFT, OUTPUT REAR

SHAFT, INPUT

TUBE, VENT 90 -1/4 INCH HOSE

TUBE, VENT 90 -1/4 INCH HOSE

GEAR, 67T

SPROCKET 48T 6-FACE

SHAFT, SHIFT, BELLCRANK

SHAFT, SHIFT, BELLCRANK

Rail, Shift, Shaft

Rail, Shift, Shaft

PLUG, DETENT

RAIL, PARK SHAFT

DOG, ENGAGEMENT, GTO, LOW

PIPE, KNOCK

FORK, SHIFT

DOG, ENGAGEMENT, GTO, HIGH

DOG, ENGAGEMENT, GTO, REV/LOW

FORK, SHIFT

SPROCKET, 23T

SPROCKET, 44T

SUBASM., SWITCH SHAFT

SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#46 & #25)

KIT, GTO, PRIMARY SHIM PACK

SUBASSY BEARING COVER W/SCREWS (#3)

KIT, LUK, INPUT SHAFT SHIM PACK
