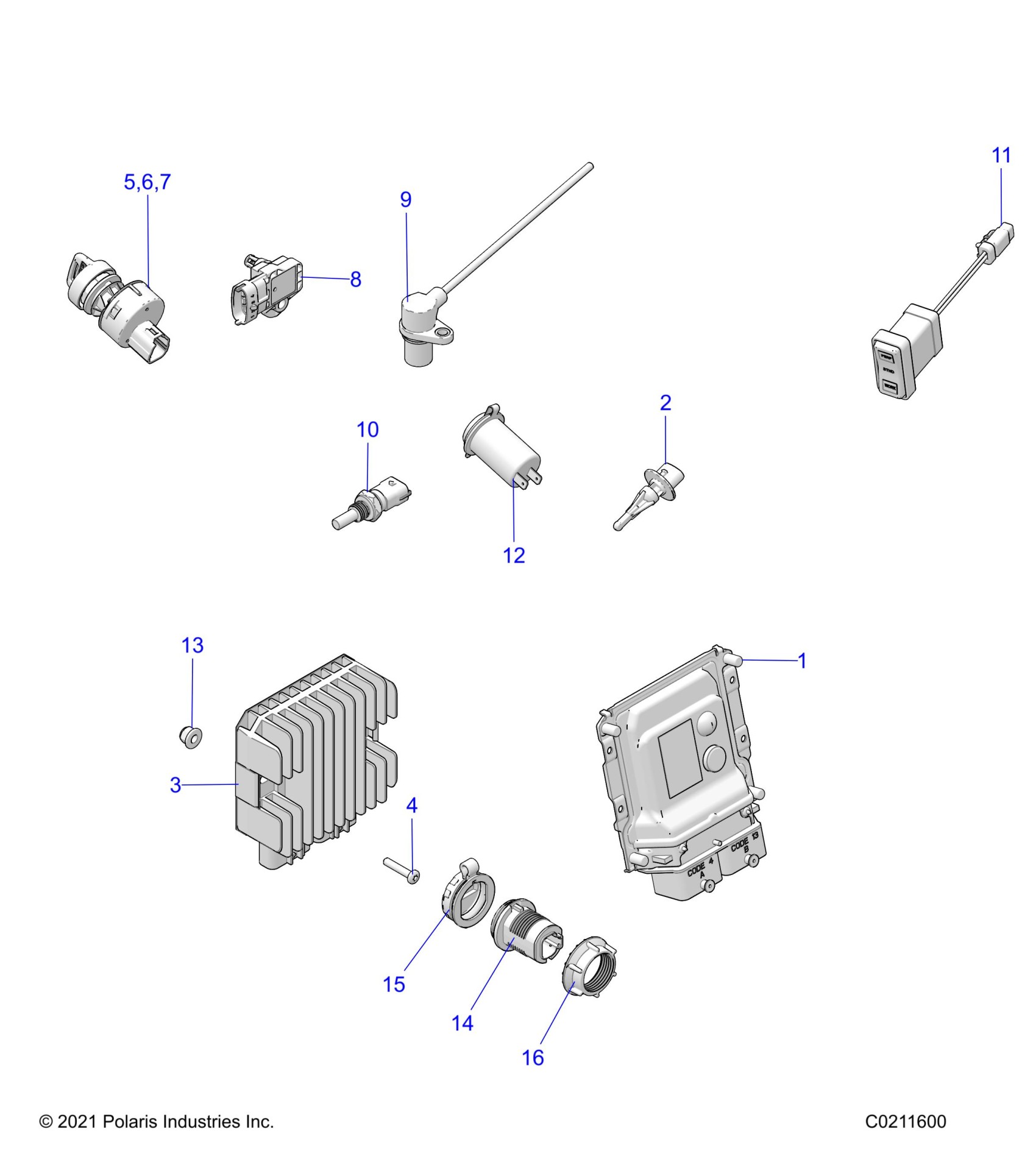

Polaris SPORTSMAN XP 1000 48" ULTIMATE TRAIL PACKAGE (R02) - A24SXZ95AR ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A24SXZ95AR (C0211600) Diagram

#

Description
Price

1

ECM-HARD,ME17,2CYL,250K

4014125

$749.99

2

Sensor, Air Temperature

2410687

$153.79

3

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$156.74

4

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.99

5

KEY COVER-KEYSWITCH

5458344

$13.75

6

SWITCH-KEY,3 POS,SEALED [INCL. 5,7]

4080413

$62.21

7

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

8

SENSOR-TMAP DSS3-TF

2411528

$97.13

8

SCR-SENSOR TMAP

3131753

$3.97

9

Sensor, Crank Position

2411589

$79.37

9

SCREW-HXFL-M6X1.0X16 8.8 ZY3

7518548

$1.59

10

SENSOR-THERMISTER

4010644

$91.97

11

SWITCH-DRIVEMODE,3MODE,ATV

4016507

$134.99

12

RECEPTACLE-POD MNT,12 VOLT

4080487

$36.41

13

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

14

PLUG-HARNESS CHARGE PORT

2415198

$44.51

14

ASM-CHARGE PORT,BASE [INCL. 14-16]

2415295

$44.51

15

CAP-CHARGE PORT

5417215

$12.94

16

NUT-CHARGE PORT

5456622

$44.51
