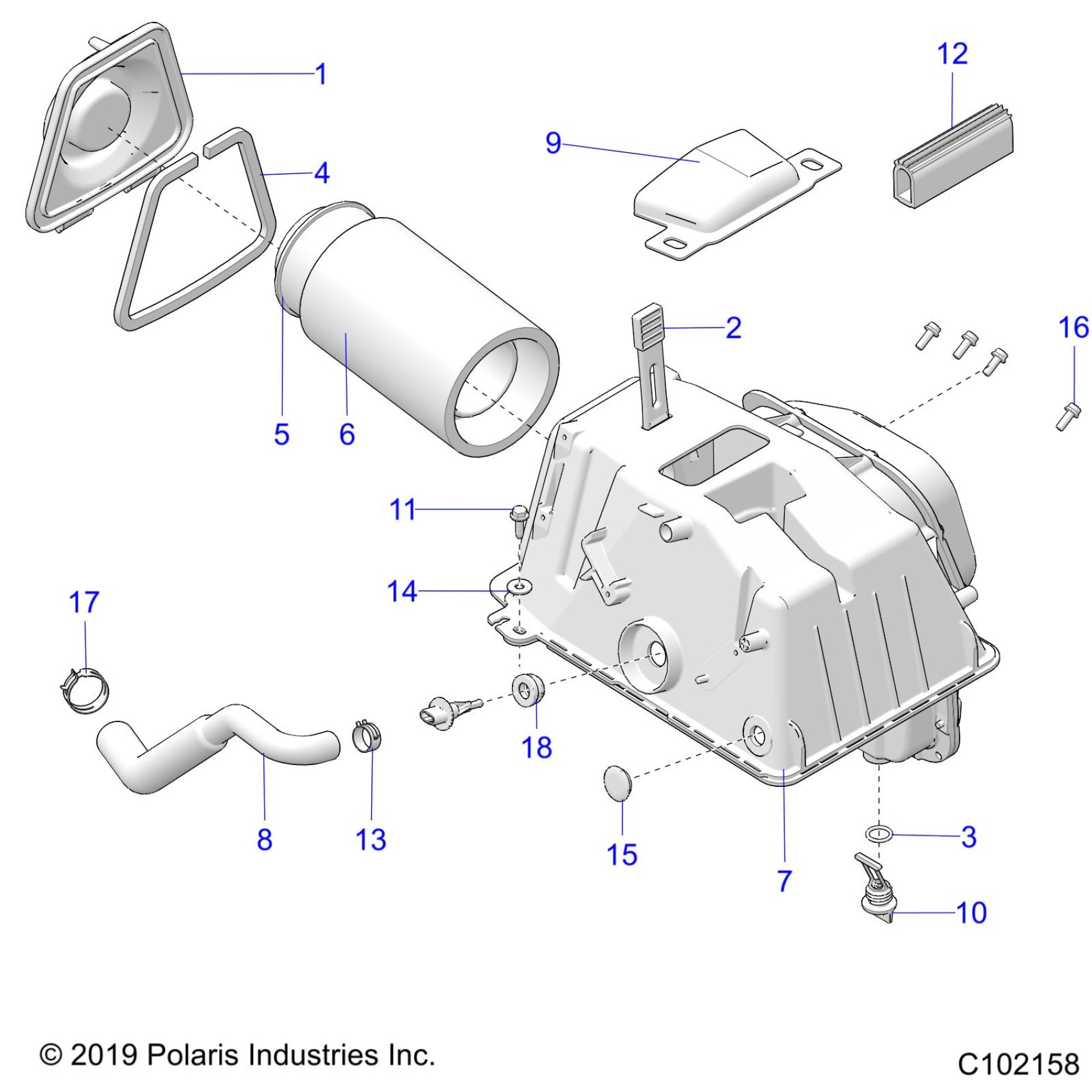

Polaris SPORTSMAN XP 1000 48" TRAIL PACKAGE (R04) - A20SXZ95AG/CAG ENGINE, AIR INTAKE - A20SXZ95AG/CAG (C102158) Diagram

Description

Price

COVER, AIRBOX

5438983

$44.51

STRAP-AIRBOX TOP

5433150

$24.27

O-RING

5414246

$1.60

SEAL, AIRBOX COVER

5813359

$6.87

FILTER, AIR INTAKE

7082101

$27.78

FILTER-HD AIR INTAKE, 208MM HD OPTION

7083114

$47.62

Filter, Precleaner Sleeve

5811633

$11.90

ASM., AIR INTAKE, BOX W/RUNNERS

1240825

$213.00

HOSE, BREATHER, TWIN

5414322

$44.51

HOOD, AIR INTAKE [TO 1/20/2020]

5414252

$44.51

HOOD-AIR INTAKE [FROM 1/20/2020]

5416841

$32.37

PLUG, AIR BOX

5451429

$15.37

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

SEAL-RUBBER 108MM

5522220-108

$6.87

CLAMP, HOSE

7081026

$7.94

Washer, Flat

7555859

$1.19

PLUG-AIR BOX,MUDDER

5415705

$3.22

SCREW

7518803

$3.97

CLAMP, SPRINGBAND, BLACK

7080842

$7.14

Grommet, Air Temp Sensor

5436346

$4.76
