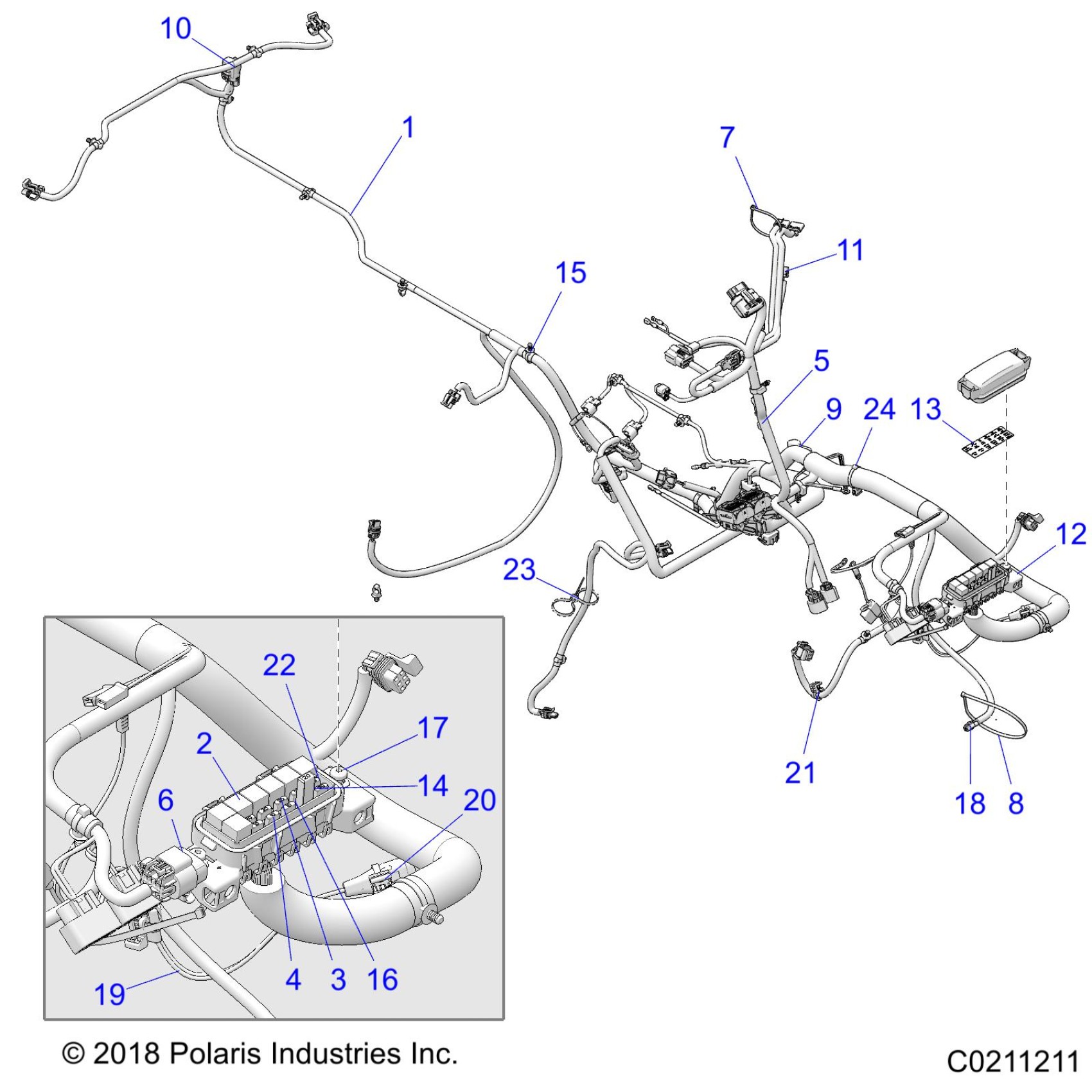

Polaris SPORTSMAN XP 1000 48" TRAIL PACKAGE (R04) - A20SXZ95AG/CAG ELECTRICAL, HARNESS - A20SXZ95AG/CAG (C0211211) Diagram

#

Description
Price

1

HARNESS-MAIN,SPXP ETC,LED

2415099

$1,082.39

2

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

3

FUSE-PARK,20 AMP

2434017

Unavailable

4

FUSE-IGNITION,10 AMP

2434016

$4.79

5

DIODE, 6AMP

2411035

$51.99

6

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

9

DIODE, 6AMP

2410000

$35.99

10

COVER, TAILLIGHT, LED W/CLIP

4016259

$6.39

11

CAP, WINCH CONTACTOR

4014891

$7.99

12

Kit, Fusible Link, .8 MM

2202607

$39.99

13

LABEL, FUSE BOX

7192266

Unavailable

14

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

15

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

16

FUSE-MAIN,30 AMP

2434015

$7.19

17

SCR-M6X1X14,PN/TX,TRI-LOB

7518914

$3.19

18

CAP, WINCH SWITCH

4014890

$8.79

19

PLUG-HARNESS BATTERY CHARGE

2415060

$27.99

20

CLIP-ROUTING

7082073

$27.99

21

CLIP-EDGE, 3-6MM THICKNESS

7082404

$9.59

22

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

23

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

24

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59
